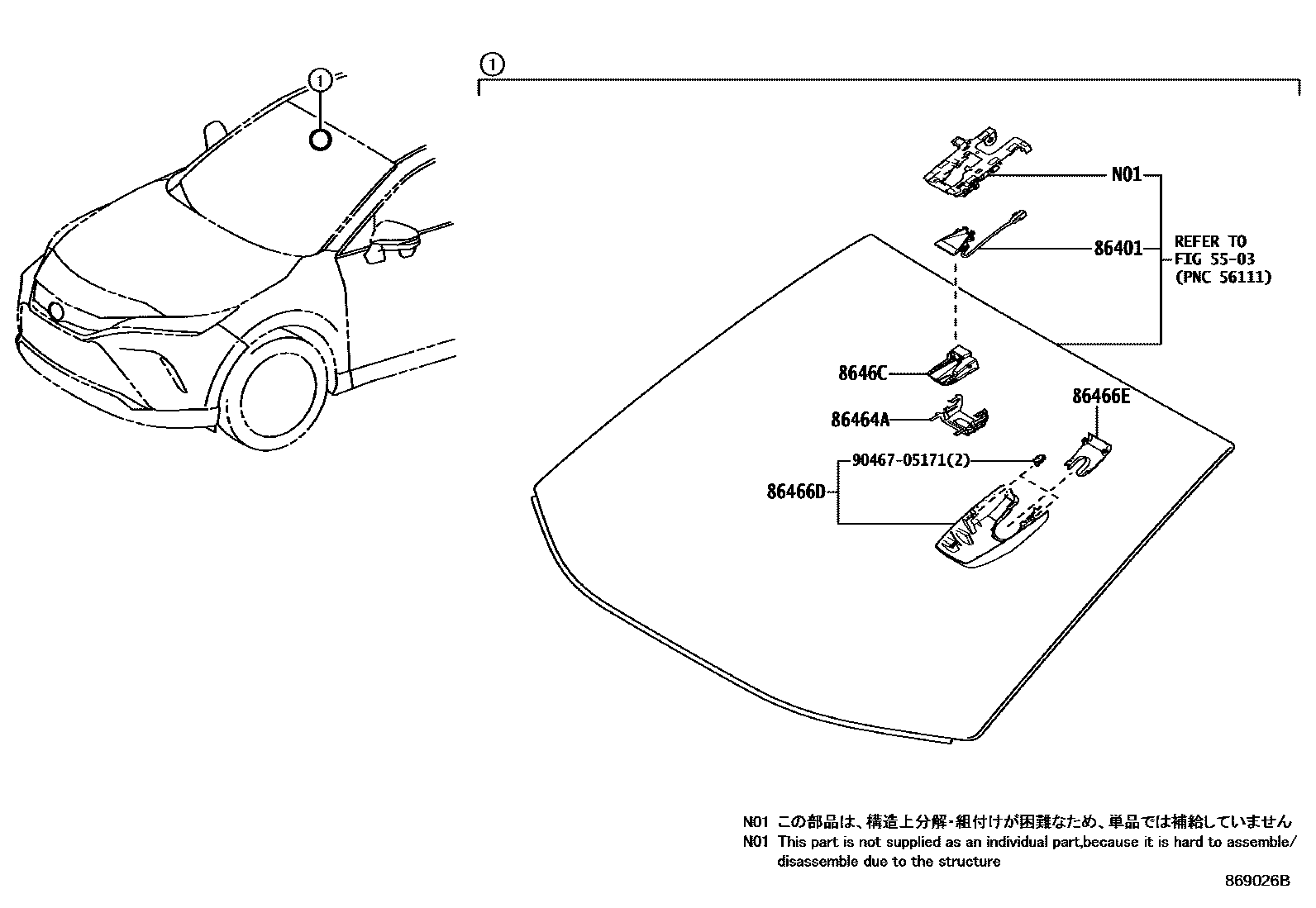

PRE-COLLISION SYSTEM

5503COWL PANEL & WINDSHIELD GLASS

→ Go to FIG 55-03

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-0R010iAXUH85..M;MXUA80..S202111-202408

86464ALATCH, FORWARD RECOGNITION

main86464-0E020iAXUH85..M;MXUA80..S202111-202408

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-0R030iAXUH85..M;MXUA80..S202111-202408

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-0R040iAXUH85..M202111-202408

main86466-0R050iMXUA80..S202111-202408

8646CCAMERA, FORWARD RECOGNITION

main8646C-0E090iAXUH8#,MXUA80202111-202304

*614

main8646C-0E180iAXUH85..M;MXUA80..S202304-202409

*614

main8646C-0E182iAXUH85..G,S;AXUH80,MXUA80..G,M,X202409

*614

9046705171

main90467-05171

7 parts on this diagram · 1 diagram in section
