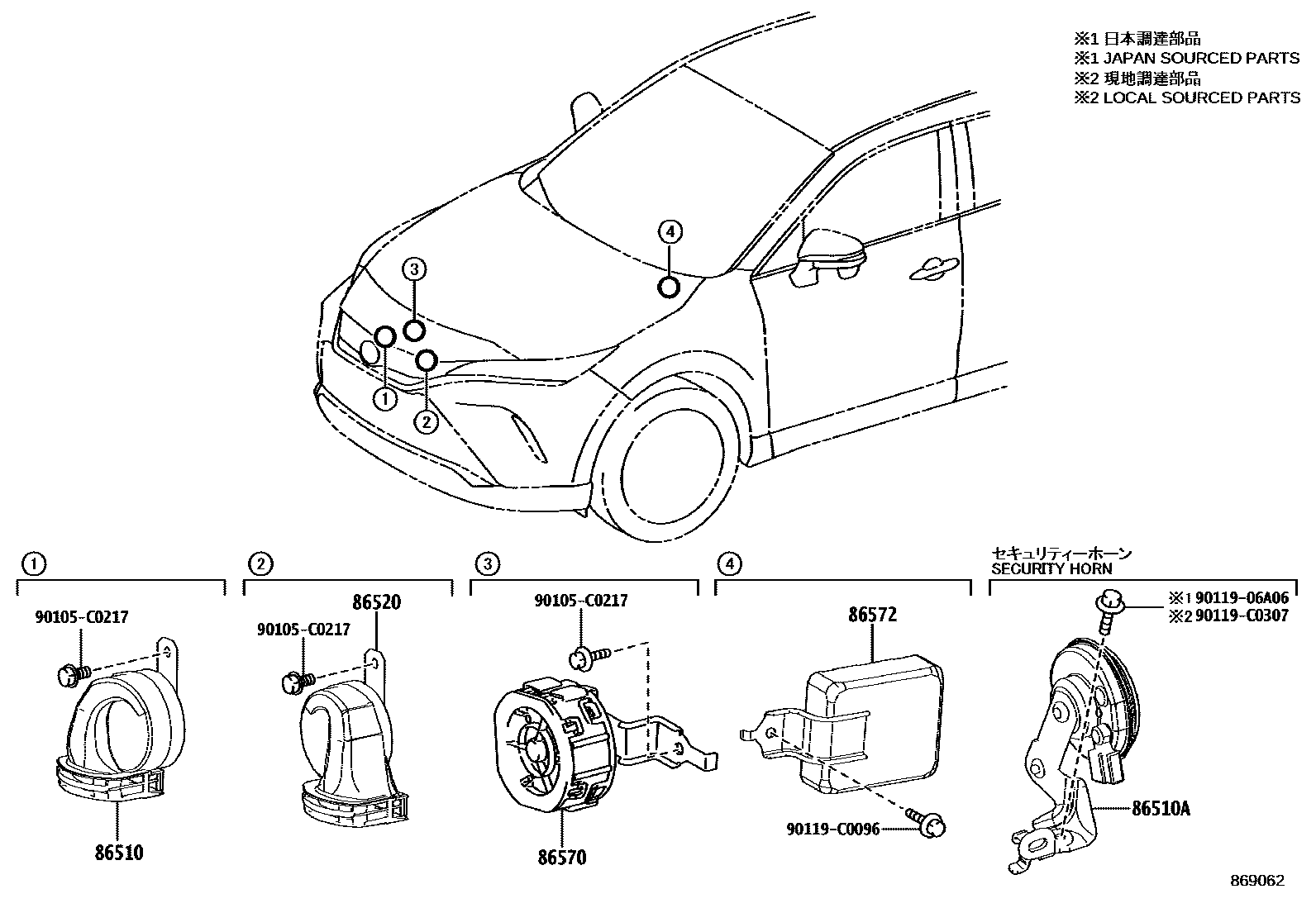

HORN

86510HORN ASSY, HIGH PITCHED

main86510-78020iAXUH85..M;MXUA80..S202111-202408

86510AHORN ASSY, SECURITY

main86560-07030iAXUH85..M;MXUA80..S202111-202408

86520HORN ASSY, LOW PITCHED

main86520-78020iAXUH85..M;MXUA80..S202111-202408

86570SPEAKER ASSY, VEHICLE APPROACHING

main86570-0R010iAXUH85..M202111-202408

86572CONTROLLER, VEHICLE APPROACHING SPEAKER

main86572-0E030iAXUH8#202111-202303

main86572-0E050iAXUH85..M202304-202408

main86572-0E070iAXUH80;AXUH85..G,S202409

90105C0217

main90105-C0217

9011906A06

main90119-06A06

90119C0096

main90119-C0096

90119C0307

main90119-C0307

9 parts on this diagram · 1 diagram in section
