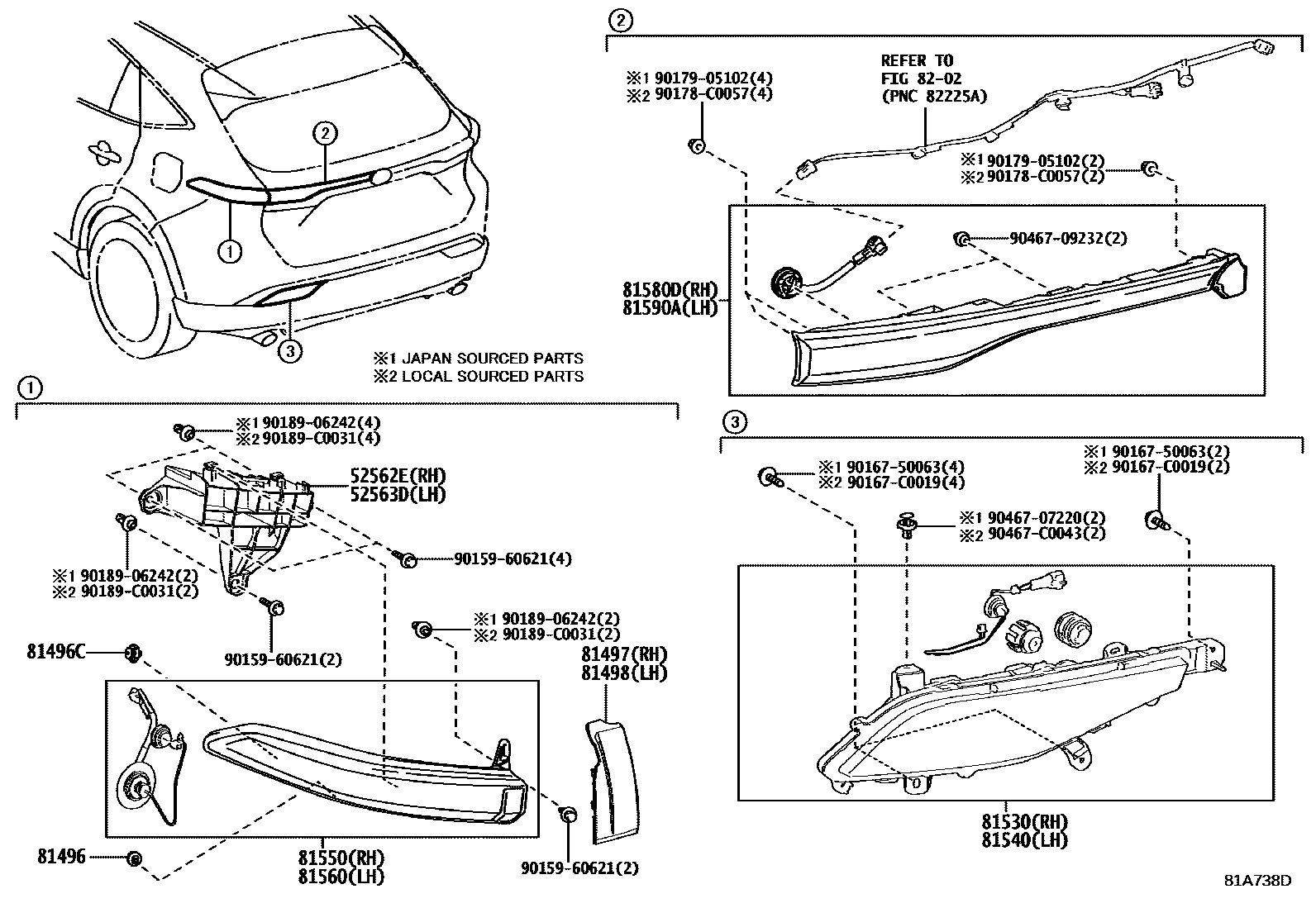

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-0E040iAXUH85..M;MXUA80..S202111-202408

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-0E040iAXUH85..M;MXUA80..S202111-202408

81496GUIDE, REAR COMBINATION LAMP

main81496-02020×2iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

(L)

main81496-52020×2iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

(J)

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main90467-C0019×2iAXUH85..M;MXUA80..S202111-202408

81497COVER, REAR COMBINATION LAMP, RH

main81497-0E060iAXUH85..M;MXUA80..S202111-202408

81498COVER, REAR COMBINATION LAMP, LH

main81498-0E060iAXUH85..M;MXUA80..S202111-202408

81530LAMP ASSY, REAR TURN SIGNAL, RH

main81530-0E010iAXUH85..M;MXUA80..S202111-202408

main81530-0E011iAXUH85..G,S;AXUH80,MXUA80..G,M,X202410

81540LAMP ASSY, REAR TURN SIGNAL, LH

main81540-0E010iAXUH85..M;MXUA80..S202111-202408

main81540-0E011iAXUH85..G,S;AXUH80,MXUA80..G,M,X202410

81550LAMP ASSY, REAR COMBINATION, RH

main81550-0E300iAXUH85..M;MXUA80..S202111-202408

81560LAMP ASSY, REAR COMBINATION, LH

main81560-0E300iAXUH85..M;MXUA80..S202111-202408

81580DLAMP ASSY, REAR, RH

main81580-0E240iAXUH85..M;MXUA80..S202111-202408

81590ALAMP ASSY, REAR, LH

main81590-0E240iAXUH85..M;MXUA80..S202111-202408

8202

9015960621

main90159-60621

9016750063

main90167-50063

90167C0019

main90167-C0019

90178C0057

main90178-C0057

9017905102

main90179-05102

9018906242

main90189-06242

90189C0031

main90189-C0031

9046707220

main90467-07220

9046709232

main90467-09232

90467C0043

main90467-C0043

23 parts on this diagram · 1 diagram in section
