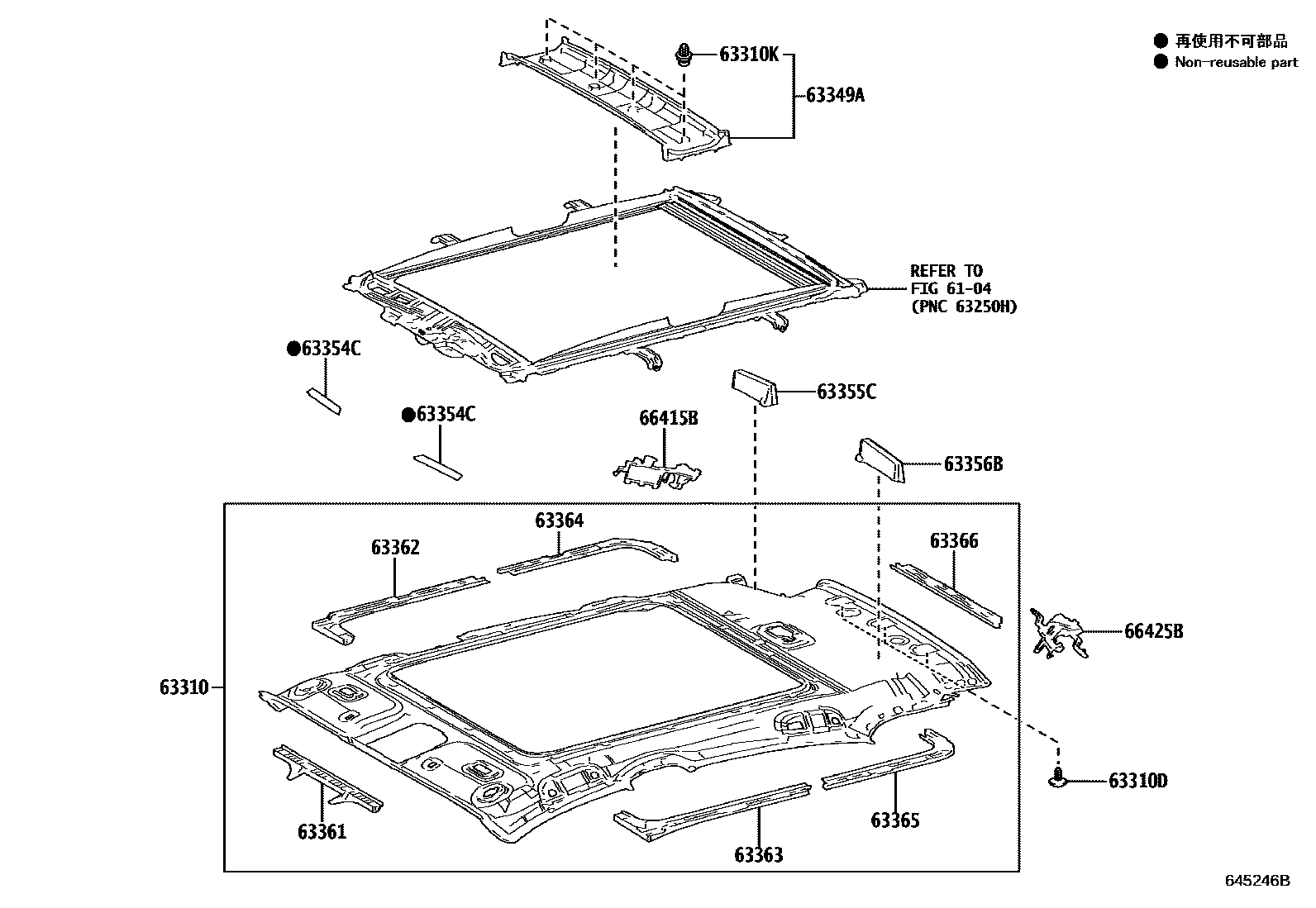

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1

6104

63310HEADLINING ASSY, ROOF

main63310-0E590-B0iMXUA80..X202111

LT. GRAY,TRIM1#,2#

main63310-0E600-B0iMXUA80..G;AXUH85..G,S202111

LT. GRAY,TRIM1#,2#,4#

63310DCLIP, ROOF HEADLINING

main90467-C0016-B1×3iAXUH85..G,S;AXUH80,MXUA80..G,M202111

LT.GRAY,TRIM1#,2#

63310KCLIP

main62217-13010×4iMXUA80..S202111-202408

63349AGARNISH, ROOF HEADLINING, REAR

main63349-0E030iMXUA80..S202111-202408

63354CPAD, ROOF HEADLINING FRONT SIDE

main63354-0E050×2iAXUH85..M;MXUA80..S202111-202408

63355CPAD, ROOF HEADLINING, RH

main63355-0E050iAXUH85..M;MXUA80..S202111-202408

63356BPAD, ROOF HEADLINING, LH

main63356-0E070iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

63361SUPPORT, ROOF HEADLINING, NO.1

main63361-0E060iAXUH80,MXUA80..M,X202111

main63361-0E070iMXUA80..G;AXUH85..G,S202111

63362SUPPORT, ROOF HEADLINING, NO.2

main63362-0E030iAXUH85..M202111-202408

main63362-0E040iMXUA80..S202111-202408

63363SUPPORT, ROOF HEADLINING, NO.3

main63363-0E010iAXUH80,MXUA80..M,X202111

main63363-0E020iMXUA80..S202111-202408

63364SUPPORT, ROOF HEADLINING, NO.4

main63364-0E010iMXUA80..S202111-202408

63365SUPPORT, ROOF HEADLINING, NO.5

main63365-0E060iMXUA80..S202111-202408

63366SUPPORT, ROOF HEADLINING, NO.6

main63366-0E060iMXUA80..S202111-202408

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66415-0E090iAXUH85..M;MXUA80..S202111-202408

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66425-0E090iAXUH85..M;MXUA80..S202111-202408

16 parts on this diagram · 2 diagrams in section
