Toyota 524320 — ROOF HEADLINING & SILENCER PAD
6104ROOF PANEL & BACK WINDOW GLASS
63310DCLIP, ROOF HEADLINING
63310KCLIP
63349AGARNISH, ROOF HEADLINING, REAR
63354CPAD, ROOF HEADLINING FRONT SIDE
63355CPAD, ROOF HEADLINING, RH
63356BPAD, ROOF HEADLINING, LH
63364SUPPORT, ROOF HEADLINING, NO.4
63365SUPPORT, ROOF HEADLINING, NO.5
63366SUPPORT, ROOF HEADLINING, NO.6
66415BSPACER, SIDE RAIL, REAR NO.2 RH
66425BSPACER, SIDE RAIL, REAR NO.2 LH

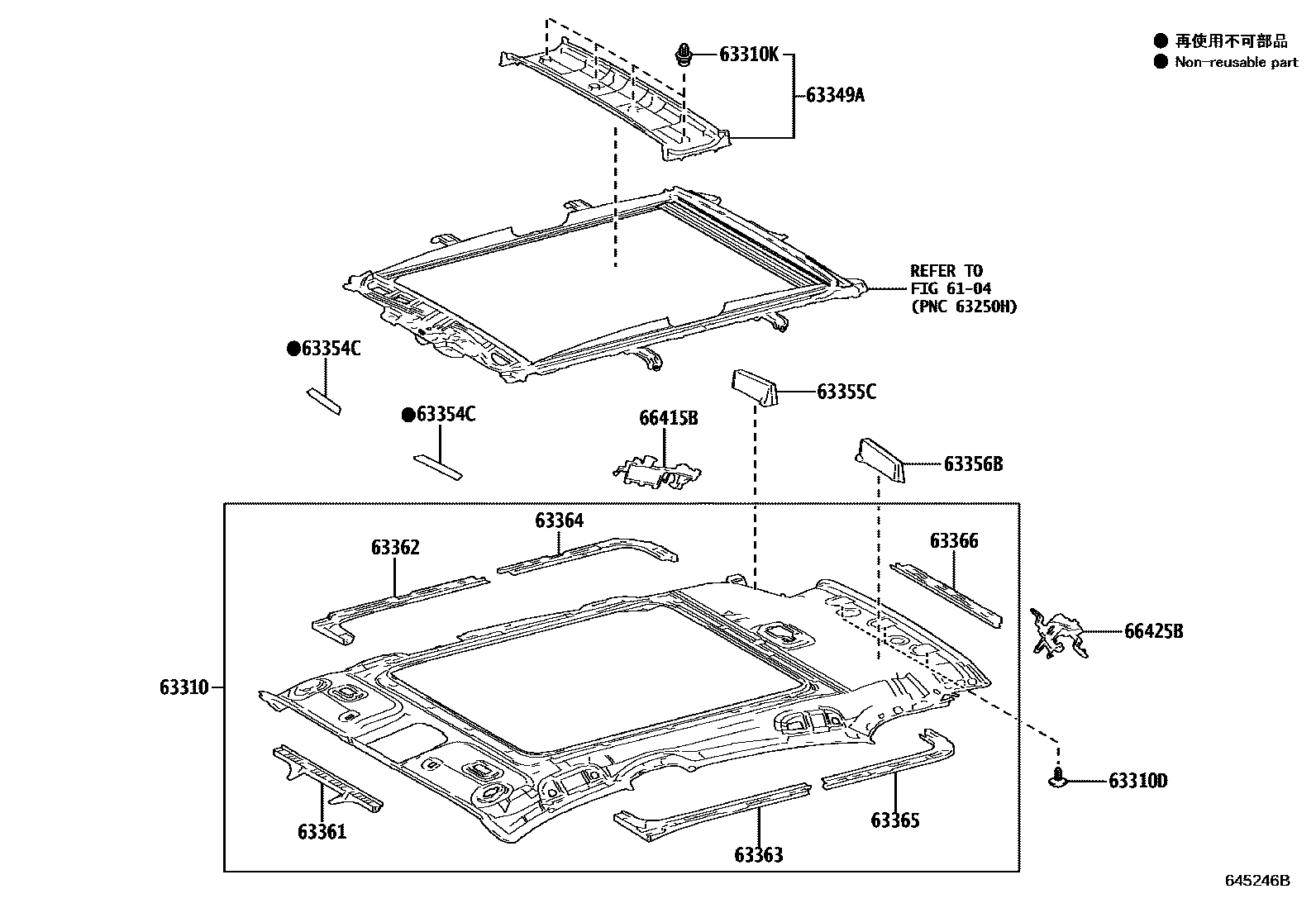

16 parts on this diagram · 2 diagrams in section
ROOF HEADLINING & SILENCER PAD for Toyota 524320
This section contains 16 genuine Toyota parts for the ROOF HEADLINING & SILENCER PAD system of the Toyota 524320. Key components include: ROOF PANEL & BACK WINDOW GLASS, HEADLINING ASSY, ROOF, CLIP, ROOF HEADLINING, CLIP, GARNISH, ROOF HEADLINING, REAR.
