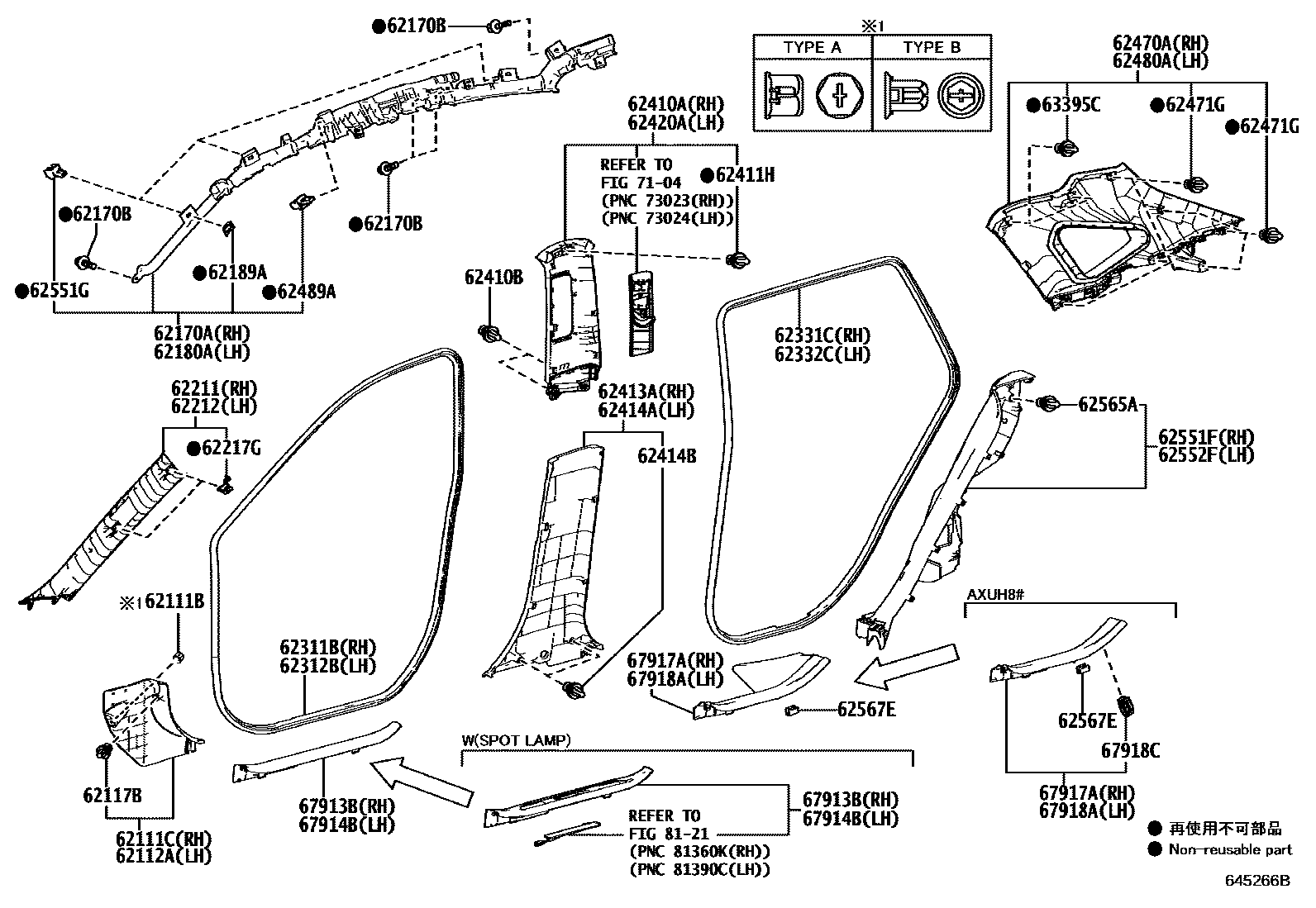

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111BCLIP(FOR COWL SIDE TRIM)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM1#,2#,4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM1#,2#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LT. GRAY,TRIM1#,2#,4#
LT. GRAY,TRIM1#,2#,4#
62212GARNISH, FRONT PILLAR, LH
LT. GRAY,TRIM1#,2#,4#
LT. GRAY,TRIM1#,2#,4#
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331CWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332CWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
LT. GRAY,TRIM1#,2#,4#
62410BCLIP
62411HCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM1#,2#,4#
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM1#,2#,4#
62414BCLIP (FOR CENTER LOWER GARNISH)
62420AGARNISH ASSY, CENTER PILLER, LH
LT. GRAY,TRIM1#,2#,4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
LT.GRAY,TRIM1#,2#,4#
62471GCLIP, ROOF SIDE INNER GARNISH
62480AGARNISH ASSY, ROOF SIDE, INNER LH
LT.GRAY,TRIM1#,2#,4#
62489ACLIP, ROOF SIDE INNER GARNISH
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
62551GCLIP
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
63395CCLIP(FOR ROOF SIDE INNER GARNISH)
67913BPLATE, FRONT DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67914BPLATE, FRONT DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#,2#,4#
67918CCLIP(FOR REAR SCUFF PLATE)
(J)
(L)
7104
8121
39 parts on this diagram · 1 diagram in section
