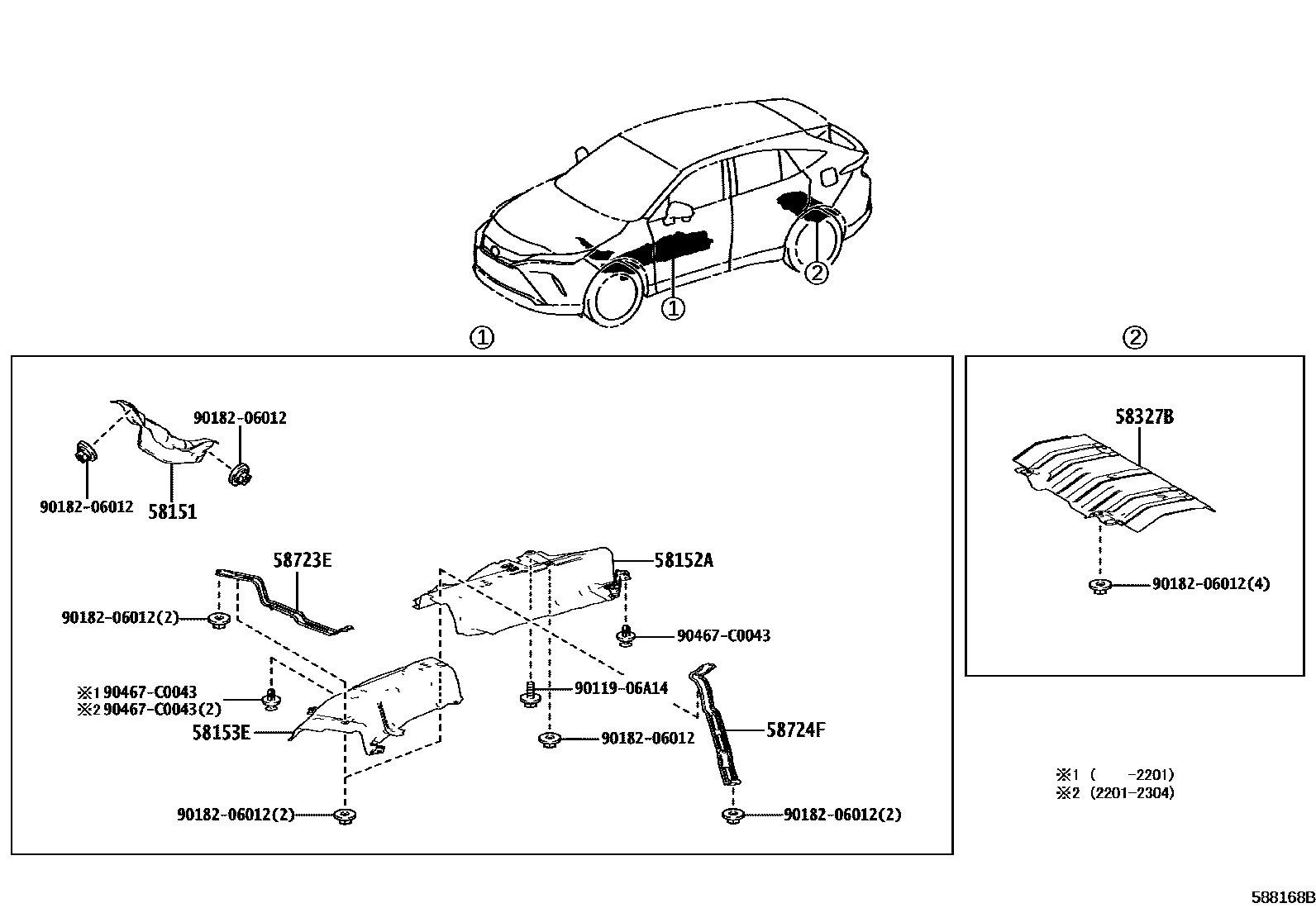

FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0R030iAXUH85..M;MXUA80..S202111-202408

58152AINSULATOR, FRONT FLOOR HEAT, NO.1 LOWER

main58152-0R080iAXUH85..M202111-202408

58153EINSULATOR, FRONT FLOOR HEAT, NO.2

main58153-0R030iAXUH8#202111-202201

main58153-0R031iAXUH85..M202201-202408

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-0R040iAXUH85..M;MXUA80..S202111-202408

58723ECUSHION, ENGINE SERVICE COVER

main58723-0R090iAXUH85..M202111-202408

58724FCUSHION, ENGINE SERVICE COVER, NO.2

main58724-0R090iAXUH85..M202111-202408

9011906A14

main90119-06A14

9018206012

main90182-06012

90467C0043

main90467-C0043

9 parts on this diagram · 2 diagrams in section
