Toyota 524320 — RADIATOR GRILLE
5201FRONT BUMPER & BUMPER STAY
53101GRILLE SUB-ASSY, RADIATOR
53115BBRACKET, RADIATOR GRILLE
53121AMOULDING, RADIATOR GRILLE
7501EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)
8408CRUISE CONTROL (AUTO DRIVE)
90109C0022
9016750063
90167C0019
9017906362
9046707215
9046707220
9046708229
90467C0017C0
90467C0043

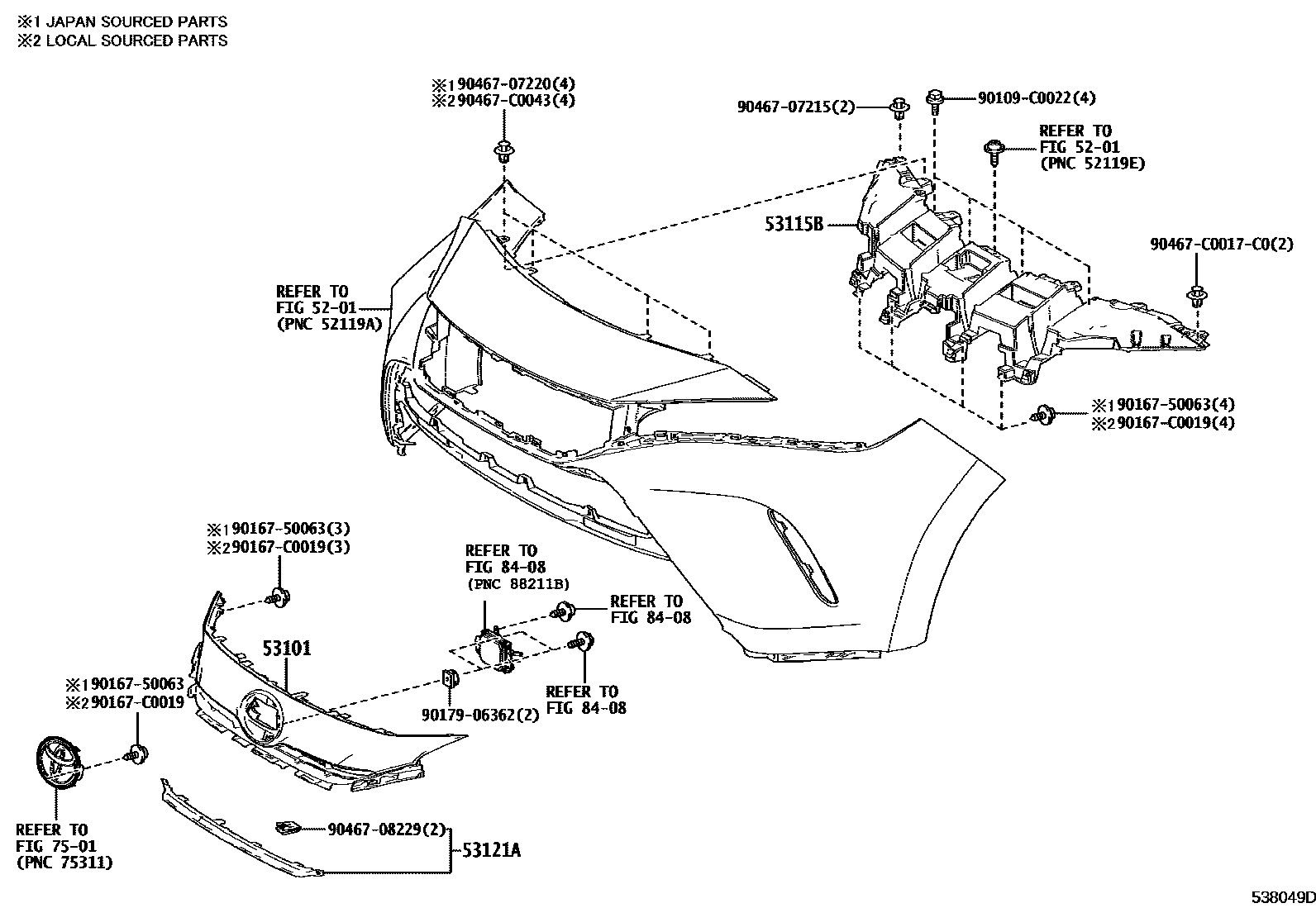

15 parts on this diagram · 1 diagram in section
RADIATOR GRILLE for Toyota 524320
This section contains 15 genuine Toyota parts for the RADIATOR GRILLE system of the Toyota 524320. Key components include: FRONT BUMPER & BUMPER STAY, GRILLE SUB-ASSY, RADIATOR, BRACKET, RADIATOR GRILLE, MOULDING, RADIATOR GRILLE, EMBLEM & NAME PLATE (EXTERIOR & INTERIOR).
