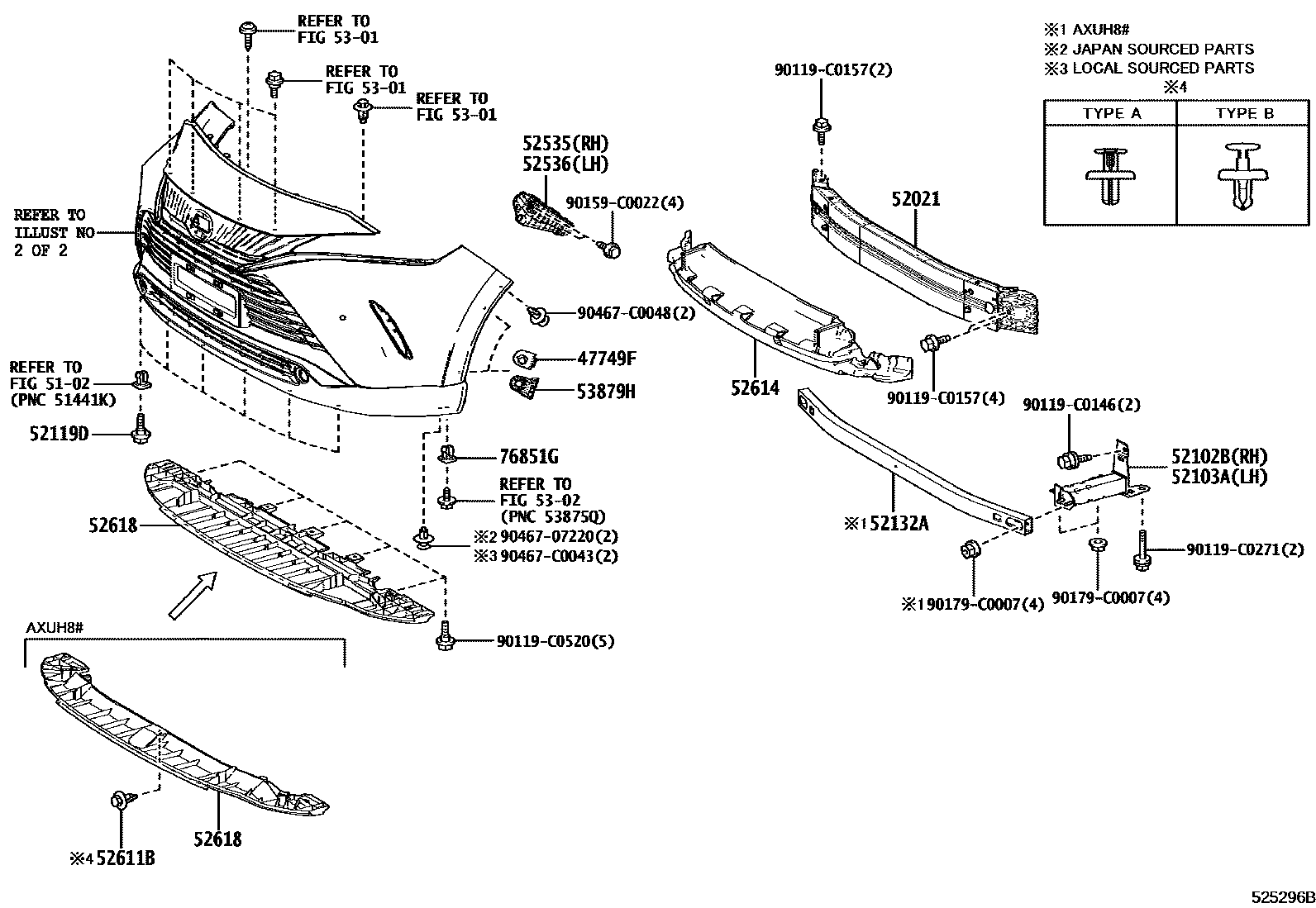

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

47749FCLIP, PIN HOLD

main47749-02010iMXUA80..S202307-202408

main47749-33030iAXUH85..M202111-202409

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0R110iAXUH85..M;MXUA80..S202111-202408

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-0R050iMXUA80..S202111-202408

main52102-0R060iAXUH85..M202111-202408

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-0R050iMXUA80..G,M,X202111-202408

main52103-0R060iAXUH80;AXUH85..G,S202111-202408

52119DSCREW, NO.1

main90159-C0049iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-0R080iAXUH85..M202111-202408

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0E090iAXUH85..M;MXUA80..S202111-202408

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0E070iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111-202408

52611BCLIP, FRONT BUMPER ENERGY ABSORBER

main90467-07215iAXUH85..M202111-202408

TYPE A:REFER ILLUST.

main90467-07220iAXUH85..M202111-202408

(J),T/P B:REF.ILLUST

main90467-C0043iAXUH85..M202111-202408

(L),T/P B:REF.ILLUST

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-0E010iAXUH85..M;MXUA80..S202111-202408

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0E080iMXUA80..G,M,X202111-202408

main52618-0E090iAXUH85..M202111-202408

5301

5302

53879HRETAINER, FRONT FENDER LINER

main53879-02050iAXUH80,MXUA80..M202307-202408

main53879-33030iAXUH80,MXUA80..M202111-202409

76851GGROMMET, SCREW, NO.1

main90189-C0020iAXUH85..M;MXUA80..S202111-202408

90119C0146

main90119-C0146

90119C0157

main90119-C0157

90119C0271

main90119-C0271

90119C0520

main90119-C0520

90159C0022

main90159-C0022

90179C0007

main90179-C0007

9046707220

main90467-07220

90467C0043

main90467-C0043

90467C0048

main90467-C0048

25 parts on this diagram · 2 diagrams in section
