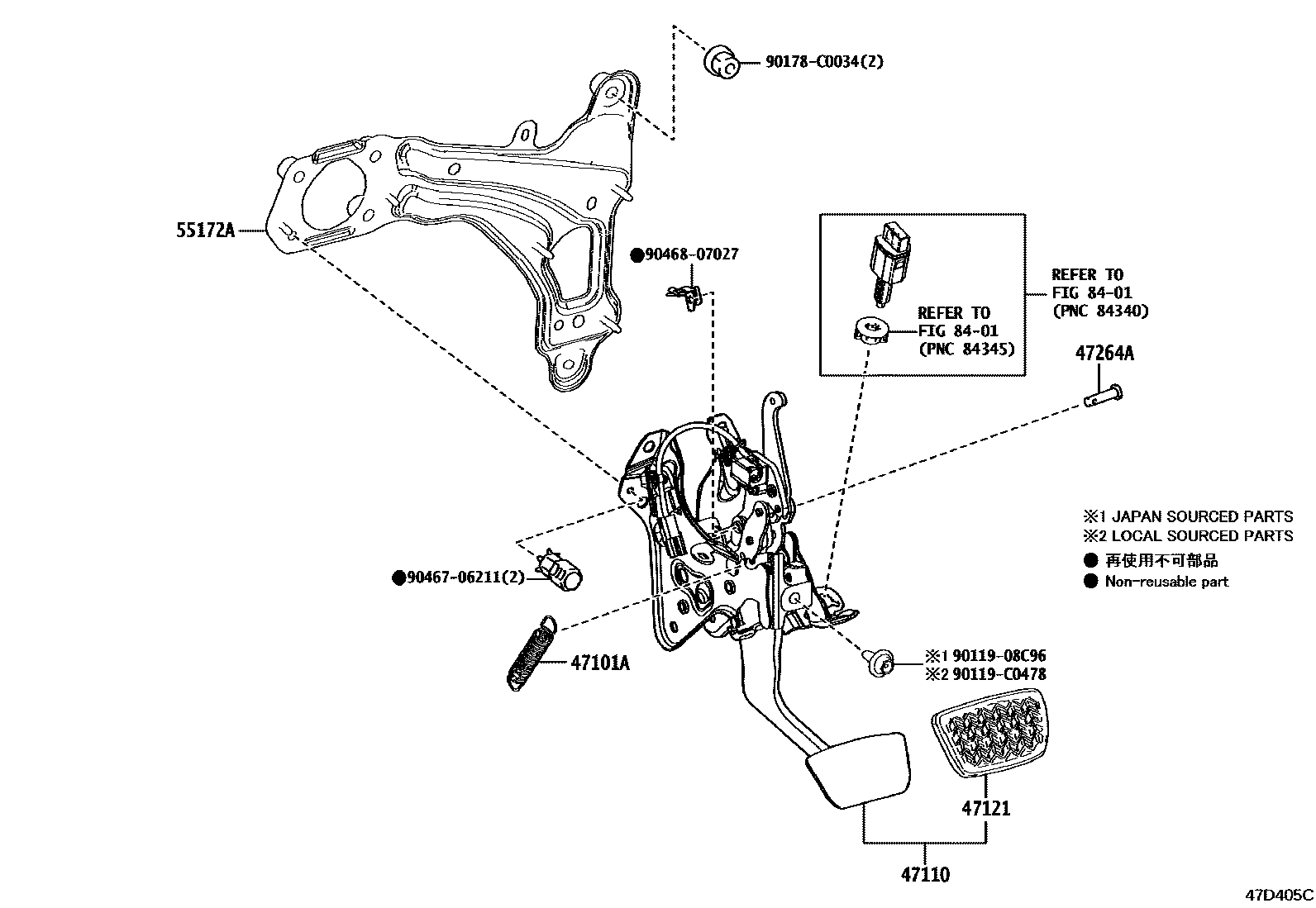

BRAKE PEDAL & BRACKET

0001 1 0002 1

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0R130iMXUA80..S202111-202408

main47110-0R170iAXUH85..M202111-202408

47121PAD, BRAKE PEDAL

main47121-48010iAXUH85..G,S;AXUH80,MXUA80..G,M,X202111

47264APIN(FOR PUSH ROD)

main90240-06028iMXUA80..S202111-202408

main90240-08082iAXUH85..M202111-202408

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0R020iAXUH85..M;MXUA80..S202111-202408

8401

9011908C96

main90119-08C96

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211

9046807027

main90468-07027

10 parts on this diagram · 2 diagrams in section
