OIL COOLER & TUBE (HEV OR BEV OR FCEV)

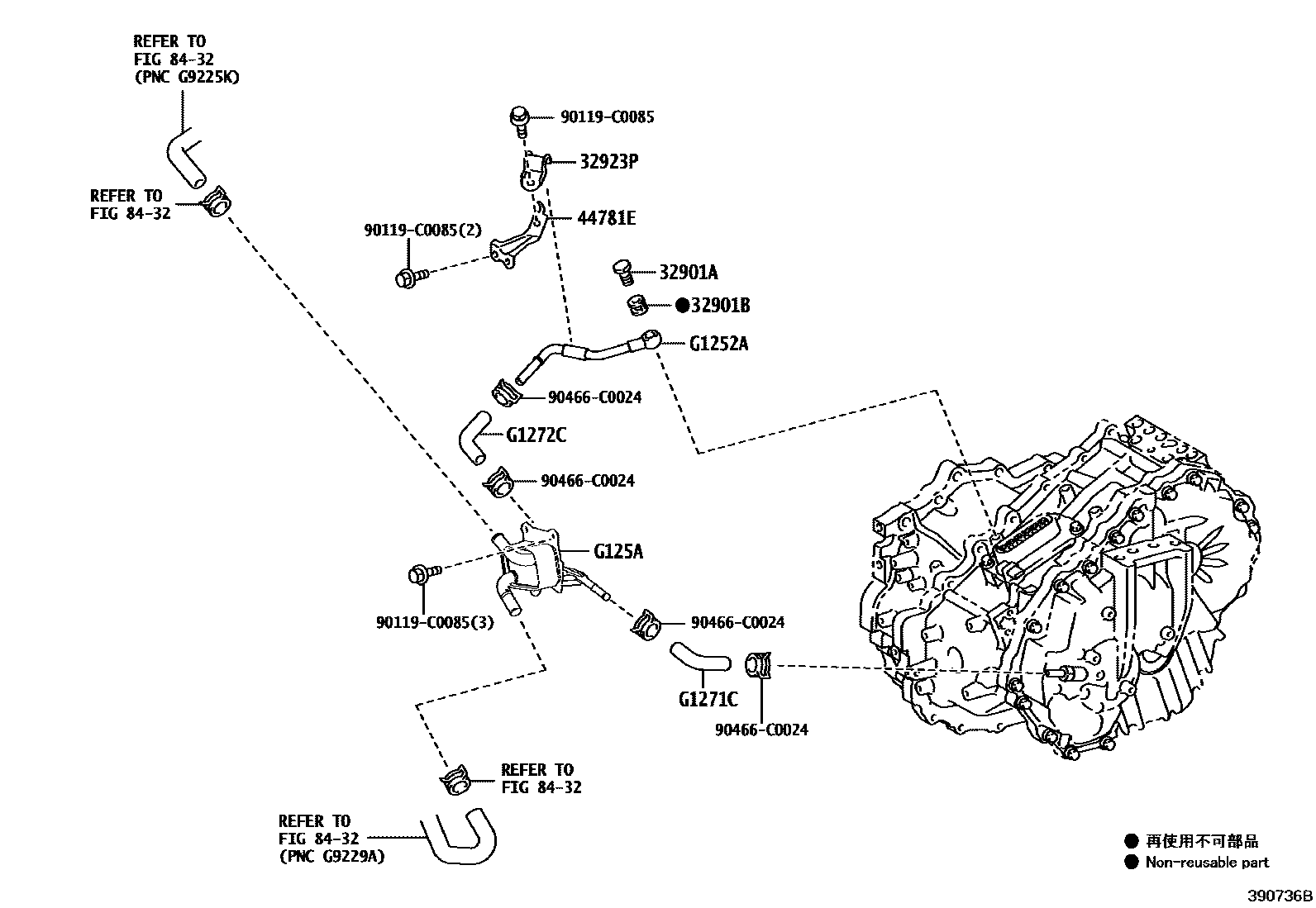

Parts diagram

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039i202111-202408

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037i202111-202408

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040i202111-202408

44781EBRACKET, HOSE

main44781-07010i202111-202408

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG12520R020i202111-202408

G125ACOOLER, MOTOR COOLING

mainG125A0R010i202111-202408

G1271CHOSE, MOTOR COOLING, NO.1

mainG127107010i202111-202408

G1272CHOSE, MOTOR COOLING, NO.2

mainG127207010i202111-202408

90119C0085

main90119-C0085

90466C0024

main90466-C0024

11 parts on this diagram · 1 diagram in section
