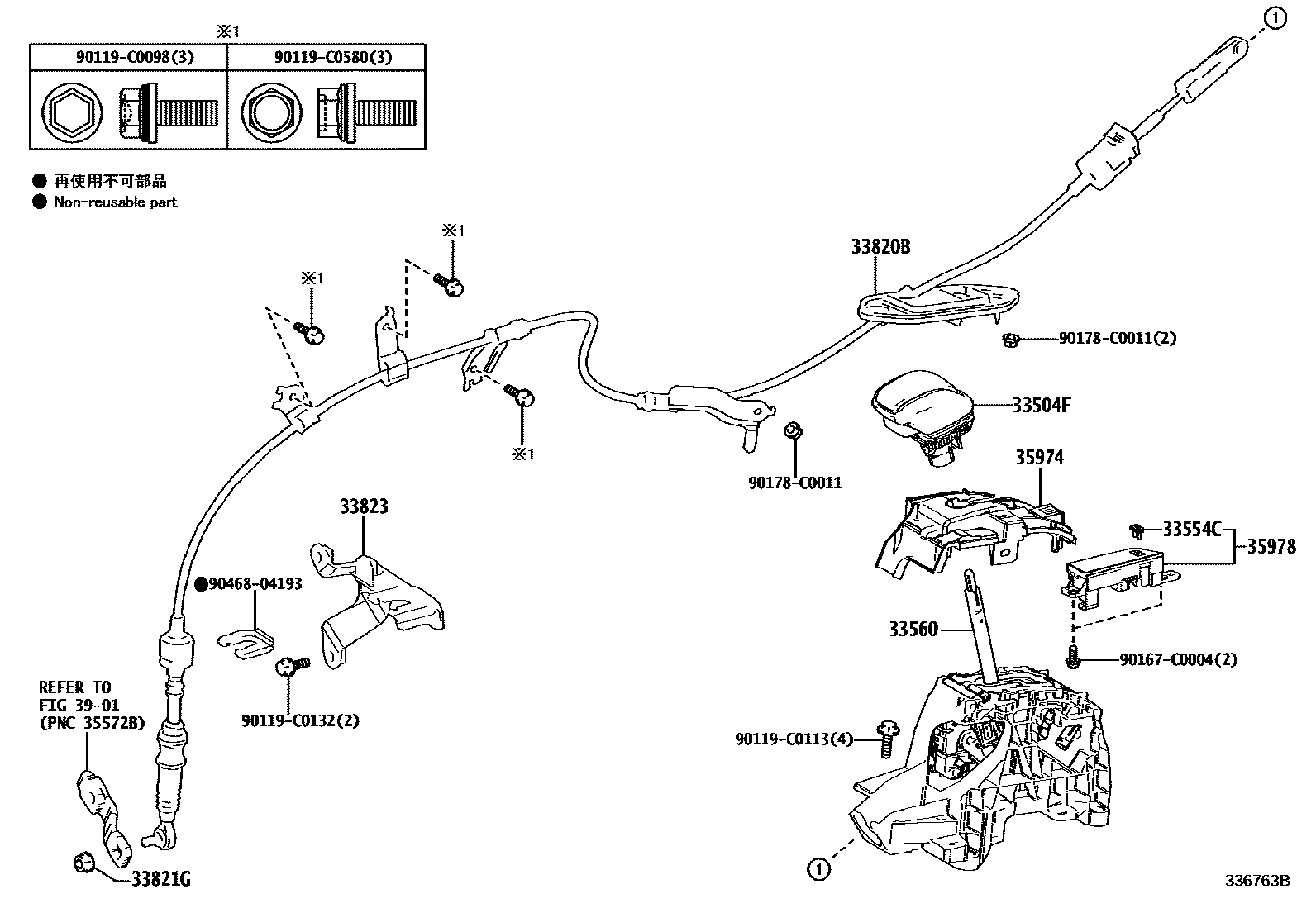

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-0R140-C0iMXUA80..X202111

BLACK,TRIM1#,2#

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-0E150iAXUH85..M;MXUA80..S202111-202408

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-0R100iAXUH85..M202111-202408

main33560-F4110iMXUA80..S202111-202408

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0E210iMXUA80..G,M,X202111

main33820-0E220iAXUH80202111

main33820-0E230iAXUH85..M202111-202408

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0034iAXUH85..M202111-202408

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-0R120iAXUH85..M202111-202408

main33823-F4040iMXUA80..S202111-202408

35974HOUSING, POSITION INDICATOR, LOWER

main35974-0E120iAXUH85..M;MXUA80..S202111-202408

35978INDICATOR, SHIFT POSITION

main35978-0E160iMXUA80202111-202304

main35978-0E170iAXUH85..M202111-202408

main35978-0E220iMXUA80..S202304-202408

3901

90119C0098

main90119-C0098

90119C0113

main90119-C0113

90119C0132

main90119-C0132

90119C0580

main90119-C0580

90167C0004

main90167-C0004

90178C0011

main90178-C0011

9046804193

main90468-04193

16 parts on this diagram · 3 diagrams in section
