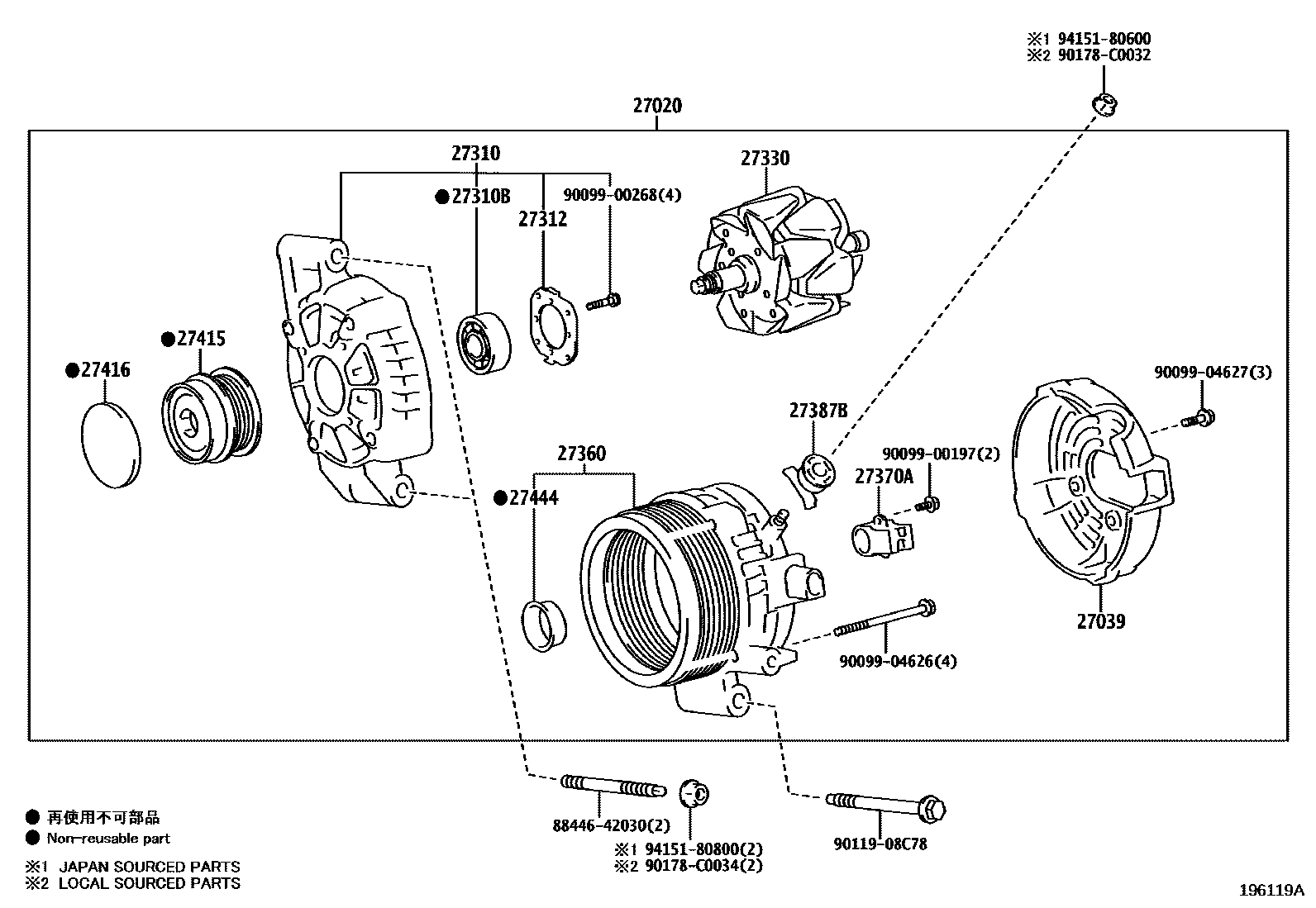

ALTERNATOR

0001 112V 130A 0002 112V 130A

27020ALTERNATOR ASSY

main27060-F2050iM20DFKS..MXUA80202111-202304

12V 130A

main27060-F2200iM20DFKS..MXUA80..S202304-202408

12V 130A

27039COVER, ALTERNATOR REAR END

main27039-0C180iM20DFKS..MXUA80..S202111-202408

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-F2040iM20DFKS..MXUA80202111-202304

main27310-F2160iM20DFKS..MXUA80..S202304-202408

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90068-10033iM20DFKS..MXUA80..S202304-202408

main90068-10050iM20DFKS..MXUA80202111-202304

27312PLATE, RETAINER

main27312-0M070iM20DFKS..MXUA80..S202111-202408

27330ROTOR ASSY, ALTERNATOR

main27330-F2040iM20DFKS..MXUA80..G,M,X202111

27360COIL ASSY, ALTERNATOR

main27360-F2040iM20DFKS..MXUA80..S202111-202408

27370AHOLDER ASSY, ALTERNATOR BRUSH

main27370-0T030iM20DFKS..MXUA80..S202111-202408

27387BINSULATOR, ALTERNATOR TERMINAL

main27387-0H110iM20DFKS..MXUA80..S202111-202408

27415PULLEY, ALTERNATOR W/CLUTCH

main27415-F2040iM20DFKS..MXUA80202111-202304

27416CAP, ALTERNATOR PULLEY

main27416-F0010iM20DFKS..MXUA80202111-202304

27444PACKING, ALTERNATOR BEARING COVER

main27444-0Y180iM20DFKS..MXUA80..S202111-202408

8844642030BOLT, IDLE PULLEY

main88446-42030

9009900197

main90099-00197

9009900268

main90099-00268

9009904626

main90099-04626

9009904627

main90099-04627

9011908C78

main90119-08C78

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9415180600

main94151-80600

9415180800

main94151-80800

22 parts on this diagram · 2 diagrams in section
