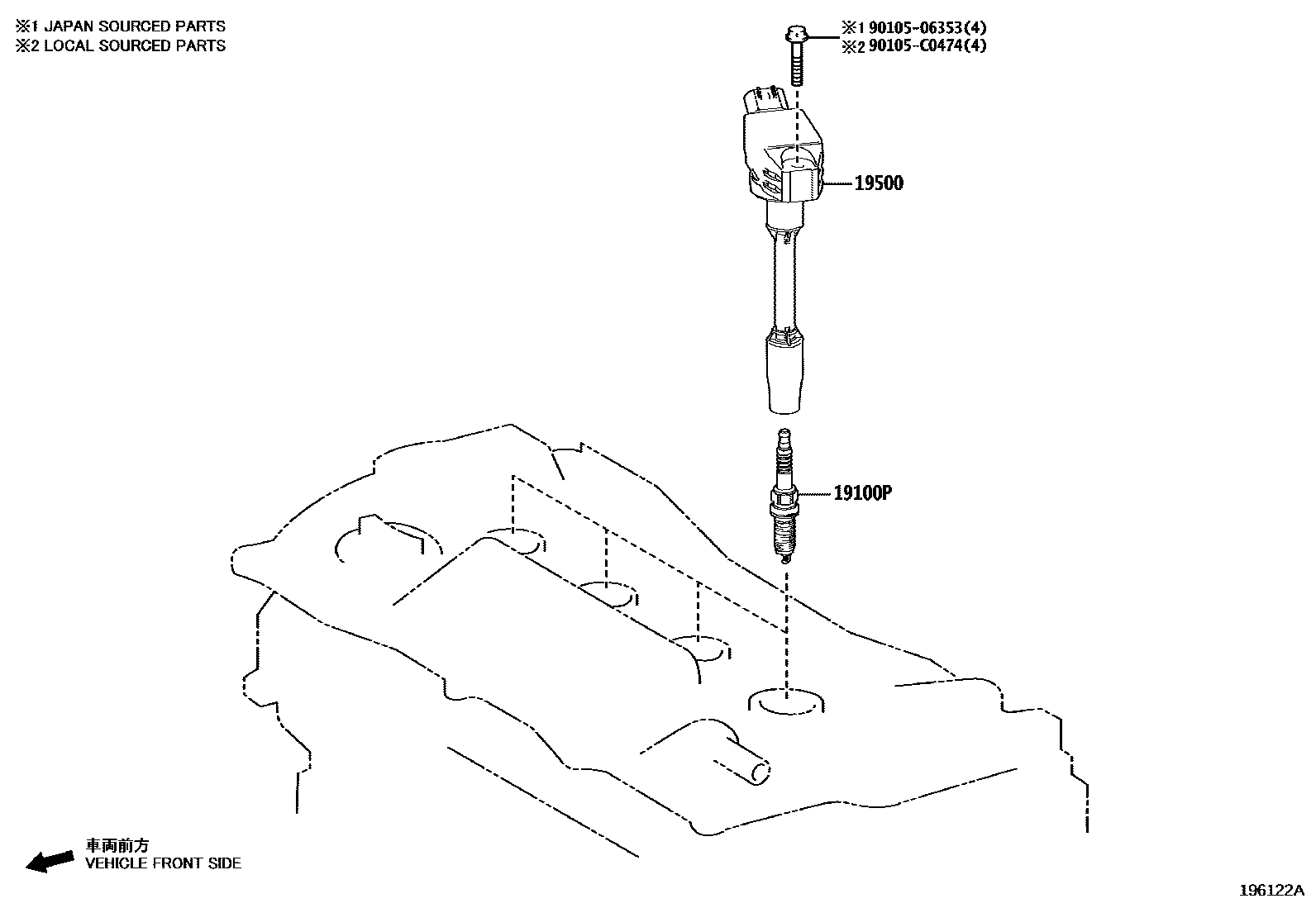

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01297×4iM20DFKS..MXUA80..S202111-202408

FC20HR-Q8

main90919-C1011×4iA25FFXS..AXUH85..M202111-202408

DILKAR6T8

19500COIL ASSY, IGNITION

main90919-C2009×4iM20DFKS..MXUA80..S202111-202408

main90919-C2010×4iA25FFXS..AXUH80;A25FFXS..AXUH85..G,S202111

9010506353

main90105-06353

90105C0474

main90105-C0474

4 parts on this diagram · 2 diagrams in section
