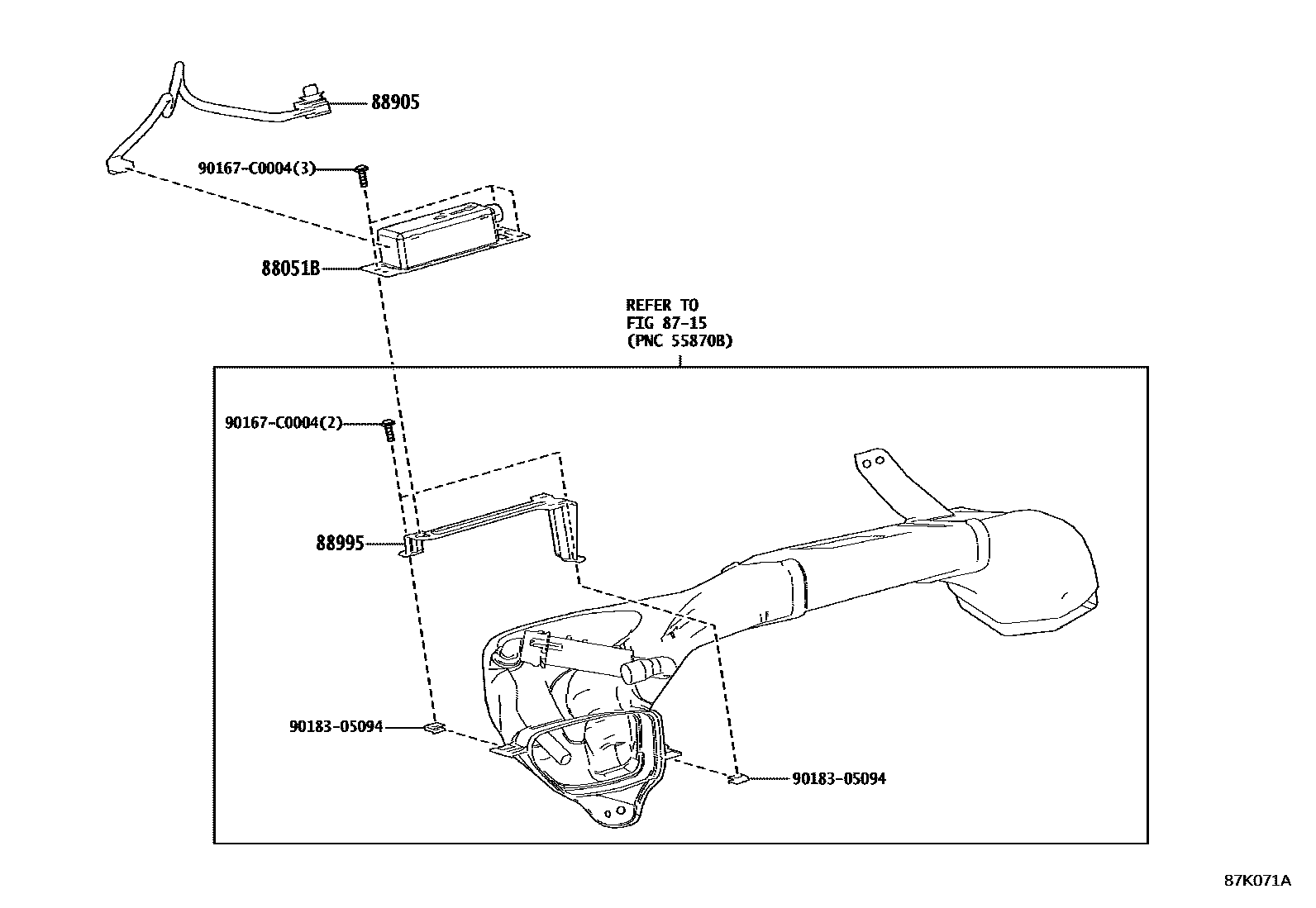

AIR PURIFIER OR ION GENERATOR

8715

88051BGENERATOR SUB-ASSY, ION, NO.1

main88051-46020iAXUH79,SXUA75..G202108-202405

88905WIRE SUB-ASSY, AIR PURIFIER, NO.1

main82144-0E350iAXUH79,SXUA75..G202108-202405

88995BRACKET,ION GENERATOR, NO.1

main88995-0E020iAXUH79,SXUA75..G202108-202405

90167C0004

main90167-C0004

9018305094

main90183-05094

6 parts on this diagram · 1 diagram in section
