NAVIGATION & FRONT MONITOR DISPLAY

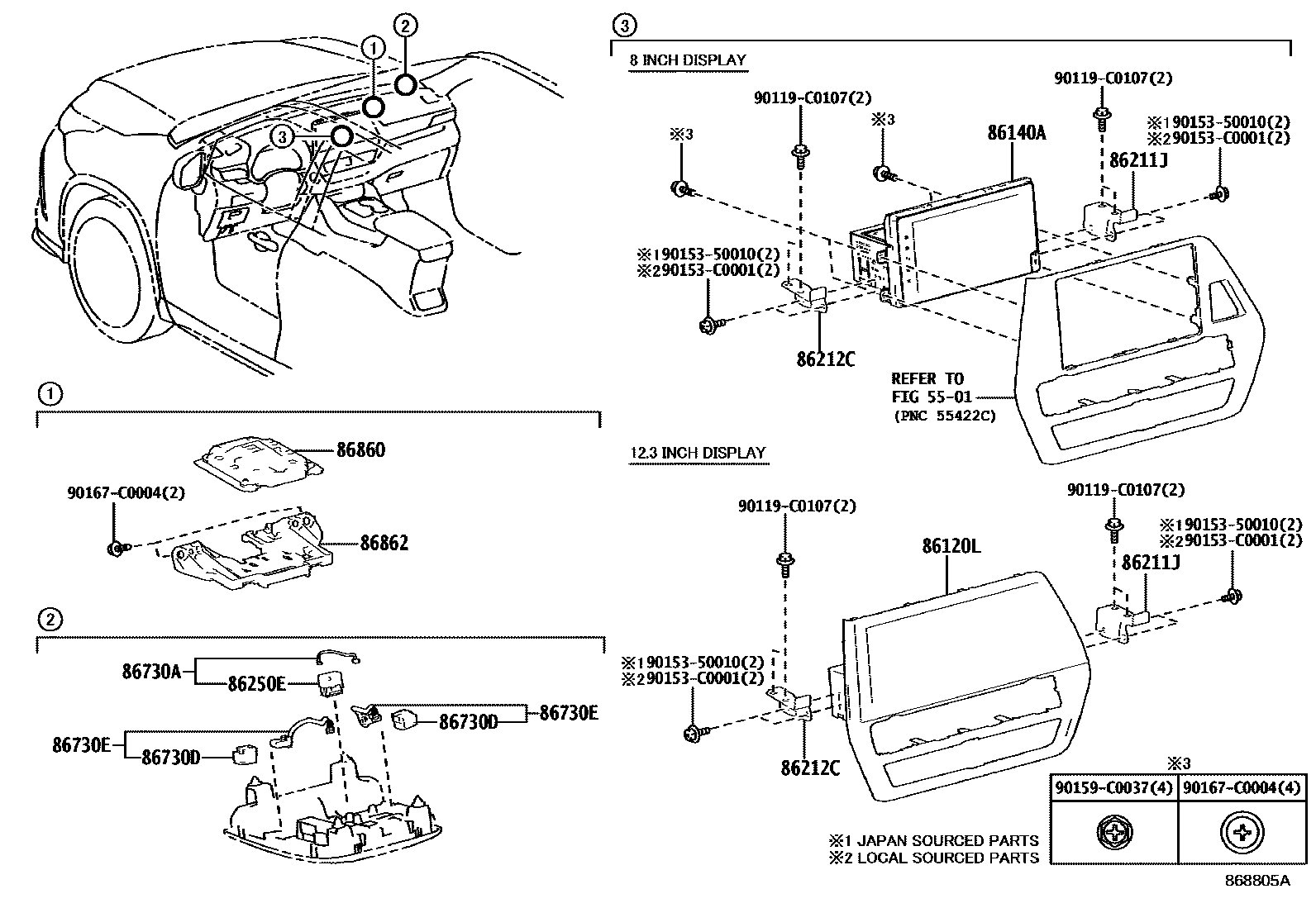

Parts diagram

5501

86120LRECEIVER ASSY, NAVIGATION

main86100-0E380i202108-202203

DESAY

main86100-0E381i202204-202212

DESAY

main86100-0E382i202212-202303

main86100-0E390i202108-202203

DESAY

main86100-0E391i202204-202212

DESAY

main86100-0E392i202212-202303

main86100-0E421i202209-202212

DESAY

main86100-0E422i202212-202303

main86100-0E570i202303-202306

DESAY,WITHOUT(JBL)

main86100-0E571i202307-202405

DESAY,WITHOUT(JBL)

main86100-0E580i202303-202306

DESAY

main86100-0E581i202307-202405

DESAY

main86100-0E590i202303-202306

DESAY

main86100-0E591i202307-202405

DESAY

main86100-0E620i202405-202509

DESAY

main86100-0E630i202405-202509

DESAY

main86100-0E640i202405-202509

DESAY

86140ARECEIVER ASSY, RADIO & DISPLAY

main86140-0E730i202108-202303

DESAY

main86140-0E731i202303-202306

DESAY

main86140-0E732i202307-202405

DESAY

main86140-0EF10i202405-202509

HANGSHENG

86211JBRACKET, RADIO RECEIVER, NO.1

main86211-0E180i202108-202405

86212CBRACKET, RADIO RECEIVER, NO.2

main86212-0E180i202108-202405

86250EMICROPHONE ASSY, AMPLIFIER

main86250-06020i202210-202405

main86250-52030i202108-202210

86730AMICROPHONE ASSY, TELEPHONE

main86730-06060i202108-202405

86730DMICROPHONE ASSY, TELEPHONE, NO.2

main86730-0R050×2i202108-202405

86730EMICROPHONE ASSY

main86730-0E080i202405-202509

86860ANTENNA ASSY, NAVIGATION

main86880-0E020i202108-202405

86862BRACKET, NAVIGATION ANTENNA

main86862-0E030i202405

main86862-42010i202108-202405

90119C0107

main90119-C0107

9015350010

main90153-50010

90153C0001

main90153-C0001

90159C0037

main90159-C0037

90167C0004

main90167-C0004

16 parts on this diagram · 1 diagram in section
