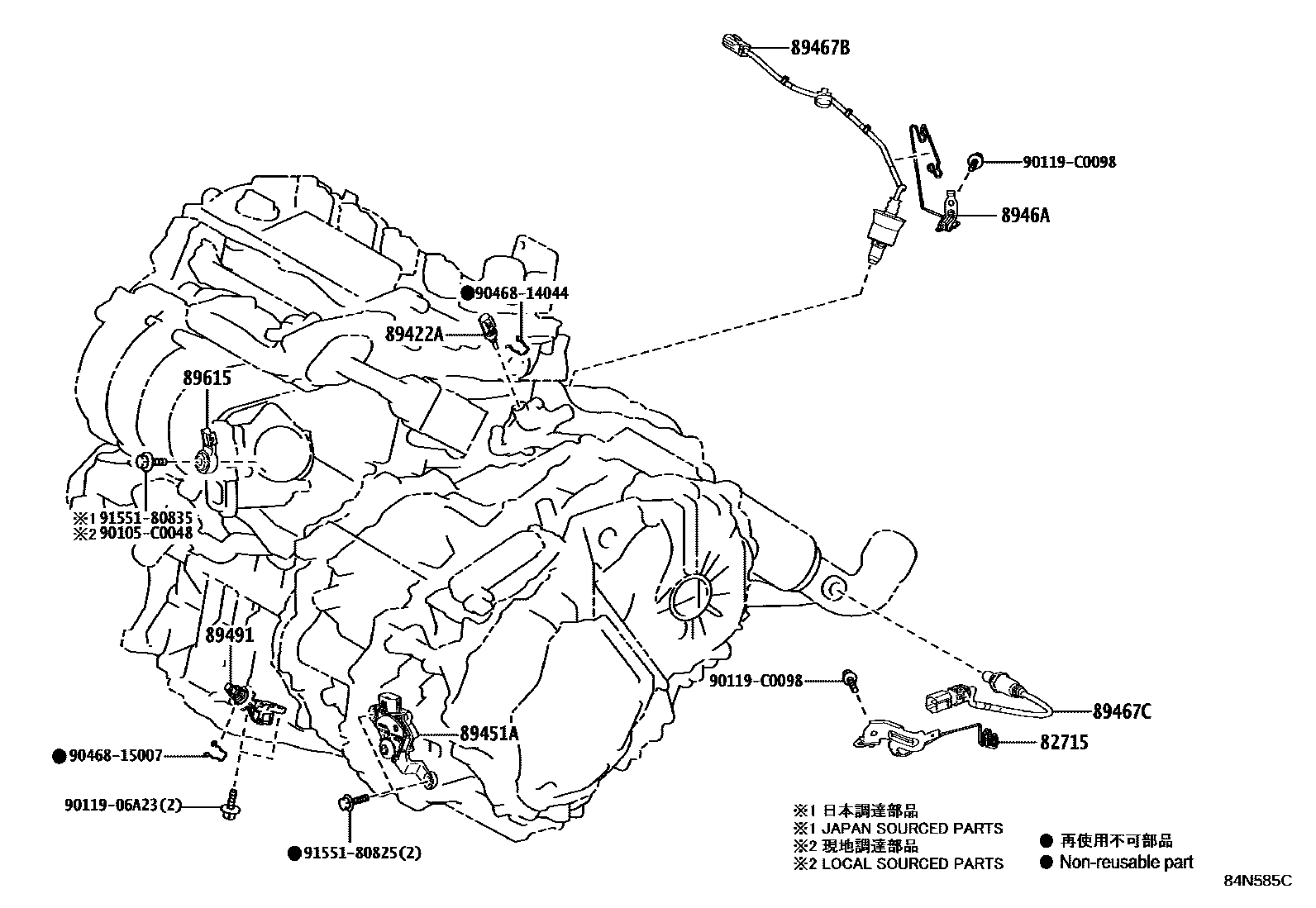

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE ROOM 0005 1ENGINE ROOM RELAY BLOCK 0006 1ENGINE ROOM RELAY BLOCK 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1CONSOLE BOX 0014 1CONSOLE BOX 0015 1STEERING 0016 1STEERING 0017 1SEAT 0018 1DOOR & ROOF 0019 1FLOOR & BACK DOOR 0020 1FLOOR & BACK DOOR 0021 1FLOOR RELAY BLOCK

82715BRACKET,WIRING HARNESS CLAMP

main82715-0R810iAXUH7#202108-202303

main8946A-0E090iSXUA75202209-202405

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAXUH7#,SXUA75202108-202405

89451ASENSOR, SHIFT LEVER POSITION

main89451-10010iAXUH7#202108-202405

89467BSENSOR, AIR FUEL RATIO

main89467-0E310iAXUH7#202108-202303

main89467-0E320iAXUH7#202303-202405

main89467-0E340iSXUA75202209-202405

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-0E350iSXUA75202209-202405

main89467-0R120iAXUH7#202108-202303

main89467-0R170iAXUH7#202303-202405

8946ABRACKET, EXHAUST SENSOR CLAMP

main8946A-0E030iAXUH7#202108-202405

main8946A-48120iSXUA75202209-202405

89491SENSOR, ENGINE OIL LEVEL

main89491-06010iAXUH7#202108-202201

sub89491-06011

main89491-06011iAXUH7#202202-202405

main89491-33052iSXUA75202209-202405

89615SENSOR, KNOCK CONTROL

main89615-0E010iSXUA75202209-202405

(L)

main89615-20090iAXUH7#202108-202405

main89615-78010iSXUA75202209-202405

(J)

90105C0048

main90105-C0048

9011906A23

main90119-06A23

90119C0098

main90119-C0098

9046814044

main90468-14044

9046815007

main90468-15007

9155180825

main91551-80825

9155180835

main91551-80835

15 parts on this diagram · 21 diagrams in section
