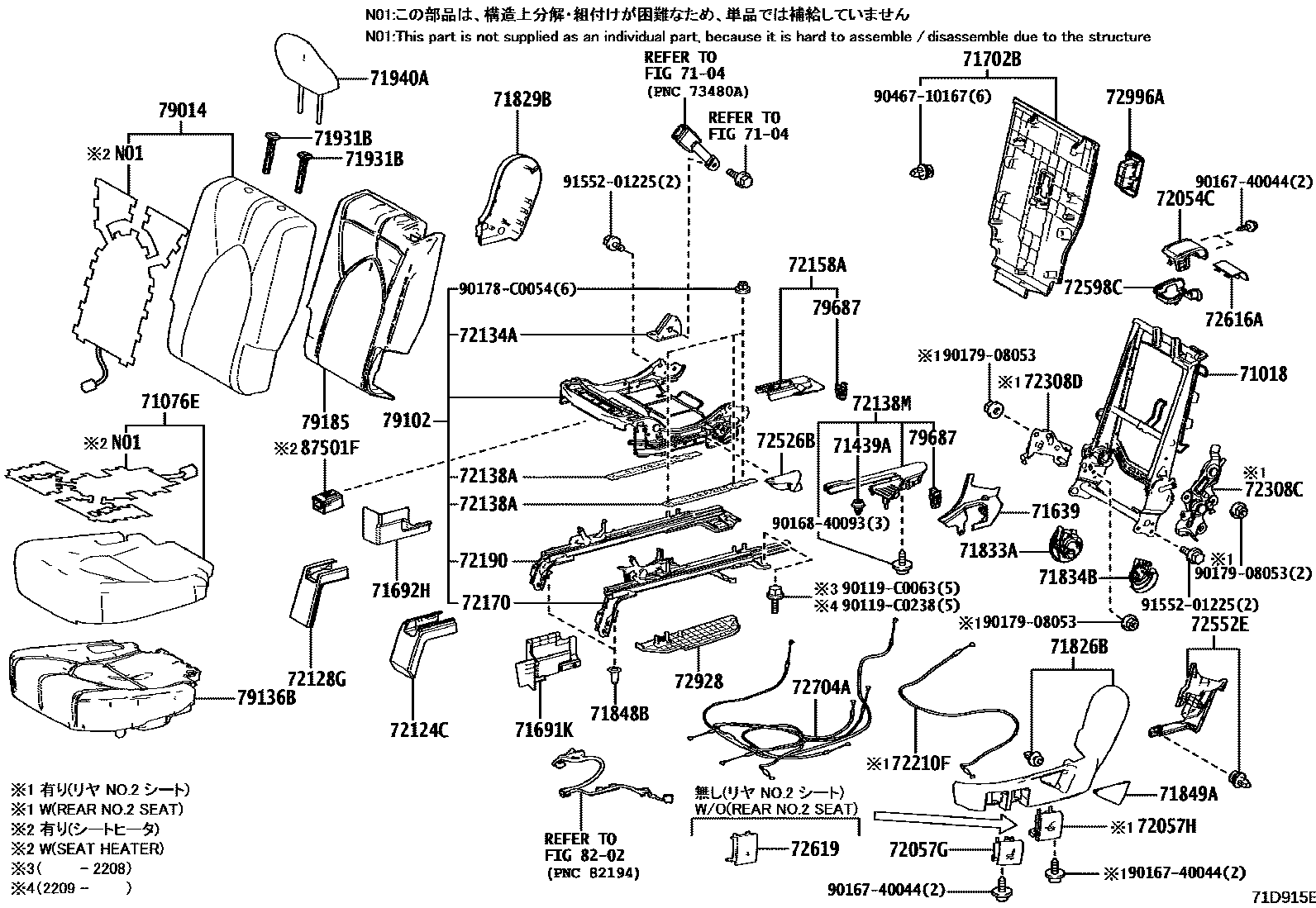

REAR SEAT & SEAT TRACK

0001 1REAR NO.1 SEAT(LH) 0002 1REAR NO.1 SEAT(LH) 0003 1REAR NO.1 SEAT(RH) 0004 1REAR NO.1 SEAT(RH) 0005 1REAR NO.2 SEAT(SEAT BACK,LH) 0006 1REAR NO.2 SEAT(SEAT BACK,RH) 0007 1REAR NO.2 SEAT(SEAT CUSHION)

71018FRAME SUB-ASSY, REAR SEATBACK, LH

main71018-0E200iAXUH7#,SXUA75202405

7104

71076ECOVER SUB-ASSY, REAR SEAT CUSHION, LH

main71076-0E660-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71076-0E670-C4iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71076-YK010-C1supersedes 71076-0E680-C4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71076-YK010-D1supersedes 71076-0E680-D4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71076-YK020-C1supersedes 71076-0E670-C4iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

71439ACLIP

main90467-09232×4iAXUH7#,SXUA75202108-202405

71639COVER, REAR SEAT CUSHION HINGE, LH

main71639-0E070-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71691KCOVER, REAR SEAT CUSHION HINGE, NO.4

main71691-0E080-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71692HCOVER, REAR SEAT CUSHION HINGE, NO.3

main71692-0E080-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71702BBOARD SUB-ASSY, REAR SEATBACK, LH

main71702-0E030-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71826BMOULDING, REAR SEAT CUSHION, LH

main71826-0E130-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71829BMOULDING, REAR SEAT CUSHION, REAR LH

main71829-0E120-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71833ACOVER, REAR SEAT RECLINING, NO.1 RH

main71833-0E100×2iAXUH7#,SXUA75202108-202405

71834BCOVER, REAR SEAT RECLINING, NO.2 LH

main71834-0E120iAXUH7#,SXUA75202108-202405

71848BCAP, SEAT ADJUSTER COVER, RH

main71848-0E100×2iAXUH7#,SXUA75202108-202405

71849ACAP, SEAT ADJUSTER COVER, LH

main71849-0E030-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

71931BSUPPORT ASSY, REAR NO.1 SEAT HEADREST

main71930-06070-C0×2iAXUH79,SXUA75..G202108-202405

W(LOCK),BLACK,TRIM2#

main71931-06060-C0×2iAXUH79,SXUA75..G202405-202509

W/O(LOCK),LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

71940AHEADREST ASSY, REAR SEAT

main71940-0E440-C1×2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71940-0E450-C3×2iAXUH79,SXUA75..G202108-202402

BASE+,BLACK,TRIM2#

main71940-0E450-D3×2iAXUH79,SXUA75..G202108-202402

DK.ROSE,TRIM3#

main71940-0E451-C3×2iAXUH79,SXUA75..G202402-202405

BALCK,TRIM2#

main71940-0E451-D3×2iAXUH79,SXUA75..G202402-202405

DARK ROSE,TRIM3#

main71940-YK110-C8×2iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;ORANGE,TRIM2#

main71940-YK110-C9×2supersedes 71940-0E450-D3iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;DK.ROSE,TRIM3#

main71940-YK170-C0×2iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BALCK/ORANGE,TRIM2#

72054CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH

main72054-0E050-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72057LEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH

main72057-0E150-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72057GLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.1

main72058-0E120-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72057HLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, LH NO.2

main72058-0E130-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72124-0E150-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72128GCOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72128-0E170-C0iAXUH79..G202108-202405

BLACK,TRIM2#,3#

main72128-0E190-C0iSXUA75..G202405

BLACK,TRIM2#,3#

72134ABRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH

main72134-0E040iAXUH7#,SXUA75202108-202405

72138ACOVER, REAR SEAT TRACK, LH

main72137-0E290×2iAXUH7#,SXUA75202108-202405

72138MCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72138-0E170-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72158ACOVER, REAR SEAT TRACK BRACKET, INNER LH

main72158-0E160-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72170TRACK ASSY, REAR SEAT, OUTER LH

main72170-0E130iAXUH7#,SXUA75202108-202405

72190TRACK ASSY, REAR SEAT INNER, LH

main72190-0E130iAXUH7#202108-202405

main72190-0E150iSXUA75202405

72210FCABLE ASSY, SEAT TRACK CONTROL

main72210-0E090×2iAXUH7#,SXUA75202108-202405

72308LINK SUB-ASSY, RECLINING CONTROL, LH

main72308-0E120iAXUH7#,SXUA75202405

72308CLINK SUB-ASSY, RECLINING CONTROL, LH NO.1

main72308-0E100iAXUH7#,SXUA75202108-202405

72308DLINK SUB-ASSY, RECLINING CONTROL, LH NO.2

main72308-0E110iAXUH7#,SXUA75202108-202405

72526BHANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH

main72526-0E100-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72552ECOVER, RECLINING HINGE, LH

main72552-0E080-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

72598CBEZEL, RECLINING REMOTE CONTROL, LH

main72598-0E090iAXUH7#,SXUA75202108-202405

72616ACOVER, REAR SEATBACK LOCK STRIKER, LH

main72615-0E220-C0iAXUH79,SXUA75..G202405

BLACK,TRIM2#,3#

72619COVER, REAR SEATBACK LOCK STRIKER

main72615-0E240-C0×2iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main72615-0E270-C0iAXUH71202108-202405

REAR NO.2 SEAT-WITHOUT,BLACK,TRIM2#

72704ACABLE, REAR SEAT RECLINING CONTROL

main72704-0E270×2iAXUH7#,SXUA75202108-202405

main72704-0E290×2iAXUH71202108-202405

REAR NO.2 SEAT-WITHOUT

72928COVER, REAR SEAT CUSHION UNDER, LH

main72928-0E030iAXUH7#,SXUA75202108-202405

72996ACOVER, REAR SEATBACK

main72996-0E230×2iAXUH7#,SXUA75202108-202405

79014COVER SUB-ASSY, NO.1 SEATBACK, LH

main71078-0E660-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71078-0E670-C4iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71078-YK100-C2supersedes 71078-0E680-C6iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71078-YK100-D2supersedes 71078-0E680-D4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71078-YK120-C3supersedes 71078-0E670-C5iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

79102FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH

main79102-0E210iAXUH7#202405

main79102-0E230iSXUA75202209-202405

79136BPAD, NO.1 SEAT CUSHION, LH

main71612-0E190iAXUH7#,SXUA75202108-202405

79185PAD, NO.1 SEATBACK, LH

main71652-0E200iAXUH7#,SXUA75202108-202405

79687CLIP

main67773-07020×12iAXUH7#,SXUA75202108-202405

8202

87501FCONTROL SUB-ASSY, SEAT HEATER, LH

main87501-06020iAXUH79,SXUA75..G202108-202405

90119C0063

main90119-C0063

90119C0238

main90119-C0238

9016740044

main90167-40044

9016840093

main90168-40093

90178C0054

main90178-C0054

9017908053

main90179-08053

9046710167

main90467-10167

9155201225

main91552-01225

55 parts on this diagram · 7 diagrams in section
