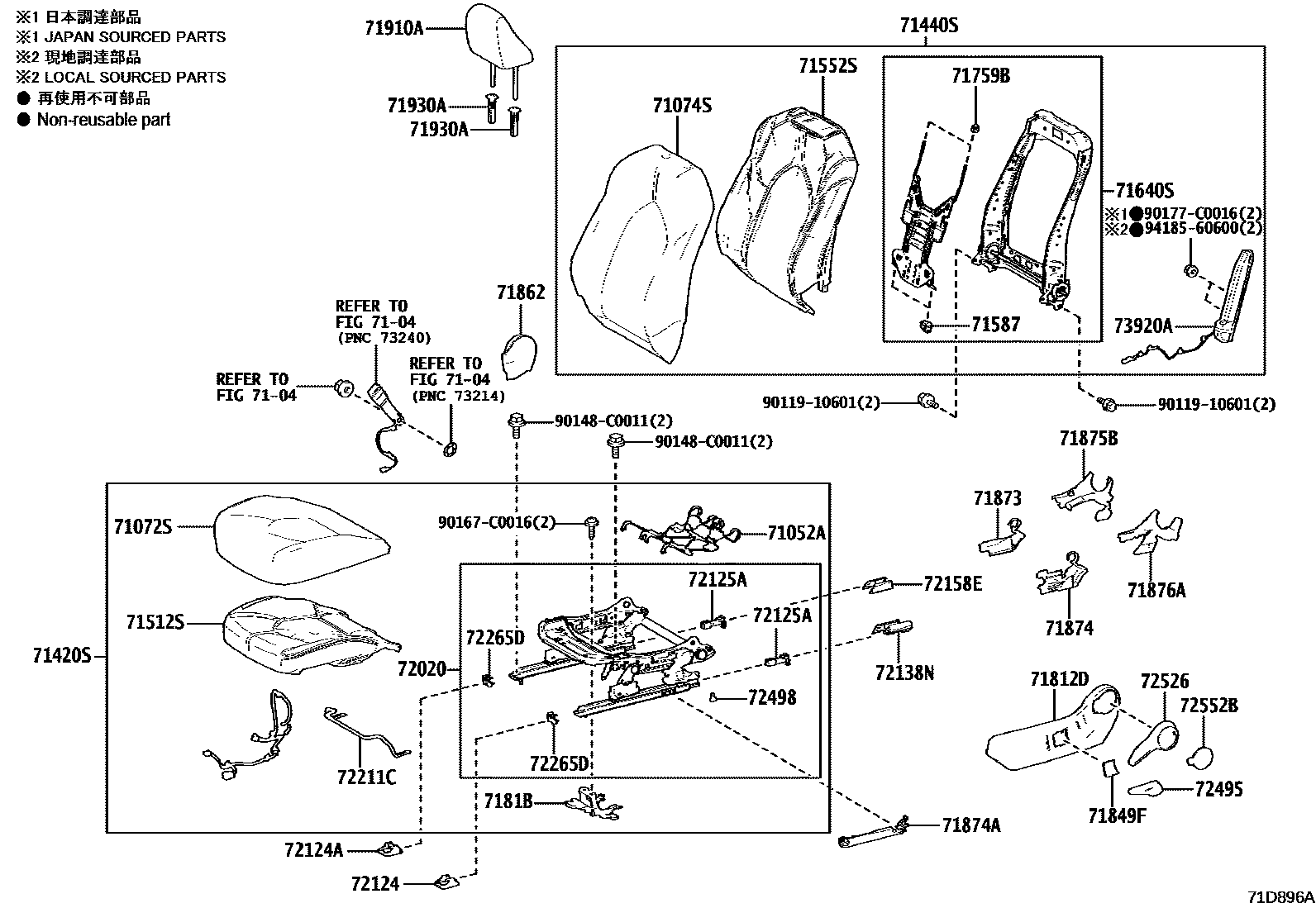

FRONT SEAT & SEAT TRACK

0001 1LH SEAT(MANUAL) 0002 1LH SEAT(POWER) 0003 1RH SEAT(MANUAL) 0004 1RH SEAT(POWER)

7104

71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH

main71051-06040iAXUH7#,SXUA75202108-202405

71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)

main71072-0E720-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71072-0E730-C3iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71072-YK140-C1supersedes 71072-0E740-C4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71072-YK140-D1supersedes 71072-0E740-D3iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71072-YK190-C1supersedes 71072-0E730-C3iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-0E660-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71074-0E670-C3iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71074-YK140-C2supersedes 71074-0E680-C4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71074-YK140-D2supersedes 71074-0E680-D4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71074-YK170-C3supersedes 71074-0E670-C4iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)

main71420-0E610-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71420-0E630-C3iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71420-YK120-C1supersedes 71420-0E621-C0iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71420-YK120-D1supersedes 71420-0E621-D0iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71420-YK180-C1supersedes 71420-0E630-C3iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)

main71440-0E600-C2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71440-0E610-C3iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

main71440-YK130-C2supersedes 71440-0E620-C4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK,TRIM2#

main71440-YK130-D2supersedes 71440-0E620-D4iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,DK.ROSE,TRIM3#

main71440-YK180-C3supersedes 71440-0E610-C4iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK/ORANGE,TRIM2#

71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)

main71512-0E290iAXUH7#..N202108-202405

main71512-0E300iAXUH79..M;SXUA75..M,N202108-202405

BASE+

main71512-0E310iAXUH79,SXUA75..G202108-202405

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-0E180iAXUH7#,SXUA75..N202405

main71552-0E190iAXUH79,SXUA75..G202405

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-F4020×4iAXUH7#,SXUA75202108-202405

71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71640-0E220iAXUH79..M;SXUA75..M,N202108-202405

BASE+

main71640-0E230iAXUH79,SXUA75..G202405

main71640-0E240iAXUH7#..N202108-202405

71759BHOOK, FRONT SEATBACK

main71759-F4020×4iAXUH7#,SXUA75202405

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-0E280-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

main71812-0E290-C0iAXUH79,SXUA75..G202108-202405

BLACK,TRIM2#,3#

main71812-0E330-C0iAXUH79..M;SXUA75..M,N202108-202405

BASE+,BLACK,TRIM2#

7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH

main7181B-0R040iSXUA75;AXUH79..G,M202108-202405

BASE+

main7181B-F4030iAXUH7#..N202108-202405

71849FCAP, SEAT ADJUSTER COVER, LH(FOR LH SEAT)

main71849-0E040-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-F4050-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71874-0E130iAXUH7#,SXUA75202405

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0E120iAXUH7#,SXUA75202108-202405

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71874-0E140iAXUH7#,SXUA75202405

main71874-0E200-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

71875BCOVER, RECLINING ADJUSTER INSIDE, RH

main71876-0E150-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71875-0E120-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

71876ACOVER, RECLINING ADJUSTER INSIDE, LH

main71876-0E120-C0iAXUH7#,SXUA75..M,N202108-202405

BLACK,TRIM2#

71910AHEADREST ASSY, FRONT SEAT

main71910-0E480-C1×2iAXUH7#..N202108-202405

BLACK,TRIM2#

main71910-0E490-C3×2iSXUA75;AXUH79..G,M202108-202402

BASE+,BLACK,TRIM2#

main71910-0E490-D3×2iAXUH79,SXUA75..G202108-202402

DK.ROSE,TRIM3#

main71910-0E491-C3×2iSXUA75;AXUH79..G,M202402-202405

BALCK,TRIM2#

main71910-0E491-D3×2iAXUH79,SXUA75..G202402-202405

DARK ROSE,TRIM3#

main71910-YK120-C8×2iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;ORANGE,TRIM2#

main71910-YK120-C9×2supersedes 71910-0E490-D3iAXUH79,SXUA75..G202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BLACK;DK.ROSE,TRIM3#

main71910-YK180-C0×2iAXUH7#,SXUA75..M,N202405-202509

LOCAL DEVELOPMENT PACKAGE-FTRD PARTS,BALCK/ORANGE,TRIM2#

71930ASUPPORT ASSY, FRONT SEAT HEADREST

main71930-06070-C0×2iAXUH7#,SXUA75..M,N202108-202405

W(LOCK),BLACK,TRIM2#,3#

main71931-06060-C0×2iAXUH7#,SXUA75..M,N202108-202405

W/O(LOCK),BLACK,TRIM2#,3#

72020ADJUSTER ASSY, FRONT SEAT, LH

main72020-0E280iAXUH7#..N202108-202405

main72020-0E290iAXUH79..M;SXUA75..M,N202108-202405

BASE+

main72020-0E300iAXUH79,SXUA75..G202405-202509

72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH

main72123-F4030iAXUH7#,SXUA75202405

72124ACOVER, SEAT TRACK BRACKET, INNER FRONT LH

main72123-F4030iAXUH7#,SXUA75202108-202405

72125ACOVER, SEAT TRACK, UPPER REAR

main72125-F4010×4iAXUH7#..N202108-202405

main72125-F4020×4iSXUA75;AXUH79..G,M202108-202405

BASE+

72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH

main72137-F4020iAXUH7#,SXUA75202108-202405

72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH

main72158-07040iAXUH7#,SXUA75202405

72211HANDLE, SEAT TRACK ADJUSTING

main72211-0R050iAXUH7#..N202108-202405

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-0R050iAXUH7#..N202108-202405

72265DCOVER, SEAT TRACK UPPER RAIL

main72265-07020×4iSXUA75;AXUH79..G,M202108-202405

BASE+

main72265-F4010×4iAXUH7#..N202108-202405

72495HANDLE, VERTICAL ADJUSTING, LH

main72495-0E030-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

72498COVER, VERTICAL ADJUSTER BRACKET

main72498-0R040iAXUH7#..N202108-202405

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-0E110-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

72552BCOVER, RECLINING HINGE, LH

main72551-0E110-C0iAXUH7#..N202108-202405

BLACK,TRIM2#

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-02370iAXUH7#,SXUA75202108-202405

9011910601

main90119-10601

90148C0011

main90148-C0011

90167C0016

main90167-C0016

90177C0016

main90177-C0016

9418560600

main94185-60600

42 parts on this diagram · 4 diagrams in section
