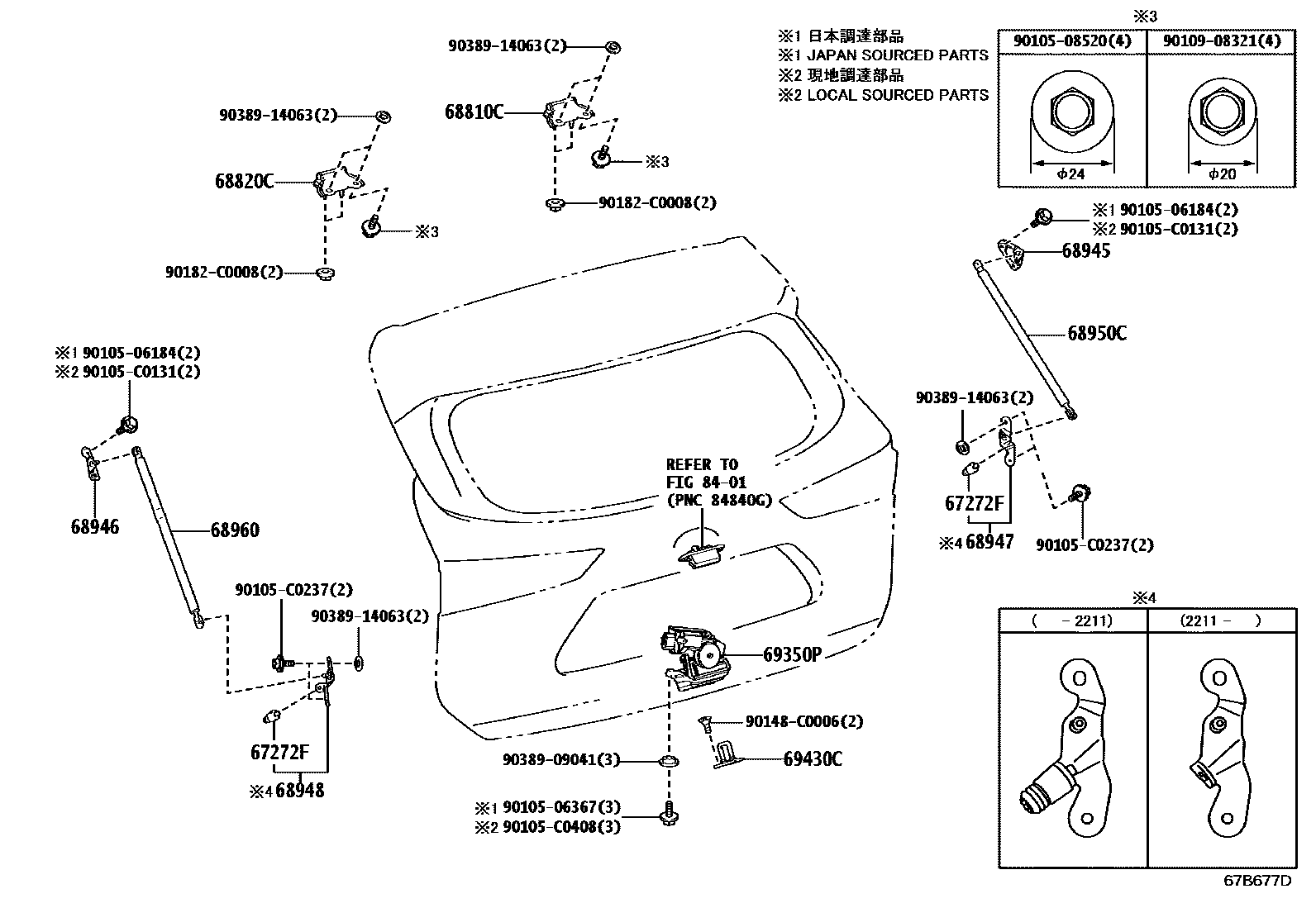

BACK DOOR LOCK & HANDLE

0001 1W/O(POWER BACK DOOR) 0002 1W(POWER BACK DOOR)

67272FCUSHION, BACK DOOR STOPPER, NO.2

main69477-0E020×2iAXUH7#,SXUA75202405

68810CHINGE ASSY, BACK DOOR, RH

main68810-0E320iAXUH7#202108-202205

PAD T=1.5

main68810-0E321iAXUH7#,SXUA75202206-202405

PAD T=1.5

68820CHINGE ASSY, BACK DOOR, LH

main68820-0E260iAXUH7#202108-202205

PAD T=1.5

main68820-0E261iAXUH7#,SXUA75202206-202405

PAD T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0E070iAXUH7#..N202108-202405

main68945-0E080iSXUA75;AXUH79..G,M202108-202405

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-0E070iAXUH7#..N202108-202405

main68946-0E100iSXUA75;AXUH7#..G,M202405

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0E060iAXUH7#,SXUA75202108-202211

main68947-0E061iAXUH7#,SXUA75202405

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-0E050iAXUH7#,SXUA75202108-202211

main68948-0E051iAXUH7#,SXUA75202211-202405

68950CSTAY ASSY, BACK DOOR, RH

main68950-0E180iAXUH7#..N202405

68960STAY ASSY, BACK DOOR, LH

main68950-0E180iAXUH7#..N202108-202405

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0E180iAXUH7#..N202108-202405

main69350-0E190iSXUA75;AXUH7#..G,M202405

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-0R020iAXUH7#,SXUA75202108-202405

8401

9010506184

main90105-06184

9010506367

main90105-06367

9010508520

main90105-08520

90105C0131

main90105-C0131

90105C0237

main90105-C0237

90105C0408

main90105-C0408

9010908321

main90109-08321

90148C0006

main90148-C0006

90182C0008

main90182-C0008

9038909041

main90389-09041

9038914063

main90389-14063

23 parts on this diagram · 2 diagrams in section
