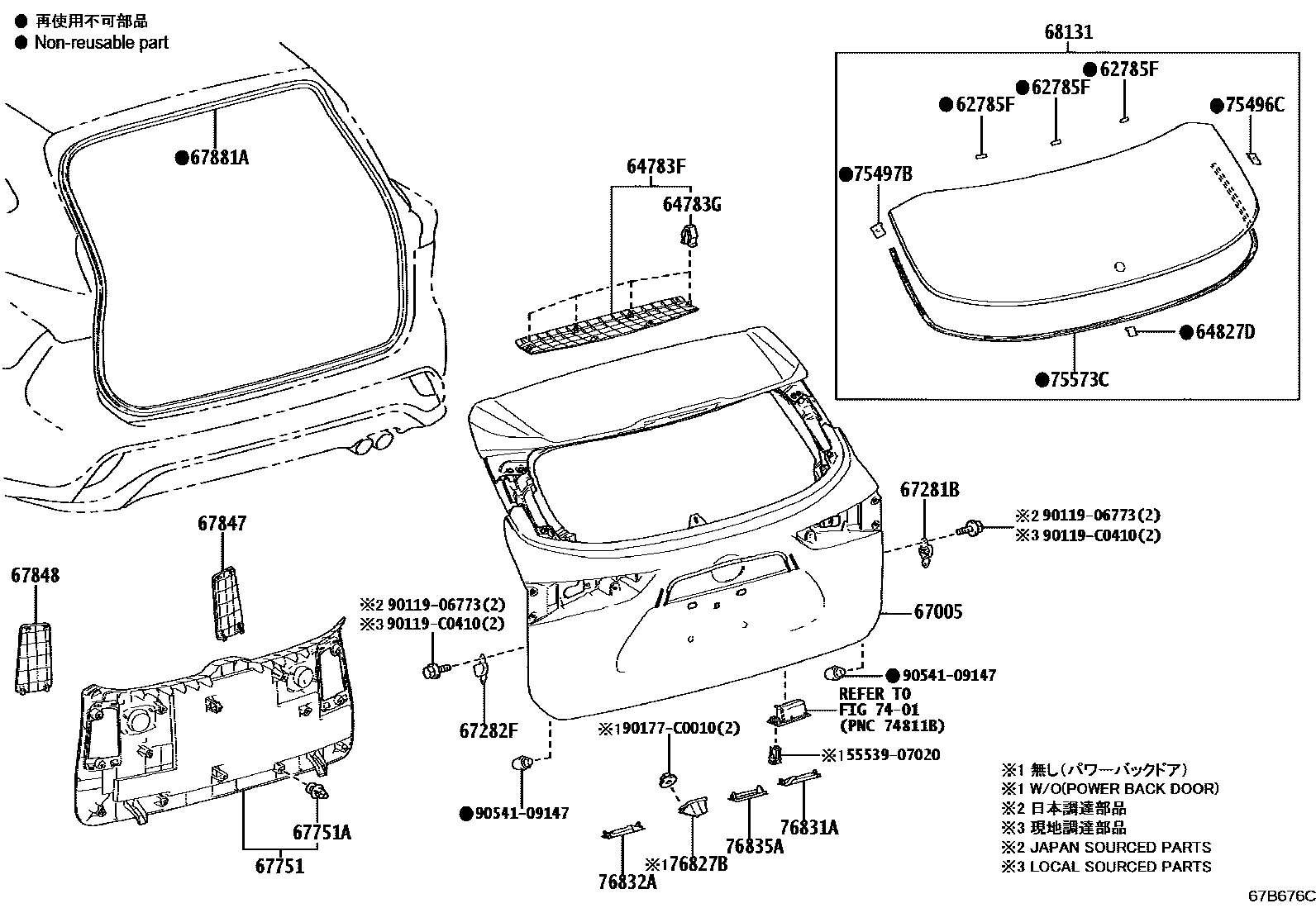

BACK DOOR PANEL & GLASS
62785FSPACER, BACK DOOR GLASS
64783FPLATE, DECK TRIM POCKET COVER
BLACK,TRIM2#,3#
BLACK,TRIM2#
64783GCLIP(FOR DECK TRIM POCKET COVER PLATE)
(J)
(L)
64827DCLIP, BACK WINDOW GLASS
67005PANEL SUB-ASSY, BACK DOOR
67281BSTOPPER, BACK DOOR, LOWER
67282FSTOPPER, BACK DOOR, LWR LH
67751BOARD, BACK DOOR TRIM
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,3#
67751ACLIP(FOR BACK DOOR TRIM BOARD)
67847COVER, BACK DOOR SERVICE HOLE, RH
BLACK,TRIM2#,3#
BLACK,TRIM2#
67848COVER, BACK DOOR SERVICE HOLE, LH
BLACK,TRIM2#
BLACK,TRIM2#,3#
67881AWEATHERSTRIP, BACK DOOR
68131GLASS, BACK DOOR
75496CCLIP, BACK WINDOW OUTSIDE MOULDING, RH
75497BCLIP, BACK WINDOW OUTSIDE MOULDING, LH
75573CMOULDING, BACK WINDOW, OUTSIDE
76827BRETAINER, BACK DOOR GARNISH, NO.2
76831ACOVER, BACK DOOR FINISH PANEL, RH
76832ACOVER, BACK DOOR FINISH PANEL, LH
76835APROTECTOR, BACK DOOR FINISH PANEL, NO.1
5553907020COVER, SPARE SWITCH HOLE
main55539-07020
9011906773
main90119-06773
90119C0410
main90119-C0410
90177C0010
main90177-C0010
9054109147
main90541-09147
25 parts on this diagram · 1 diagram in section
