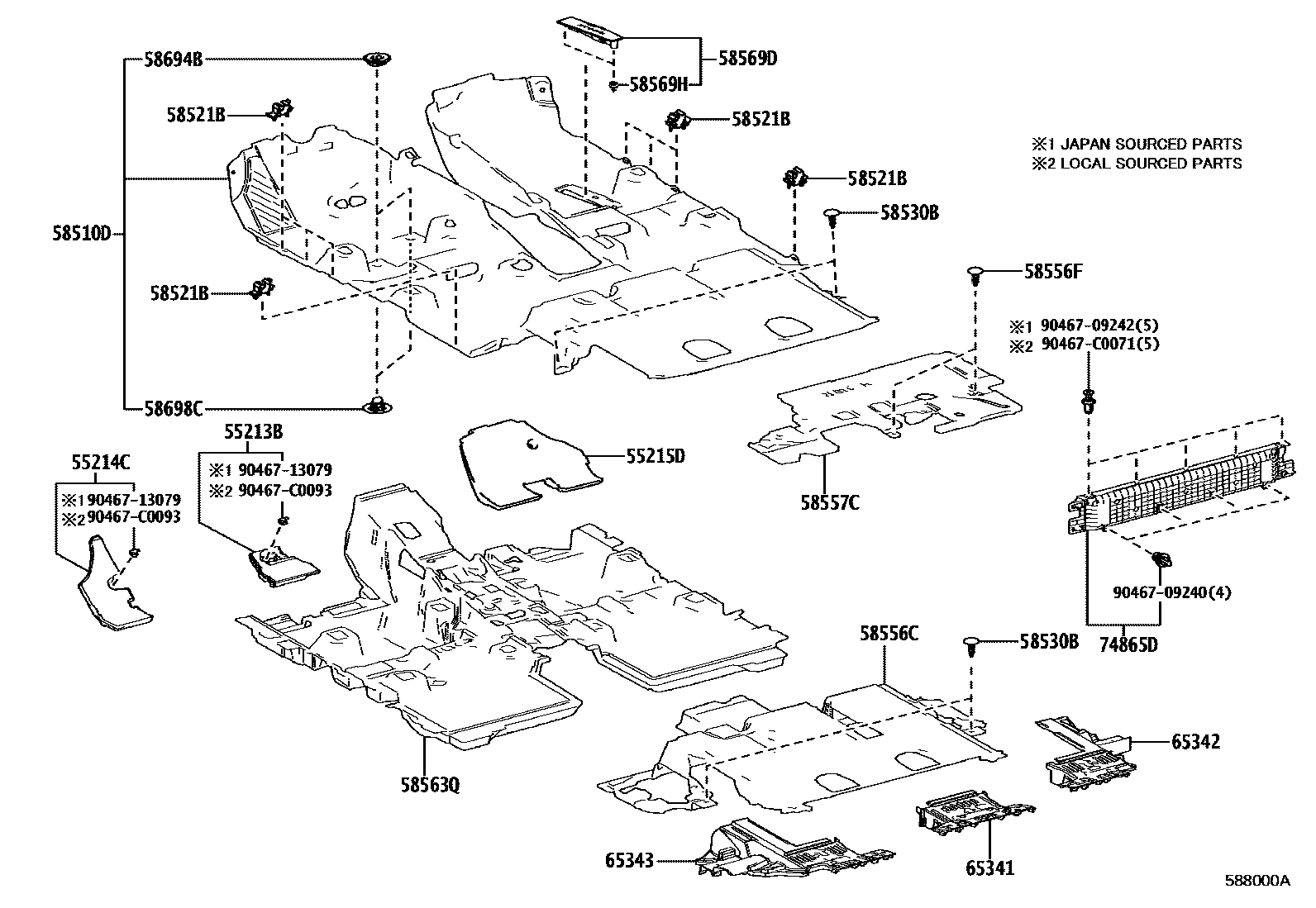

MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
CARPET,TRIM2#
BLACK,TRIM2#
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
BLACK,TRIM2#
58556FCLIP, REAR FLOOR SILENCER
BLACK,TRIM2#
58557CSILENCER, REAR FLOOR, NO.2
58563QSILENCER, FRONT FLOOR, NO.3
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM2#
58569HCLIP, FRONT FLOOR CAUTION PLATE COVER, NO.1
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
65341BOARD, FLOOR, NO.1
65342BOARD, FLOOR, NO.2
65343BOARD, FLOOR, NO.3
74865DCOVER, CENTER PROTECTOR
BLACK,TRIM2#
9046709240
main90467-09240
9046709242
main90467-09242
9046713079
main90467-13079
90467C0071
main90467-C0071
90467C0093
main90467-C0093
23 parts on this diagram · 2 diagrams in section
