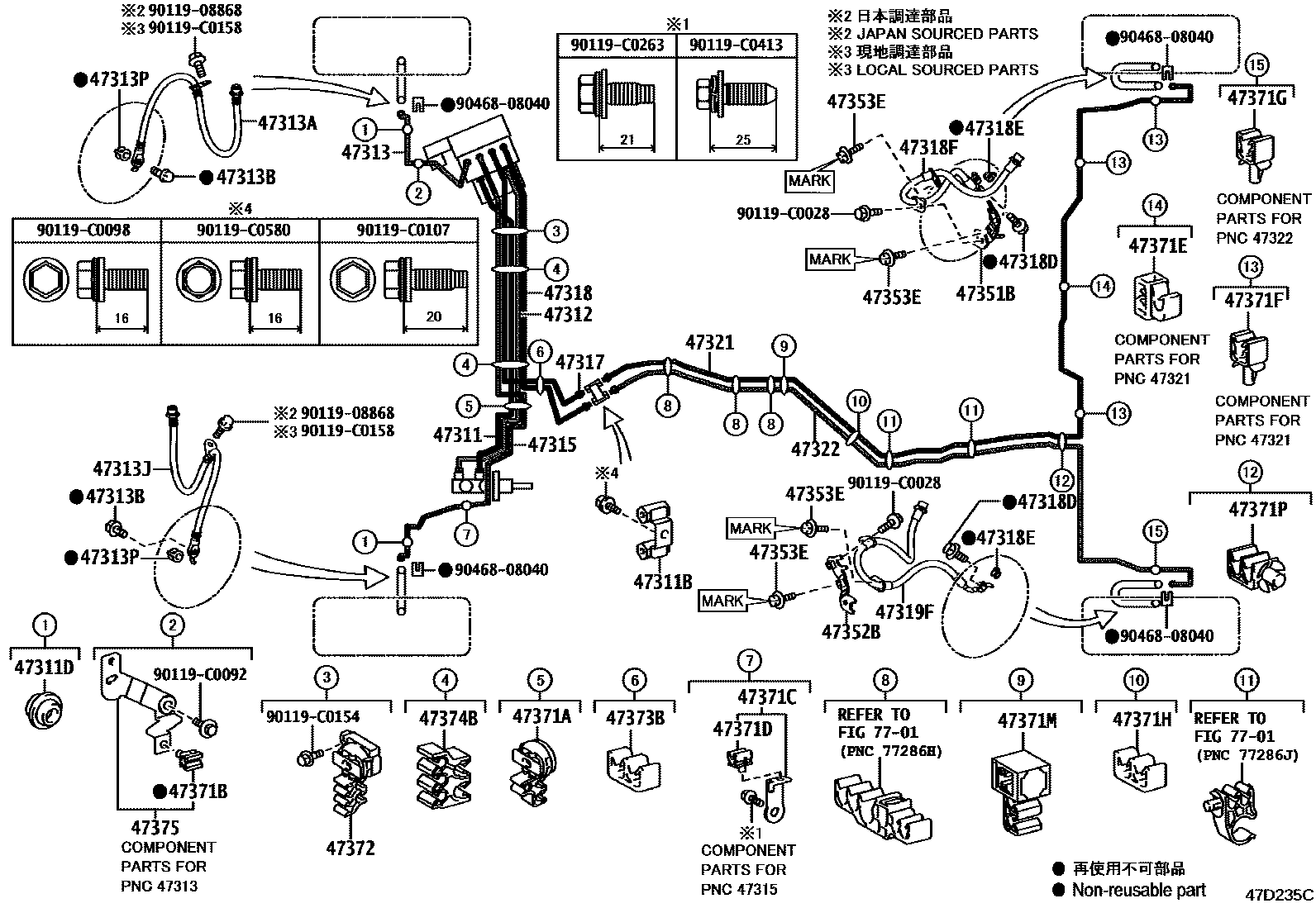

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE TUBE 0003 1BRAKE ACTUATOR

47311TUBE, FRONT BRAKE, NO.1

main47311-0E110iAXUH7#202405

main47311-0E130iSXUA75202405

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iAXUH7#,SXUA75202108-202405

(J)

main90412-C0004iAXUH7#,SXUA75202108-202405

(L)

47311DGROMMET(FOR FRONT BRAKE TUBE)

main90480-25037×2iAXUH7#,SXUA75202405

47312TUBE, FRONT BRAKE, NO.2

main47312-0E080iAXUH7#202108-202405

main47312-0E100iSXUA75202209-202405

47313TUBE, FRONT BRAKE, NO.3

main47313-0E050iAXUH7#202108-202405

main47313-0E130iSXUA75202209-202405

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-C2102iAXUH7#,SXUA75202108-202405

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iAXUH7#,SXUA75202108-202405

(J)

main90401-C0001×2iAXUH7#,SXUA75202405

(L)

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-C2104iAXUH7#,SXUA75202405

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iAXUH7#,SXUA75202108-202405

47315TUBE, FRONT BRAKE, NO.5

main47315-0E190iAXUH7#202405

main47315-0E230iSXUA75202405

47317TUBE, FRONT BRAKE, NO.7

main47317-0E230iAXUH7#202108-202405

main47317-0E250iSXUA75202209-202405

47318TUBE, FRONT BRAKE, NO.8

main47318-0E230iAXUH7#202405

main47318-0E250iSXUA75202405

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iAXUH7#,SXUA75202108-202405

(J)

main90401-C0001×2iAXUH7#,SXUA75202108-202405

(L)

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iAXUH7#,SXUA75202108-202405

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-C2106iAXUH7#,SXUA75202108-202405

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-C2108iAXUH7#,SXUA75202108-202405

47321TUBE, REAR BRAKE, NO.1

main47321-0E150iAXUH7#,SXUA75202405

47322TUBE, REAR BRAKE, NO.2

main47322-0E150iAXUH7#,SXUA75202108-202405

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-0E050iAXUH7#202108-202202

main47351-0E051iAXUH7#,SXUA75202202-202405

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-0E050iAXUH7#202108-202202

main47352-0E051iAXUH7#,SXUA75202202-202405

47353EBOLT(FOR FLEXIBLE HOSE BRACKET)

main90119-08C39×4iAXUH7#,SXUA75202202-202405

MARK=8T

main90119-C0346×4iAXUH7#202108-202202

MARK=8.8

47371ACLAMP, BRAKE TUBE, NO.1

main47371-0E100iAXUH7#,SXUA75202108-202405

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D56iAXUH7#,SXUA75202108-202405

47371CCLAMP, BRAKE TUBE, NO.7

main47371-0R080iAXUH7#,SXUA75202405

47371DCLAMP, BRAKE TUBE, NO.8

main90949-01D56iAXUH7#,SXUA75202108-202405

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01C82iAXUH7#,SXUA75202108-202405

47371FCLAMP, BRAKE TUBE, NO.10

main90949-01E01×3iAXUH7#,SXUA75202108-202405

47371GCLAMP, BRAKE TUBE, NO.11

main90949-01E01iAXUH7#,SXUA75202108-202405

47371HCLAMP, BRAKE TUBE, NO.12

main90464-00903iAXUH7#,SXUA75202108-202405

47371MCLAMP, BRAKE TUBE, NO.13

main90949-01D11iAXUH7#,SXUA75202405

47371PCLAMP, BRAKE TUBE, NO.14

main90949-01D13iAXUH7#,SXUA75202108-202405

47372CLAMP, BRAKE TUBE, NO.2

main47372-0E020iAXUH7#,SXUA75202108-202405

47373BCLAMP, BRAKE TUBE, NO.3

main90464-00903iAXUH7#,SXUA75202108-202405

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E40×2iAXUH7#,SXUA75202108-202405

47375CLAMP, BRAKE TUBE, NO.5

main47371-0E110iAXUH7#202108-202405

main47371-0E140iSXUA75202209-202405

7701

9011908868

main90119-08868

90119C0028

main90119-C0028

90119C0092

main90119-C0092

90119C0098

main90119-C0098

90119C0107

main90119-C0107

90119C0154

main90119-C0154

90119C0158

main90119-C0158

90119C0263

main90119-C0263

90119C0413

main90119-C0413

90119C0580

main90119-C0580

9046808040

main90468-08040

47 parts on this diagram · 3 diagrams in section
