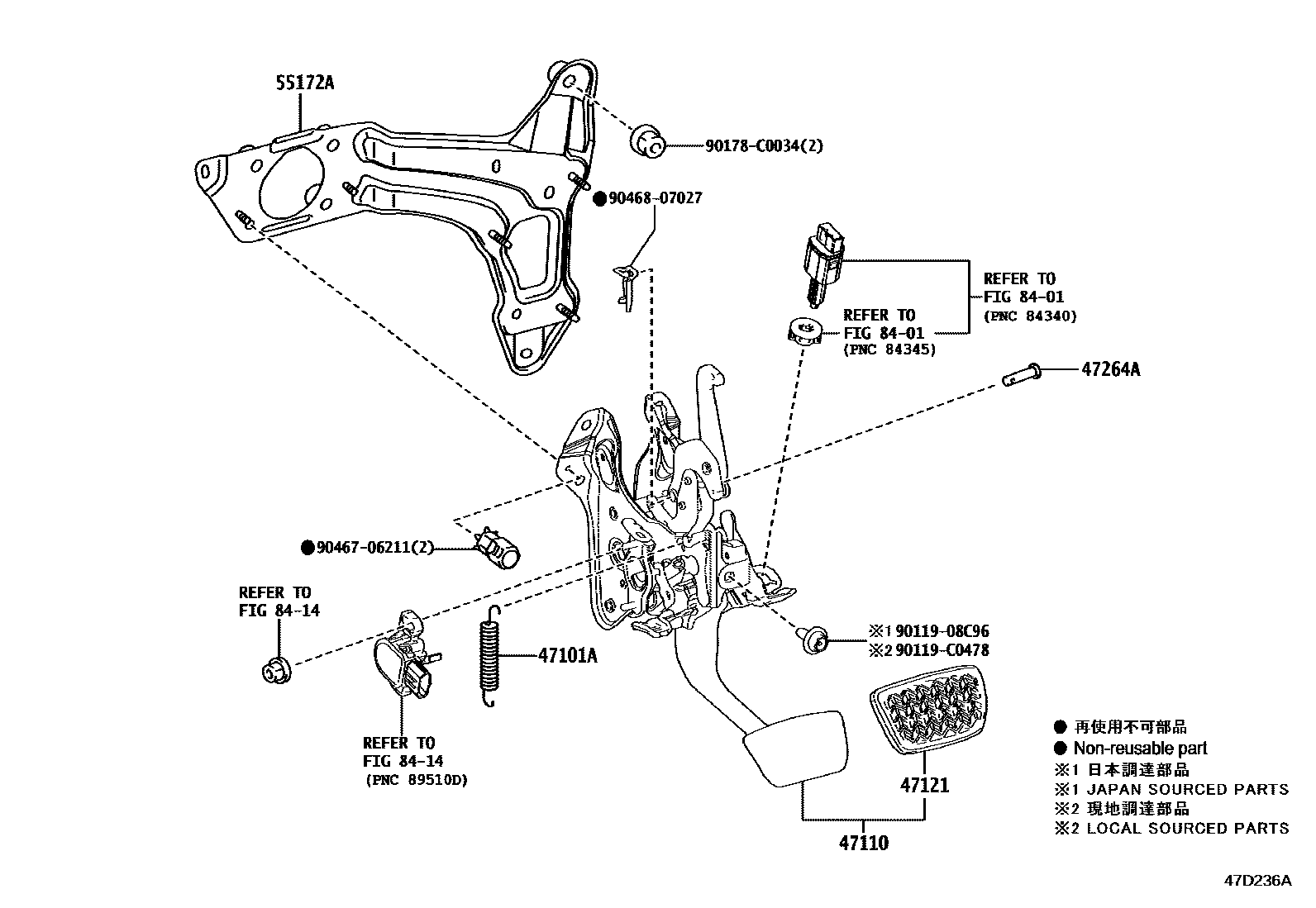

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iAXUH7#202108-202405

main90507-C0004iSXUA75202405

47110SUPPORT ASSY, BRAKE PEDAL

main47110-0E230iSXUA75202405

main47110-0R170iAXUH7#202405

47121PAD, BRAKE PEDAL

main47121-48010iAXUH7#,SXUA75202108-202405

47264APIN(FOR PUSH ROD)

main90240-06028iSXUA75202209-202405

main90240-08082iAXUH7#202108-202405

55172ABASE, BRAKE PEDAL SUPPORT

main55172-0E100iAXUH7#,SXUA75202108-202405

8401

8414

9011908C96

main90119-08C96

90119C0478

main90119-C0478

90178C0034

main90178-C0034

9046706211

main90467-06211

9046807027

main90468-07027

12 parts on this diagram · 2 diagrams in section
