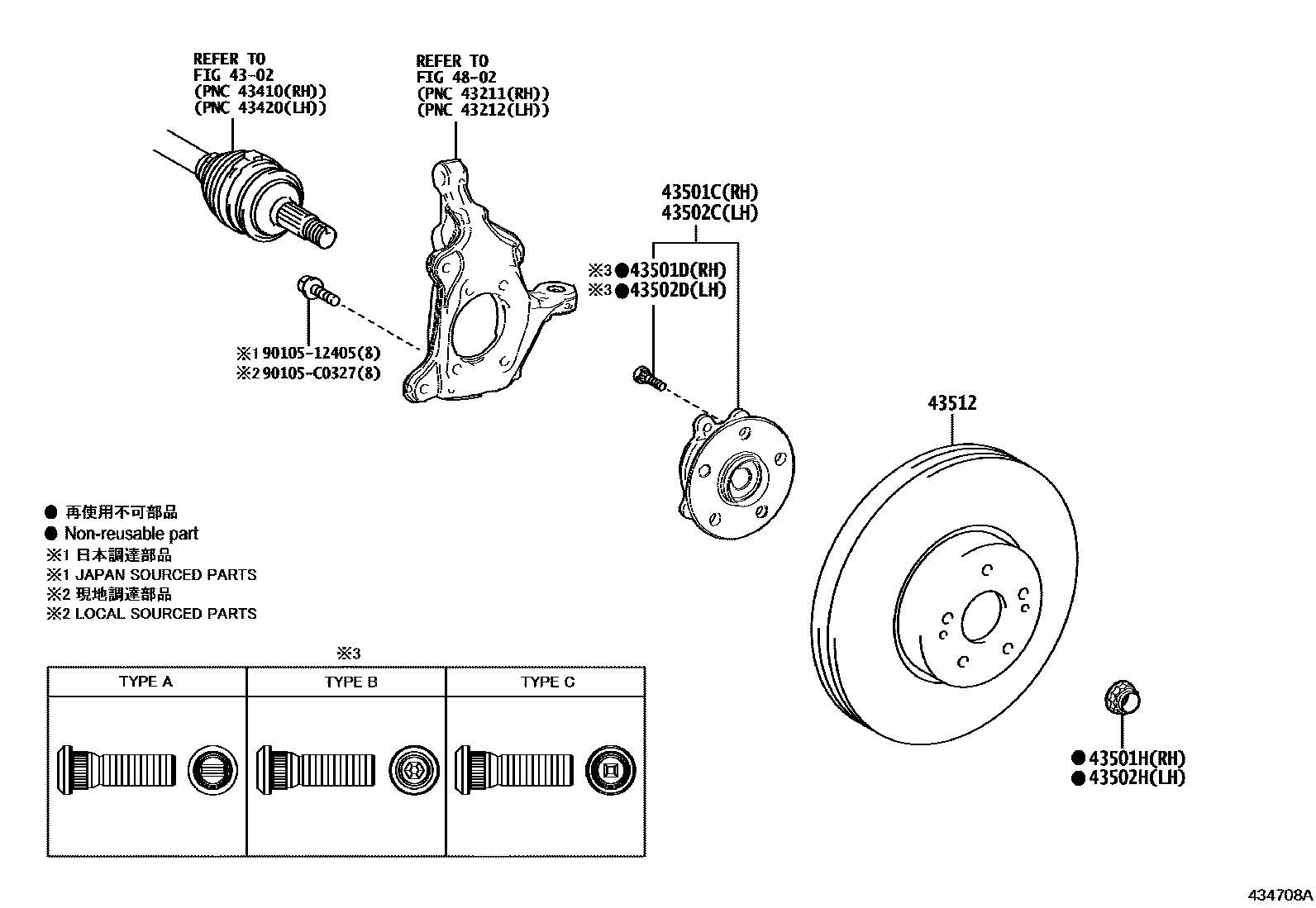

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0R080iAXUH7#,SXUA75202405

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXUH7#,SXUA75202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXUH7#,SXUA75202405

TYPE B:REFER ILLUST.

main90942-02082×5iAXUH7#,SXUA75202108-202405

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iAXUH7#,SXUA75202108-202405

(J)

main90177-C0004iAXUH7#,SXUA75202108-202405

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0R080iAXUH7#,SXUA75202405

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iAXUH7#,SXUA75202108-202405

TYPE A:REFER ILLUST.

main90942-02081×5iAXUH7#,SXUA75202108-202405

TYPE B:REFER ILLUST.

main90942-02082×5iAXUH7#,SXUA75202108-202405

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iAXUH7#,SXUA75202108-202405

(J)

main90177-C0004iAXUH7#,SXUA75202405

(L)

43512DISC, FRONT

main43512-0E080×2iAXUH7#,SXUA75202405

4802

9010512405

main90105-12405

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section
