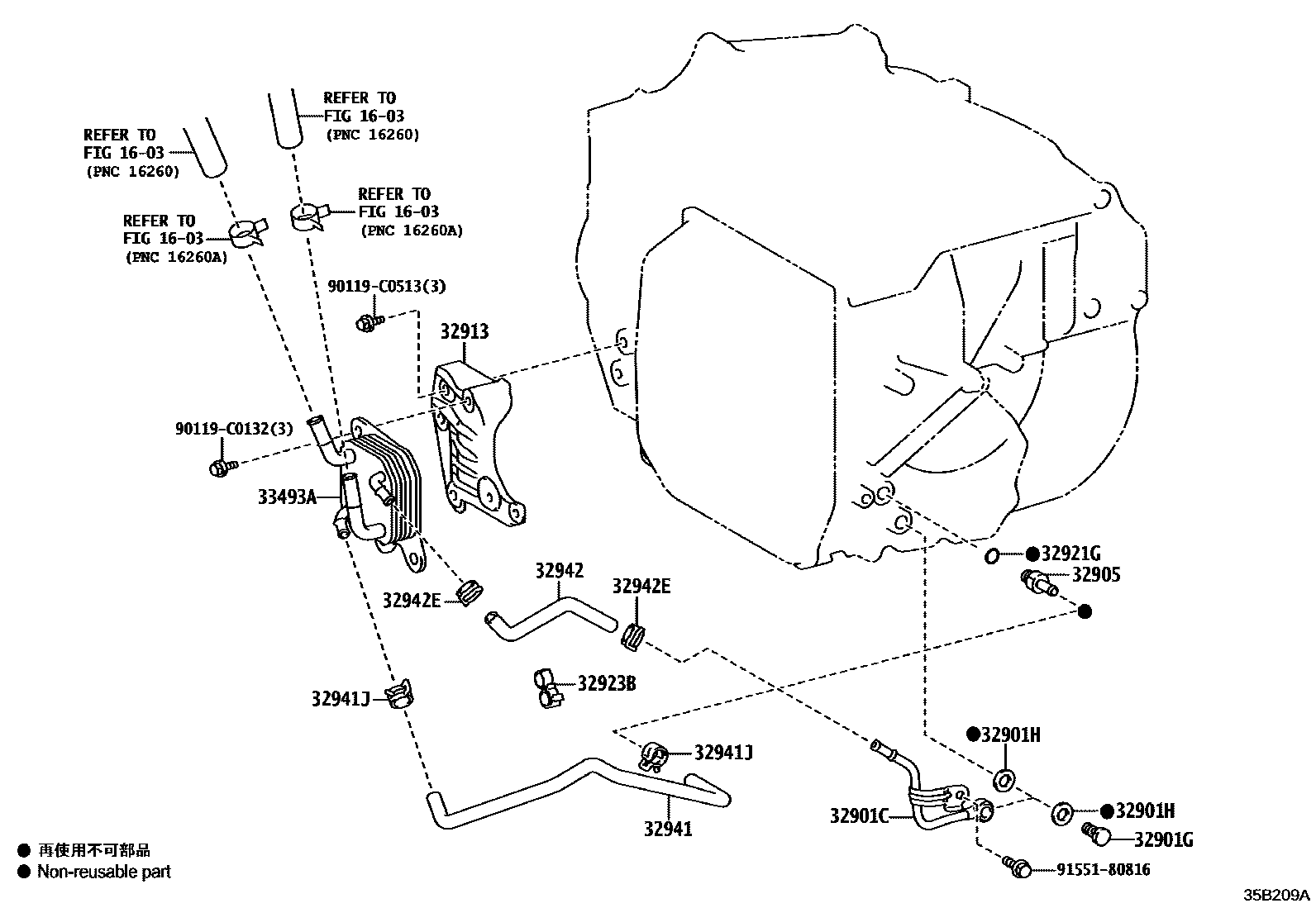

OIL COOLER & TUBE (ATM)

1603

32901CUNION SUB-ASSY, OIL COOLER

main32901-48020iSXUA75202209-202405

32901GBOLT, UNION(FOR OIL COOLER)

main90401-14003iSXUA75202209-202405

32901HGASKET(FOR OIL COOLER UNION)

main90430-14016×2iSXUA75202209-202405

32905TUBE SUB-ASSY, OIL COOLER OUTLET, NO.1

main90404-14030iSXUA75202209-202405

32913BRACKET, OIL COOLER

main32913-78061iSXUA75202209-202405

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-11031iSXUA75202209-202405

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-48100iSXUA75202209-202405

32941HOSE, OIL COOLER INLET, NO.1

main32941-0E180iSXUA75202209-202405

32941JCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-C0024×2iSXUA75202209-202405

32942HOSE, OIL COOLER OUTLET, NO.1

main32942-0E180iSXUA75202209-202405

32942ECLIP, NO.2(FOR OIL COOLER HOSE)

main90466-C0024×2iSXUA75202209-202405

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-0E050iSXUA75202209-202405

90119C0132

main90119-C0132

90119C0513

main90119-C0513

9155180816

main91551-80816

16 parts on this diagram · 1 diagram in section
