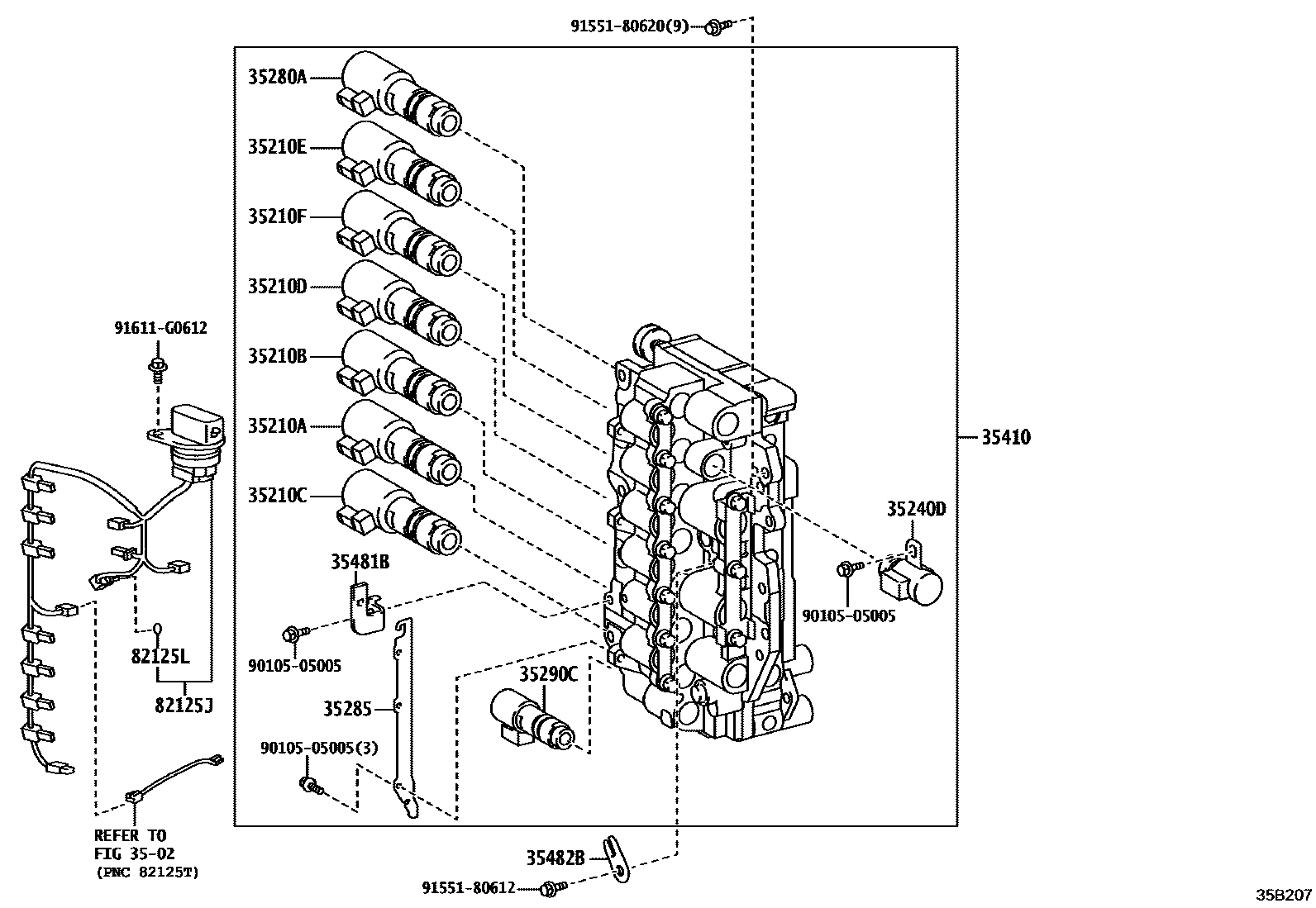

VALVE BODY & OIL STRAINER (ATM)
3502
35210AVALVE, SOLENOID(SL1)
35210BVALVE, SOLENOID(SL3)
35210CVALVE, SOLENOID(SL2)
35210DVALVE, SOLENOID(SL4)
35210EVALVE, SOLENOID(SL5)
35210FVALVE, SOLENOID(SL6)
35240DVALVE, SOLENOID(SL)
35280AVALVE, SOLENOID(SLU)
35285PLATE, SOLENOID LOCK
35290CVALVE, SOLENOID(SLT)
35410BODY ASSY, TRANSMISSION VALVE
35481BCLAMP, VALVE BODY WIRE HARNESS
35482BCLAMP, TEMPERATURE SENSOR
82125JWIRE, TRANSMISSION
82125LRING, O(FOR TRANSMISSION WIRE)
9010505005
main90105-05005
9155180612
main91551-80612
9155180620
main91551-80620
91611G0612
main91611-G0612
20 parts on this diagram · 1 diagram in section
