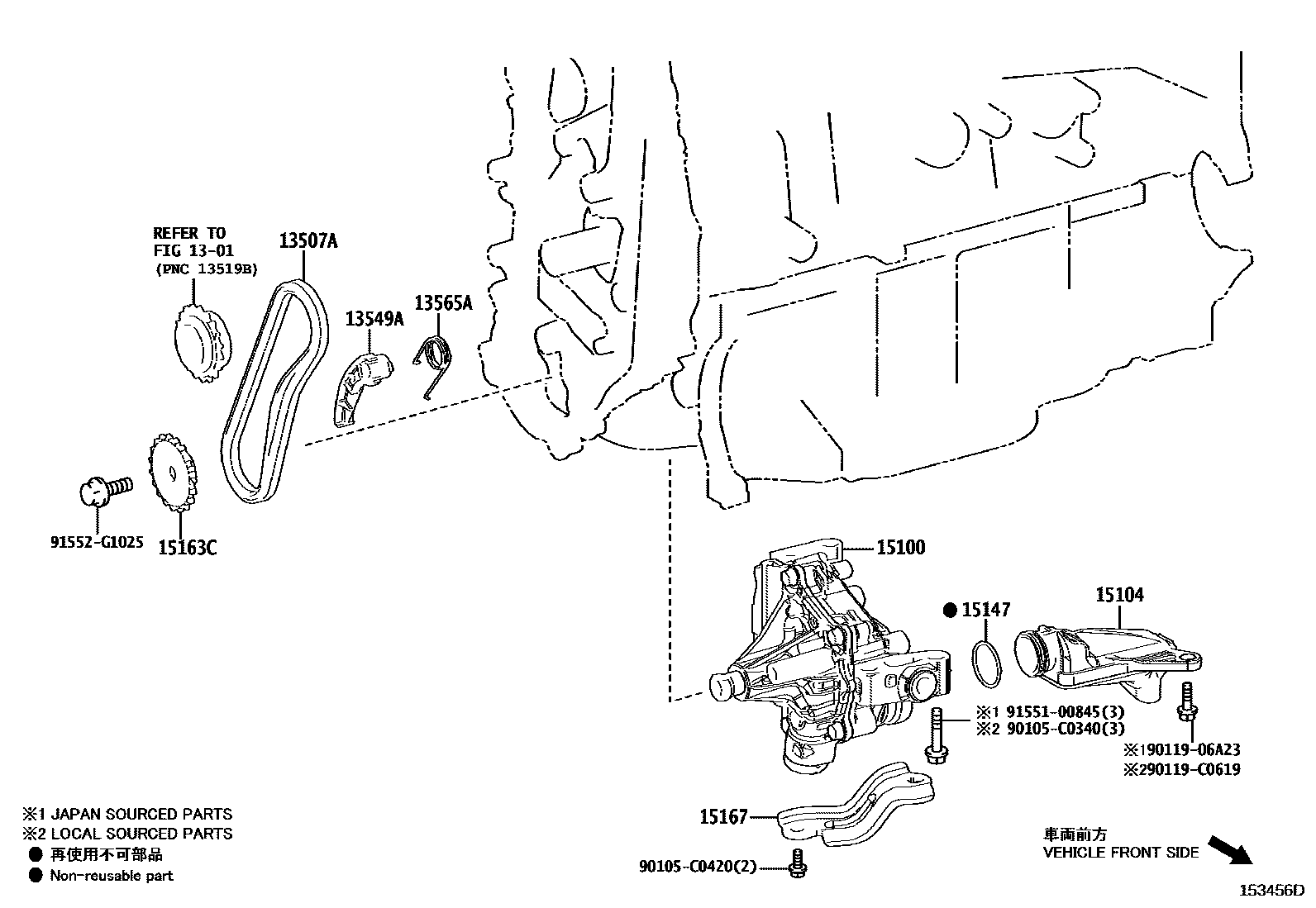

ENGINE OIL PUMP

0001 1 0002 1

1301CRANKSHAFT & PISTON

→ Go to FIG 13-01

13507ACHAIN SUB-ASSY, OIL PUMP DRIVE

main13507-25010iA25..AXUH7#202108-202405

(J),*667

main13507-25030iS20..SXUA75202405

main13507-F0020iA25..AXUH7#202405

*625,(L),*667

13549APLATE, CHAIN TENSIONER

main13549-25020iS20..SXUA75202209-202405

main13549-F2020iA25..AXUH7#202108-202405

*625,*667

13565ASPRING, CHAIN DAMPER

main13565-25010iS20..SXUA75202209-202405

main13565-F2020iA25..AXUH7#202108-202405

*625,*667

15100PUMP ASSY, OIL

main15100-25032iA25..AXUH7#202108-202405

(J),*667

main15100-25070iS20..SXUA75202209-202405

main15100-F0020iA25..AXUH7#202108-202405

*625,(L),*667

15104STRAINER SUB-ASSY, OIL

main15104-25030iA25..AXUH7#202108-202405

(J),*667

main15104-25040iS20..SXUA75202405

main15104-F0020iA25..AXUH7#202108-202405

*625,(L),*667

15147GASKET, OIL STRAINER

main15147-25010iA25..AXUH7#202108-202405

(J),*667

main15147-25030iS20..SXUA75202209-202405

main15147-F2010iA25..AXUH7#202108-202405

*625,(L),*667

15163CSPROCKET, OIL PUMP DRIVE SHAFT

main15163-25030iS20..SXUA75202209-202405

main15163-F2020iA25..AXUH7#202405

*625

15167BRACKET, OIL PUMP

main15167-25011iA25..AXUH7#202108-202405

(J),*667,(J),*625

main15167-F0020iA25..AXUH7#202405

(L),*667,(L),*625

90105C0340

main90105-C0340

90105C0420

main90105-C0420

9011906A23

main90119-06A23

90119C0619

main90119-C0619

9155100845

main91551-00845

91552G1025

main91552-G1025

15 parts on this diagram · 2 diagrams in section
