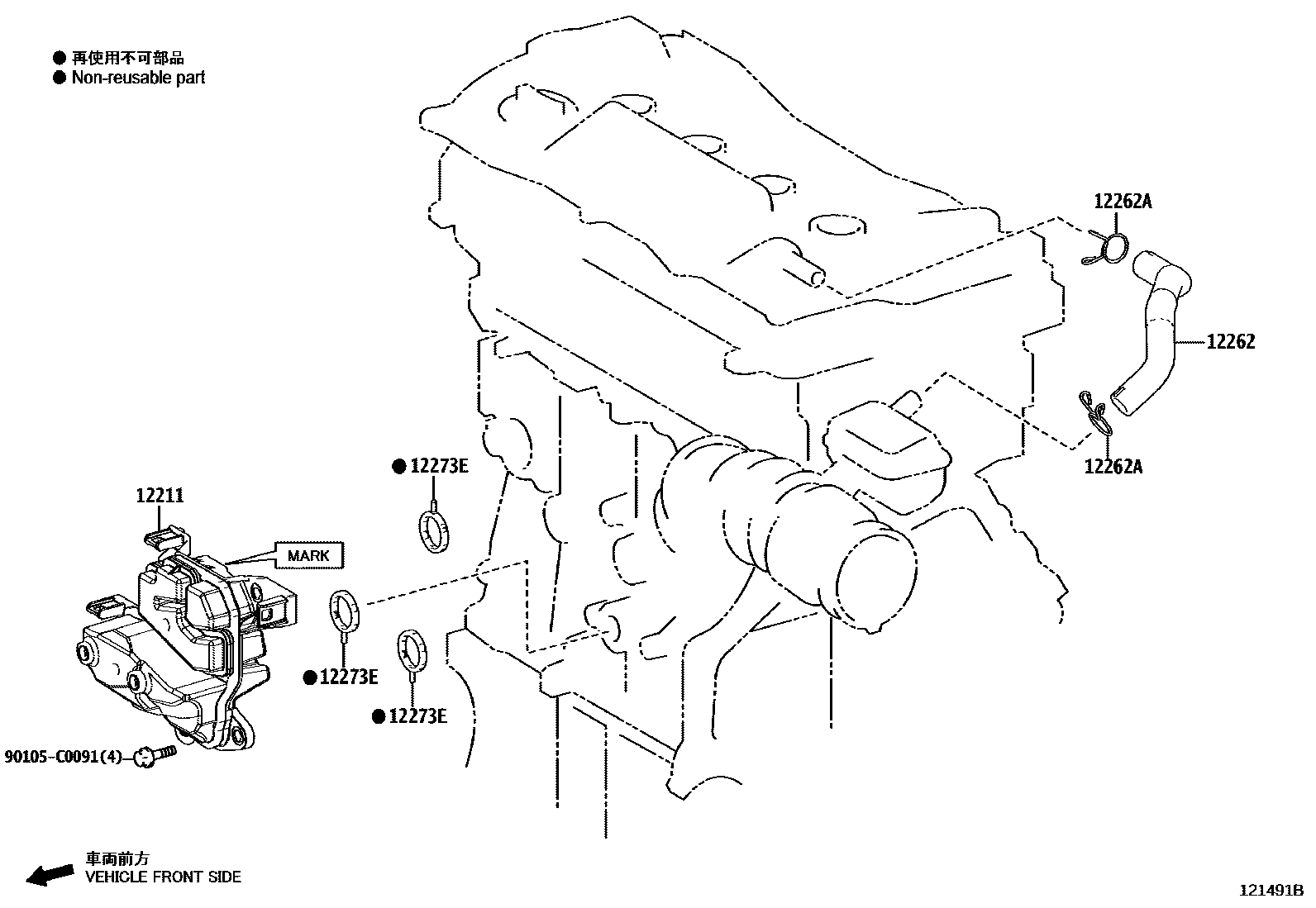

VENTILATION HOSE

0001 1 0002 1

12211CASE, VENTILATION, NO.1

main12211-25011iA25..AXUH7#202405

*667,MARK12211-25011

main12211-F0020iA25..AXUH7#202108-202405

*625,*667,MARK12211-F0020

12262HOSE, VENTILATION, NO.2

main12262-25080iA25..AXUH7#202108-202405

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-21004×2iA25..AXUH7#202108-202405

main90467-23002×2iS20..SXUA75202209-202405

12273EGASKET(FOR VENTILATION CASE)

main12273-F2020×3iA25..AXUH7#202108-202405

*625,*667

90105C0091

main90105-C0091

5 parts on this diagram · 2 diagrams in section
