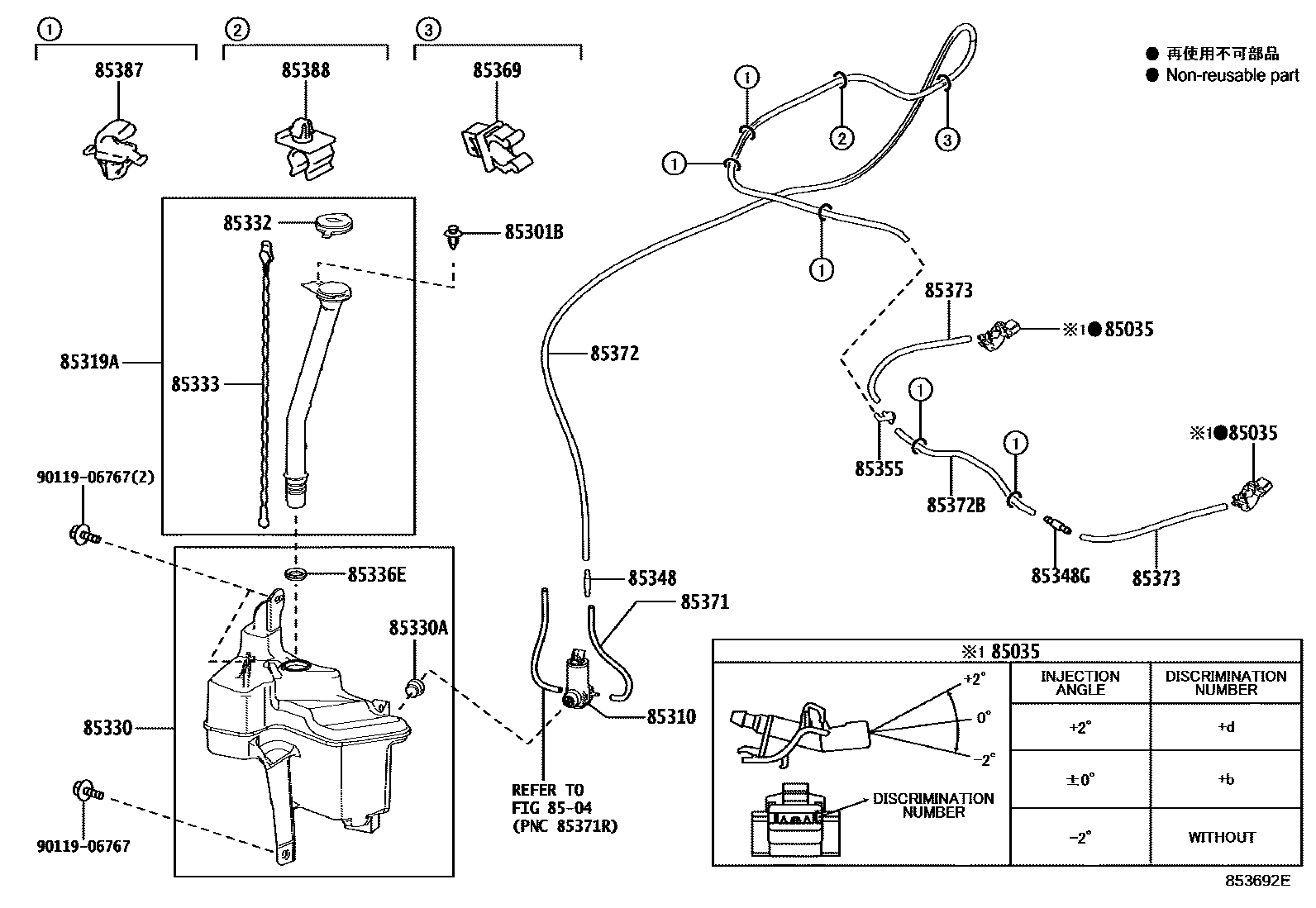

WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-30220×2iNGX10,50201612-201910

ANGLE 0

sub85381-0K070

main85381-30230×2iNGX10,50,ZYX10201910

ANGLE -2

sub85381-0K080

main85381-30240×2iNGX10,50,ZYX10201910

ANGLE +2

8504

85301BCLIP, WASHER

main90467-07214iNGX10,50201612-201910

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-47070iNGX10,50201612-201707

main85330-47090iNGX10,50201707-201910

main85330-47091iNGX10,50,ZYX10202101

85319AHOSE, INLET

main85319-10300iNGX10,50201612-201910

85330JAR ASSY, WINDSHIELD WASHER

main85315-10300iNGX10,50201612-201910

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iNGX10,50201612-201910

85332CAP, WINDSHIELD WASHER JAR

main85316-16070iNGX10,50201612-201910

85333FILTER, WINDSHIELD WASHER JAR

main85318-10300iNGX10,50201612-201910

85336EPACKING, WINDSHIELD WASHER INLET HOSE

main85336-30160iNGX10,50201612-201910

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iNGX10,50201612-201910

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iNGX10,50201612-201910

85355VALVE, WINDSHIELD WASHER HOSE

main85321-28020iNGX10,50201612-201910

85369CLAMP

main85371-52110iNGX10,50201612-201910

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iNGX10,50201612-201910

L=1450(*H,L=240)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33803iNGX10,50201612-201910

L=2200

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iNGX10,50201612-201910

L=1450(*H,L=390)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iNGX10,50201612-201910

L=1450(*H,L=210)

85387CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85371-12040×5iNGX10,50201612-201910

85388CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85371-32020iNGX10,50201612-201910

9011906767

main90119-06767

21 parts on this diagram · 1 diagram in section
