WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1INSTRUMENT PANEL 0008 1DOOR 0009 1FLOOR & ROOF 0010 1FLOOR & ROOF 0011 1HIGH VOLTAGE CABLE 0012 1SEAT 0013 1CLAMP & BRACKET 0014 1CLAMP & BRACKET 0015 1CONNECTOR 1/3 0016 1CONNECTOR 2/3 0017 1CONNECTOR 3/3

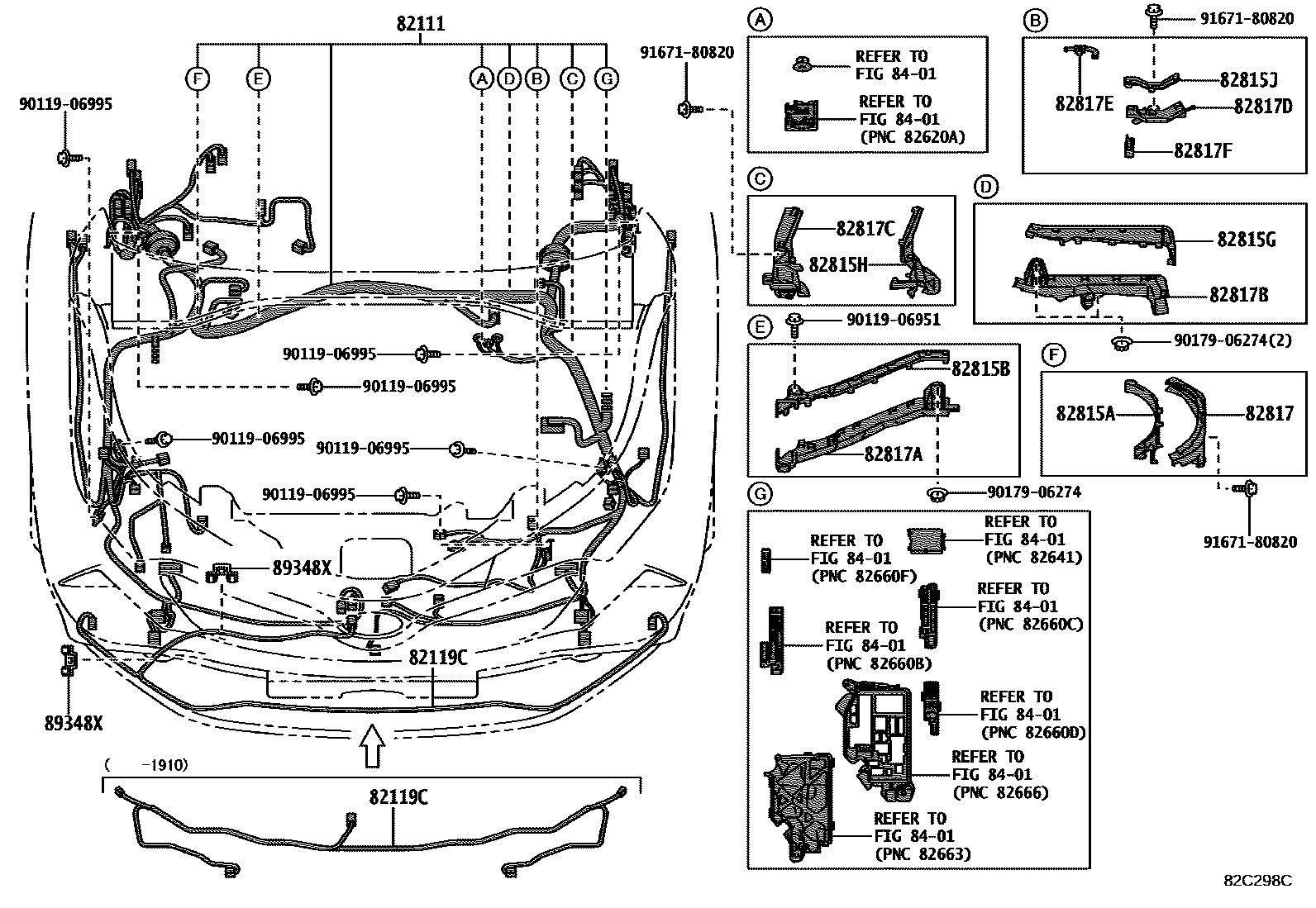

82111WIRE, ENGINE ROOM MAIN

main82111-10G50iNGX10,50..LUX201910-202008

main82111-10G51iNGX10,50..LUX202008

main82111-10G60iNGX10,50..ACTV201910-202008

main82111-10G61iNGX10,50..ACTV202008

main82111-10G70iZYX10..LUX201910-202008

main82111-10G71supersedes 82111-10G81iZYX10..LUX202008

GR SPORT

main82111-10G80iZYX10..ACTV201910-202008

main82111-10C30supersedes 82111-10A90iNGX10..6F201612-201805

HEADLAMP-LED & *AHB

main82111-10C31supersedes 82111-10A91iNGX10..6F201805-201910

HEADLAMP-LED & *AHB

main82111-10D10supersedes 82111-10D00iNGX10,50..CVT201612-201805

HEADLAMP-LED & *AHB

main82111-10D11supersedes 82111-10D01iNGX10,50..CVT201805-201910

HEADLAMP-LED & *AHB

main82111-10D20supersedes 82111-10A90iNGX10..6F201612-201805

PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HAROGEN

main82111-10D30supersedes 82111-10A90iNGX10..6F201612-201805

PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-LED

main82111-10D40supersedes 82111-10D00iNGX10,50..CVT201612-201805

PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-HAROGEN

main82111-10D50supersedes 82111-10D00iNGX10,50..CVT201612-201805

PRE-COLLISION SYSTEM-WITHOUT&HEADLAMP-LED

82119CWIRE, ENGINE ROOM, NO.5

main82119-10010iNGX10,50201612-201910

main82119-10030iNGX10,50,ZYX10..ACTV201910

main82119-10050iNGX10,50,ZYX10..LUX201910

main82119-10080iZYX10..ACTV202008

GR SPORT

82815ACOVER, WIRING HARNESS PROTECTOR

main82815-12J00iNGX10,50202008

main82815-47880iZYX10201910

main82815-F4240iNGX10,50201910-202008

82815BCOVER, WIRING HARNESS PROTECTOR

main82815-12L90iNGX10,50202008

main82815-47C20iZYX10201910

main82815-F4250iNGX10,50201612-201910

82815GCOVER, WIRING HARNESS PROTECTOR NO.5

main82815-12L80iNGX10,50202008

main82815-47C90iZYX10201910

main82815-F4260iNGX10,50201612-201910

82815HCOVER, WIRING HARNESS PROTECTOR NO.6

main82815-12L70iNGX10,50202008

main82815-47D00iZYX10201910

main82815-F4270iNGX10,50201910-202008

82815JCOVER, WIRING HARNESS PROTECTOR, NO.7

main82815-12L40iNGX10,50202008

main82815-47D30iZYX10201910

main82815-F4280iNGX10,50201910-202008

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-12W50iNGX10,50202008

main82817-47N30iZYX10201910

main82817-F4270iNGX10,50201612-201910

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-12Z80iNGX10,50202008

main82817-47N40iZYX10201910

main82817-F4280iNGX10,50201910-202008

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-12Z70iNGX10,50202008

main82817-47N60iZYX10201910

main82817-F4290iNGX10,50201910-202008

82817CPROTECTOR, WIRING HARNESS, NO.4

main82817-12Z60iNGX10,50202008

main82817-47N70iZYX10201910

main82817-F4300iNGX10,50201910-202008

82817DPROTECTOR, WIRING HARNESS, NO.5

main82817-12Z20iNGX10,50202008

main82817-47P00iZYX10201910

main82817-F4310iNGX10,50201910-202008

82817EPROTECTOR, WIRING HARNESS, NO.6

main82817-47P10iZYX10201910

main82817-F4320iNGX10,50201612-201910

82817FPROTECTOR, WIRING HARNESS, NO.7

main82817-12Z50iNGX10,50202008

main82817-F4470iNGX10,50201910-202008

8401

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050×2iNGX10,50,ZYX10201910

9011906951

main90119-06951

9011906995

main90119-06995

9017906274

main90179-06274

9167180820

main91671-80820

20 parts on this diagram · 17 diagrams in section
