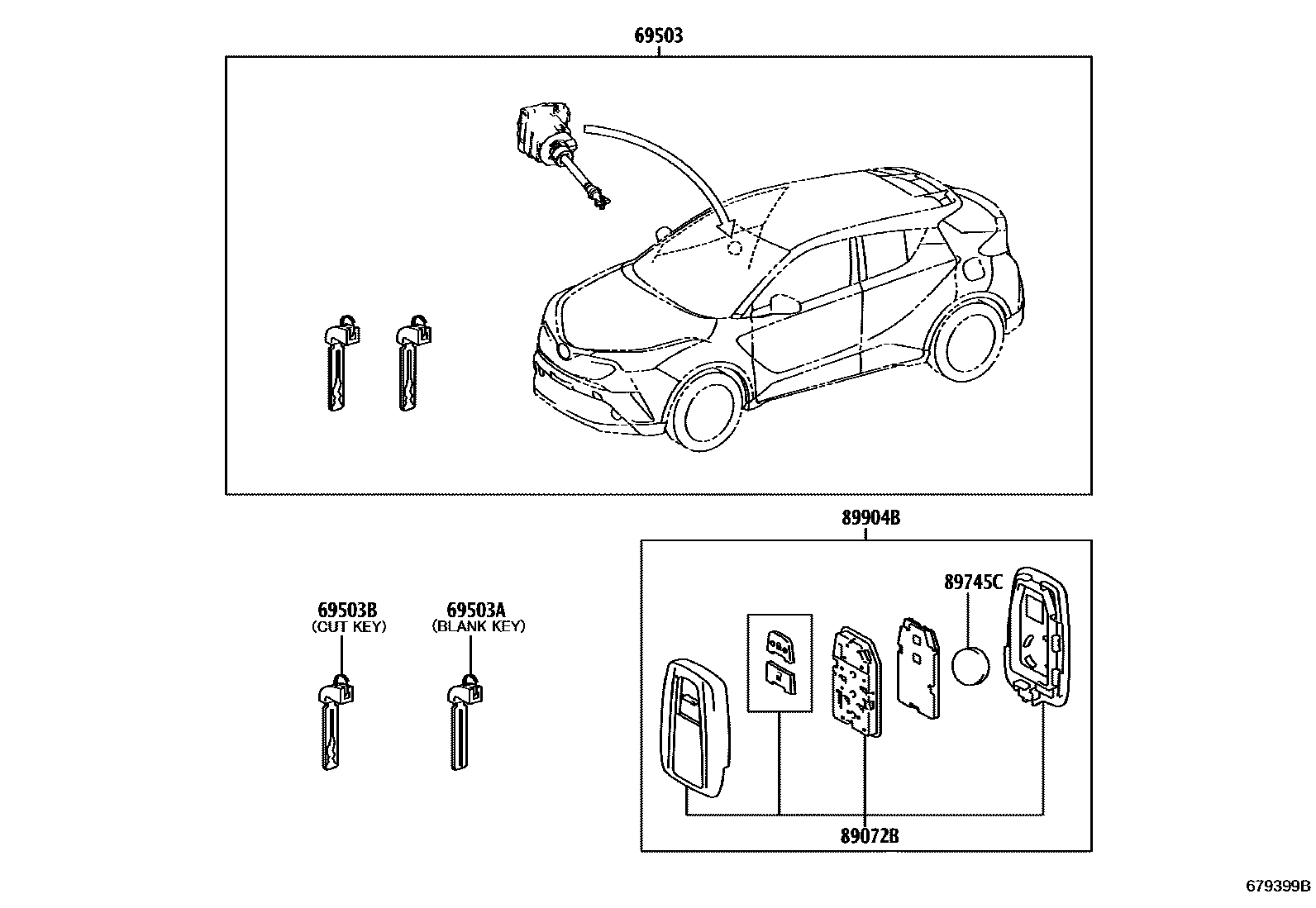

LOCK CYLINDER SET

0001 1W(SMART ENTRY) 0003 1W/O(SMART ENTRY) 0004 1W/O(SMART ENTRY)

69503CYLINDER SET, LOCK

main69005-10410iNGX10,50..LUX201612-201910

main89704-10040supersedes 89704-10030iNGX10,50..ACTV201612-201805

KEY PLATE-WIRELESS KEY(2)

main89704-10041supersedes 89704-10031iNGX10,50..ACTV201805-201910

KEY PLATE-WIRELESS KEY(2)

main89704-10042supersedes 89704-10032iNGX10,50..ACTV201910-202008

KEY PLATE-WIRELESS KEY(2)

main89704-10050iNGX10..CVT..ACTV201711-201805

SINGAPORE SPEC&KEY PLATE-WIRELESS KEY(2)

main89704-10051iNGX10..CVT..ACTV201805-201910

SINGAPORE SPEC&KEY PLATE-WIRELESS KEY(2)

main89704-10052iNGX10..ACTV201910-202008

SINGAPORE SPEC&KEY PLATE-WIRELESS KEY(2)

69503AKEY, BLANK

main69515-16110iNGX10,50,ZYX10202011

MASTER KEY,W(*68)

main69515-47030iZYX10;NGX10,50..LUX201910-202010

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-16100×2iNGX10,50,ZYX10202011

MASTER KEY,W(*68)

main69515-47020×2iZYX10;NGX10,50..LUX201910-202010

MASTER KEY,W(*68)

89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)

main89072-10030×2iNGX10,50..LUX201910

main89072-10060×2iZYX10201910-202008

main89072-10040×2iNGX10..CVT..LUX201711-201910

SINGAPORE SPEC

89745CBATTERY, TRANSMITTER

main89745-50020iNGX10,50..LUX201612-201910

CR2032

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-10030×2iNGX10,50..LUX201612-201910

main89904-10031×2iNGX10,50,ZYX10202008-202206

main89904-10060×2iZYX10201910-202008

main89904-10070×2iNGX10,50,ZYX10202207

main89904-10040×2iNGX10..LUX201910-202008

SINGAPORE SPEC

6 parts on this diagram · 3 diagrams in section
