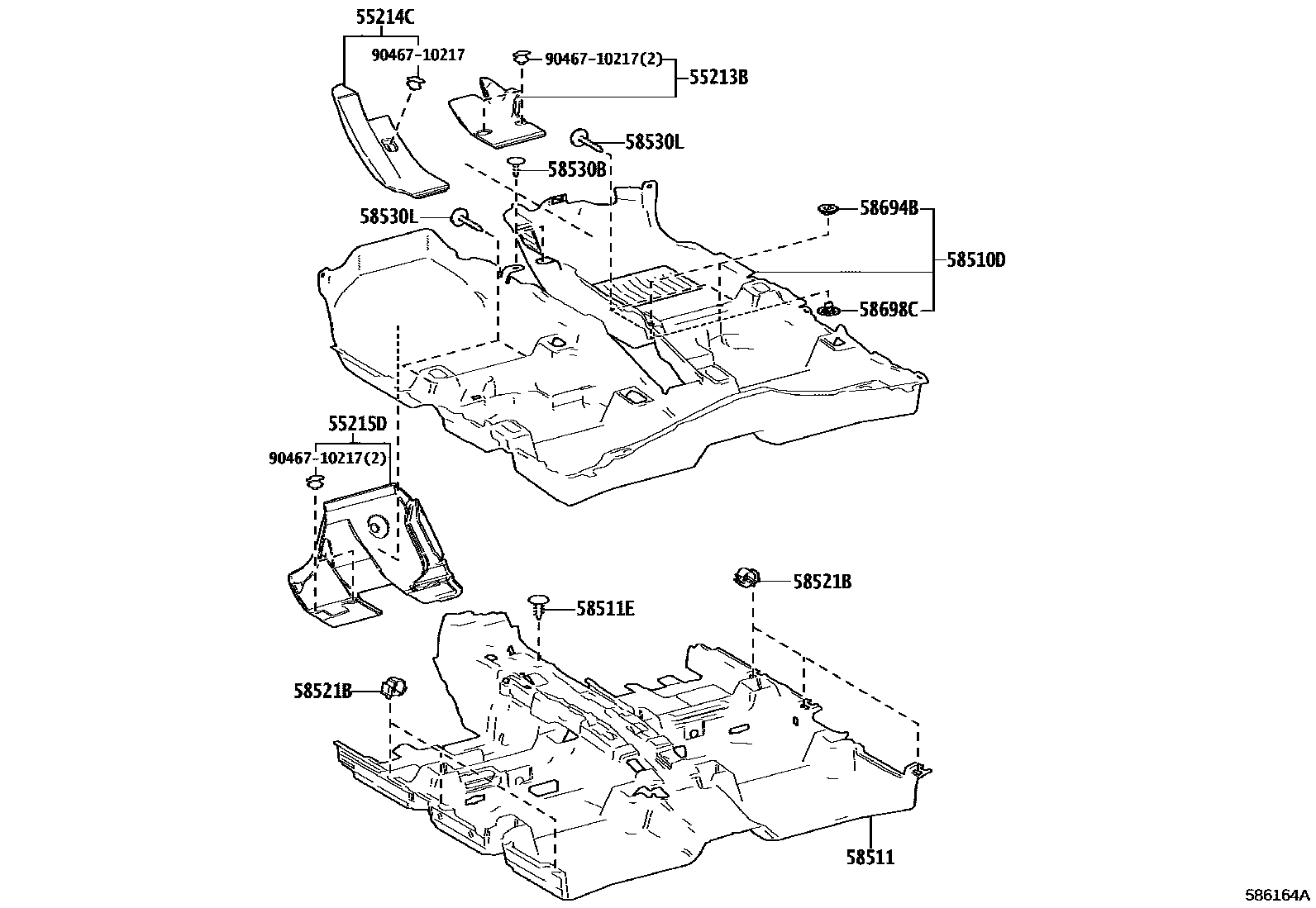

MAT & CARPET

0001 1 0002 1

55213BPAD, DASH PANEL INSULATOR, NO.1

main55213-10370iNGX10,50201612-201910

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-10260iNGX10,50201612-201910

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-10150iNGX10,50,ZYX10201910

58510DCARPET ASSY, FLOOR, FRONT

main58510-10A00-C2iNGX10201612-201910

BLACK,TRIM2#

main58510-10A01-C2iNGX10201910

BLACK,TRIM2#

main58510-10A30-C1iNGX50201612-201910

BLACK,TRIM2#

main58510-10A31-C1iNGX50201910

BLACK,TRIM2#

main58510-10A61-C0iZYX10201910

BLACK,TRIM2#

58511MAT, FLOOR, FRONT

main58511-10520iNGX10201612-201910

main58511-10521iNGX10,ZYX10201910

main58511-10540iNGX50201612-201910

main58511-10541iNGX50201910

58511ECLIP(FOR FRONT FLOOR MAT)

main90467-07042-C0iNGX10,50201612-201702

BLACK

sub90467-06175

main90467-07042-C4iNGX10,50201702-201910

BLACK

sub90467-06175

58521BHOOK, FLOOR CARPET

main58521-47030×6iNGX10,50201612-201910

58530BCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7×2iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

58530LCLIP, FLOOR CARPET, CENTER

main64726-10020-C2×4iNGX10,50201612-201910

BLACK,TRIM2#

58694BPLATE, MAT SET, UPPER

main58694-78010×2iNGX10,50201612-201910

58698CPLATE, MAT SET, LOWER

main58698-78010×2iNGX10,50201612-201910

9046710217

main90467-10217

12 parts on this diagram · 2 diagrams in section
