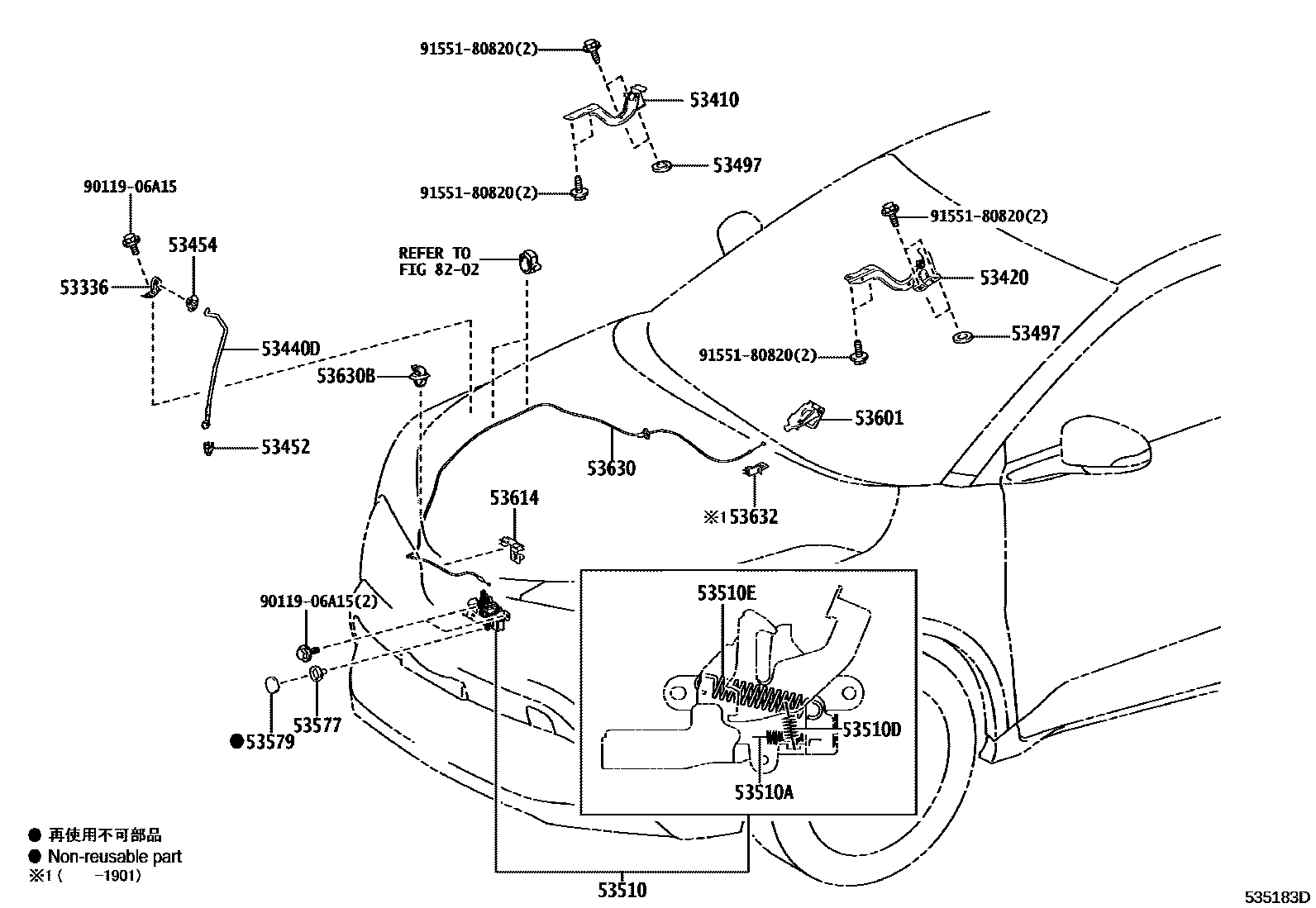

HOOD LOCK & HINGE

53336BRACKET, HOOD STAY, RH

main53336-10010iNGX10,50201612-201910

53410HINGE ASSY, HOOD, RH

main53410-10100iNGX10,50201612-201910

53420HINGE ASSY, HOOD, LH

main53420-10090iNGX10,50201612-201910

53440DSUPPORT ASSY, HOOD

main53440-10090iNGX10,50201612-201910

53452HOLDER, HOOD STAY

main53452-10010iNGX10,50201612-201910

53454CLIP, HOOD SUPPORT ROD

main53454-12030iNGX10,50201612-201910

53497PAD, HOOD HINGE, NO.1

main53497-42010iNGX10,50201806-201910

T=0.5

53510LOCK ASSY, HOOD

main53510-10240iNGX10,50201612-201910

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09052iNGX10,50201612-201910

WD=0.9,CW=20.75

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iNGX10,50201612-201910

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-16077iNGX10,50201612-201910

WD=1.6,CW=12

53577BOLT, HOOD LOCK

main53577-33010iNGX10,50201612-201910

53579CAP, HOOD LOCK NUT

main53579-50010iNGX10,50201612-201910

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-30100-C0iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#,4#

main53601-52010-C1iNGX10,50201612-201901

BLACK,TRIM2#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-10030iNGX10,50201612-201910

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-10270iNGX10,50201612-201901

main53630-10271iNGX10,50201901-201910

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005iNGX10,50201612-201910

53632HOLDER, HOOD LOCK CONTROL CABLE

main53632-10010iNGX10,50201612-201901

8202

9011906A15

main90119-06A15

9155180820

main91551-80820

21 parts on this diagram · 1 diagram in section
