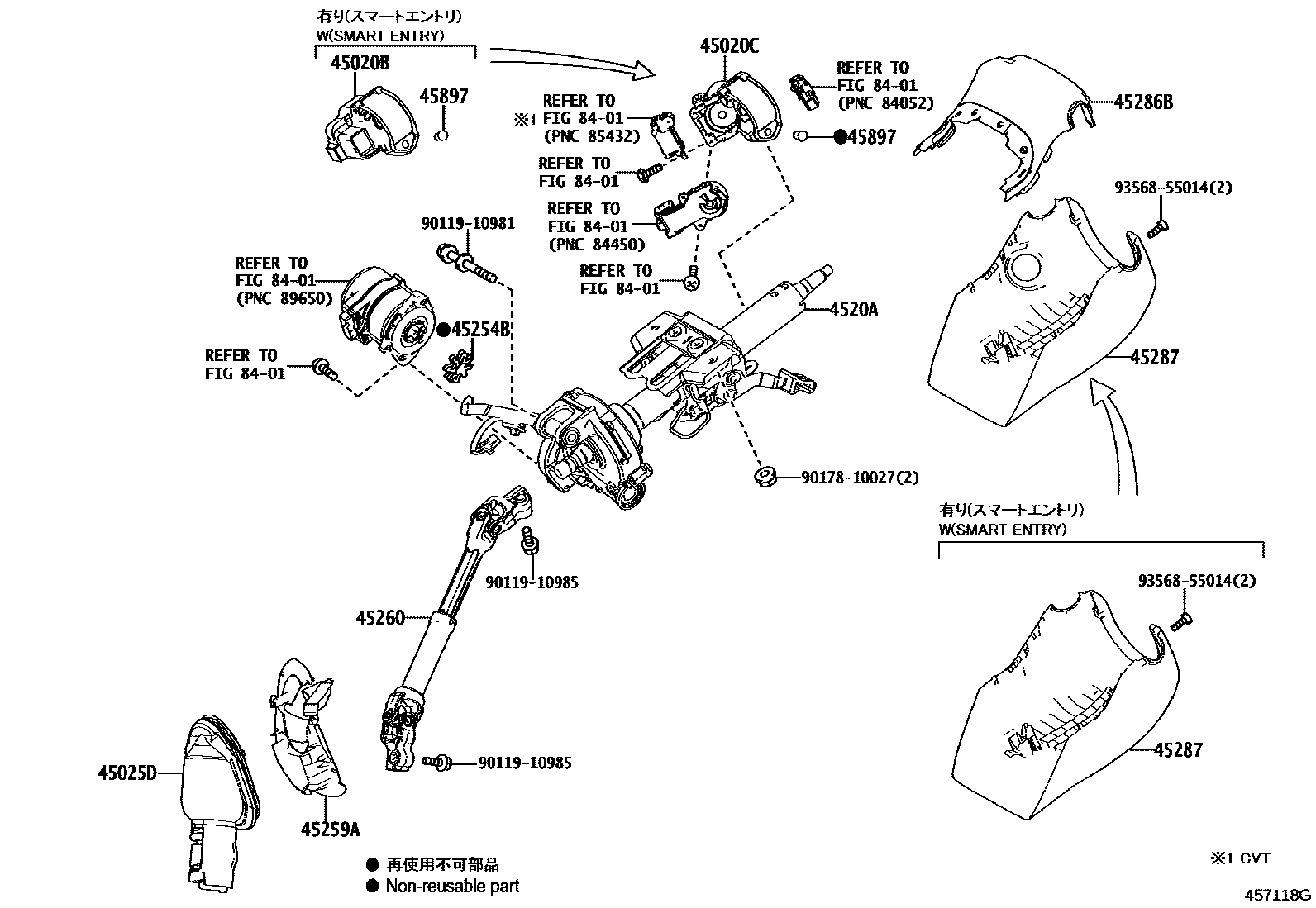

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-10120iNGX10,50..CVT..ACTV201805-201910

main45280-12410iNGX10,50..CVT..ACTV201612-201804

main45280-12430iNGX10..6F..ACTV201612-201910

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iNGX10,50..ACTV202008-202208

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-10110iNGX10,50201612-201910

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-10010iNGX10,50..LUX201612-201910

main4520A-10020iNGX10,50..ACTV201612-201910

main4520A-47051iNGX10,50,ZYX10202208

45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT

main45254-28040iNGX10,50201612-201910

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-10010iNGX10,50201612-201910

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-10030iNGX10,50201612-201910

45286BCOVER, STEERING COLUMN, UPR

main45286-10280-C1iNGX10,50,ZYX10..LUX201910

BLACK,TRIM2#

main45286-F4010-C1iNGX10,50..ACTV201612-201910

BLACK,TRIM2#

main45286-F4010-C2iNGX10,50..ACTV201910-202008

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-10070-C1iNGX10,50..ACTV202008

BLACK,TRIM2#

main45287-F4010-C1iNGX10,50..ACTV201612-201910

BLACK,TRIM2#

main45287-F4010-C2iNGX10,50..ACTV201910-202008

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iNGX10,50,ZYX10201910-202208

8401

9011910981

main90119-10981

9011910985

main90119-10985

9017810027

main90178-10027

9356855014

main93568-55014

15 parts on this diagram · 1 diagram in section
