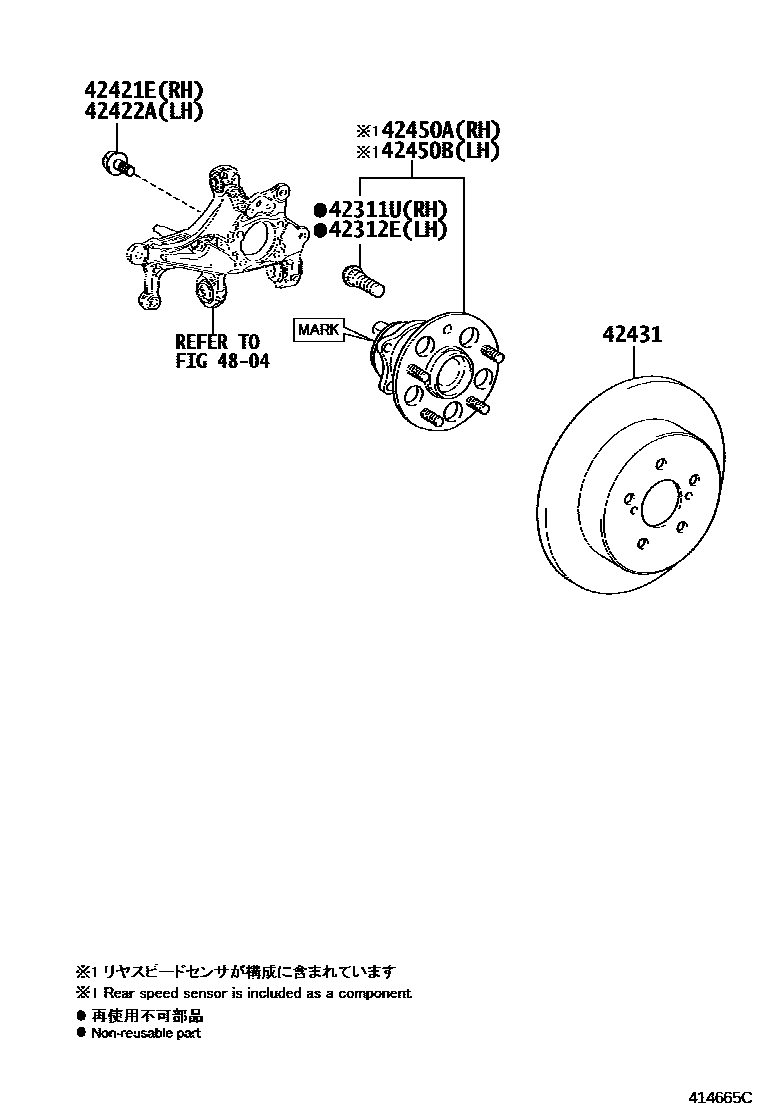

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iNGX10,50,ZYX10201910

main90942-02082×5iNGX10,50201612-201910

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iNGX10,50,ZYX10201910

main90942-02082×5iNGX10,50201612-201910

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350×4iNGX10,50201612-201910

main90105-12406×4iNGX10,50,ZYX10201910

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350×4iNGX10,50201612-201910

main90105-12406×4iNGX10,50,ZYX10201910

42431DISC, REAR

main42431-78010×2iNGX10,50201612-201910

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-10020iNGX10201612-201910

main42450-33080iNGX10,ZYX10201910-202002

MARK=89544-33020

main42450-42060iNGX10,ZYX10202002

MARK=89544-12030

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-10020iNGX10201612-201910

main42450-33080iNGX10,ZYX10201910-202002

main42450-42060iNGX10,ZYX10202002

4804

8 parts on this diagram · 3 diagrams in section
