IGNITION COIL & SPARK PLUG / GLOW PLUG

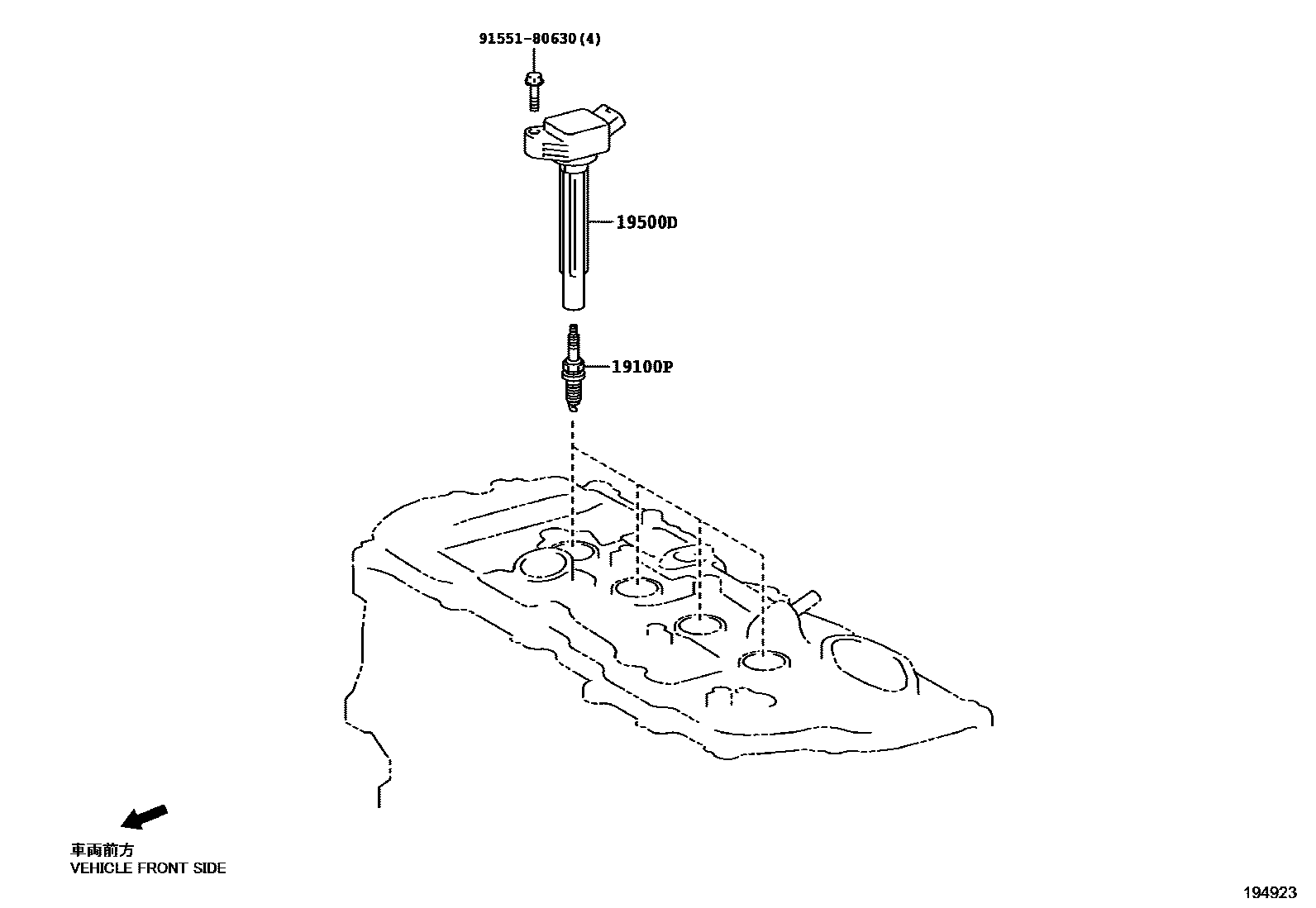

Parts diagram

19100PPLUG, SPARK

main90919-01285i201612-201910

DILKAR8J9G

main90919-01298i201910

FC16HR-CY9

19500COIL ASSY, IGNITION

main90919-02272i201910

19500DCOIL, IGNITION, NO.1

main90919-02271i201612-201910

9155180630

main91551-80630

4 parts on this diagram · 2 diagrams in section
