V-BELT

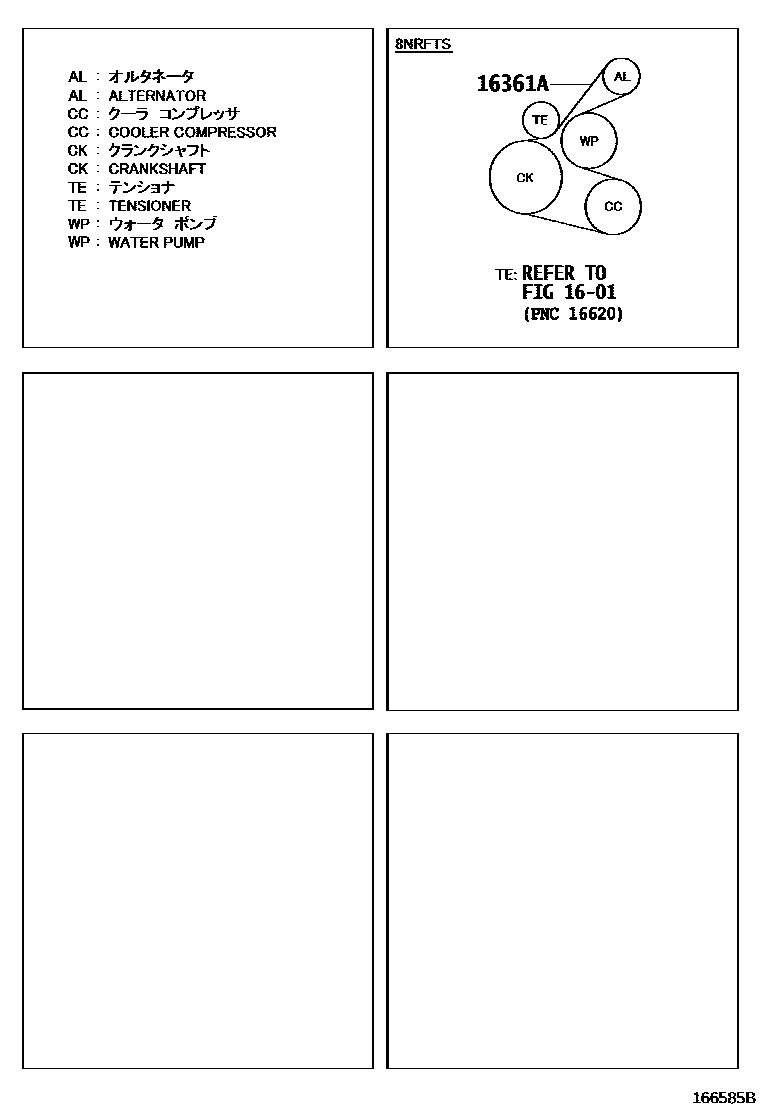

Parts diagram

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02730i201612-201910

main90916-02758i201910

2 parts on this diagram · 1 diagram in section
