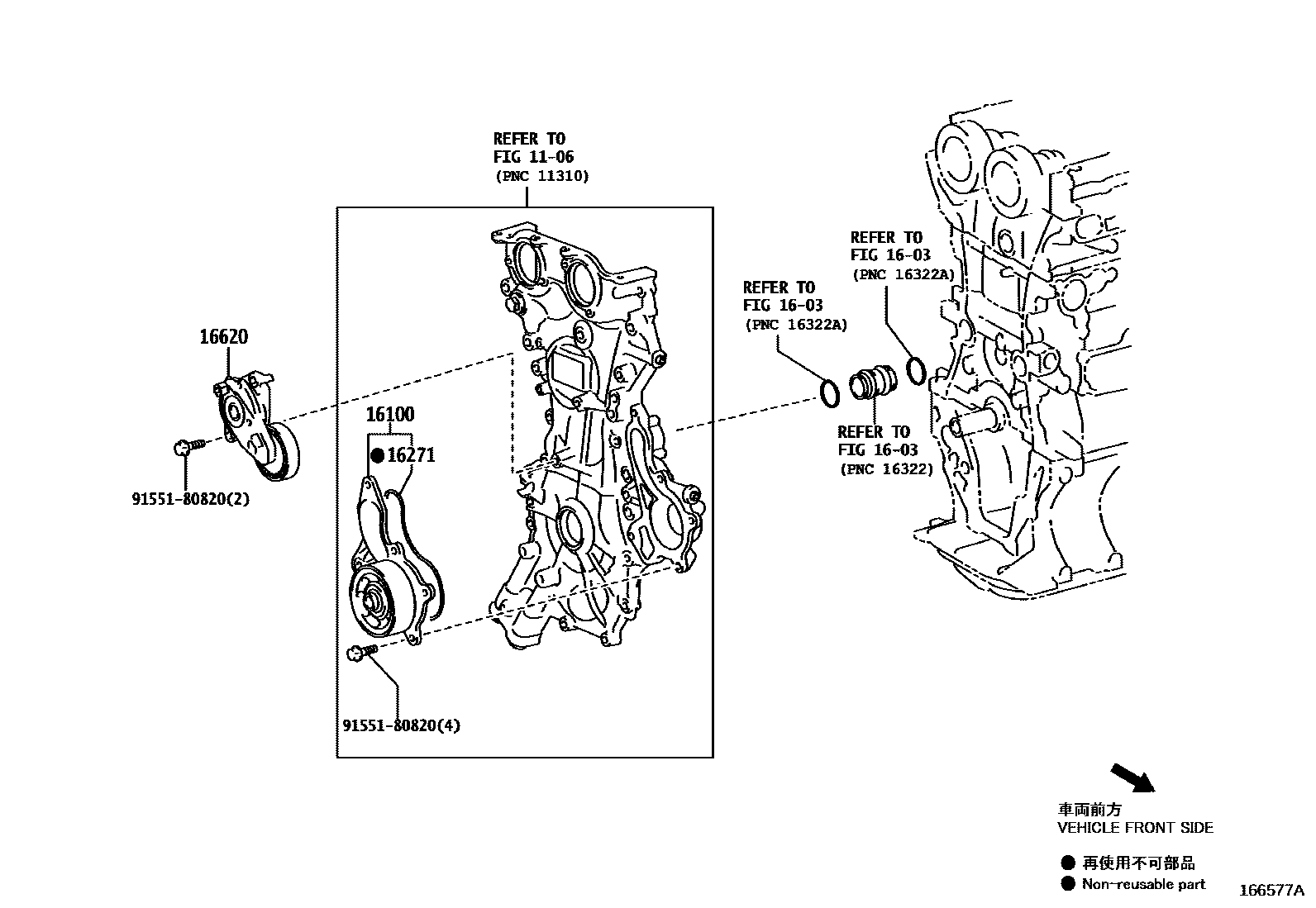

WATER PUMP

0001 1 0002 1

1106

1603

16100PUMP ASSY, ENGINE WATER

main16100-80014i8NRFTS..NGX10,50201612-201910

main161A0-39035i2ZRFXE..ZYX10201910

16271GASKET, WATER PUMP

main16271-37020i2ZRFXE..ZYX10201910

main16271-47060i8NRFTS..NGX10,50201612-201910

16620TENSIONER ASSY, V-RIBBED BELT

main16620-47060i8NRFTS..NGX10,50201612-201701

main16620-47061i8NRFTS..NGX10,50201701-201910

9155180820

main91551-80820

6 parts on this diagram · 2 diagrams in section
