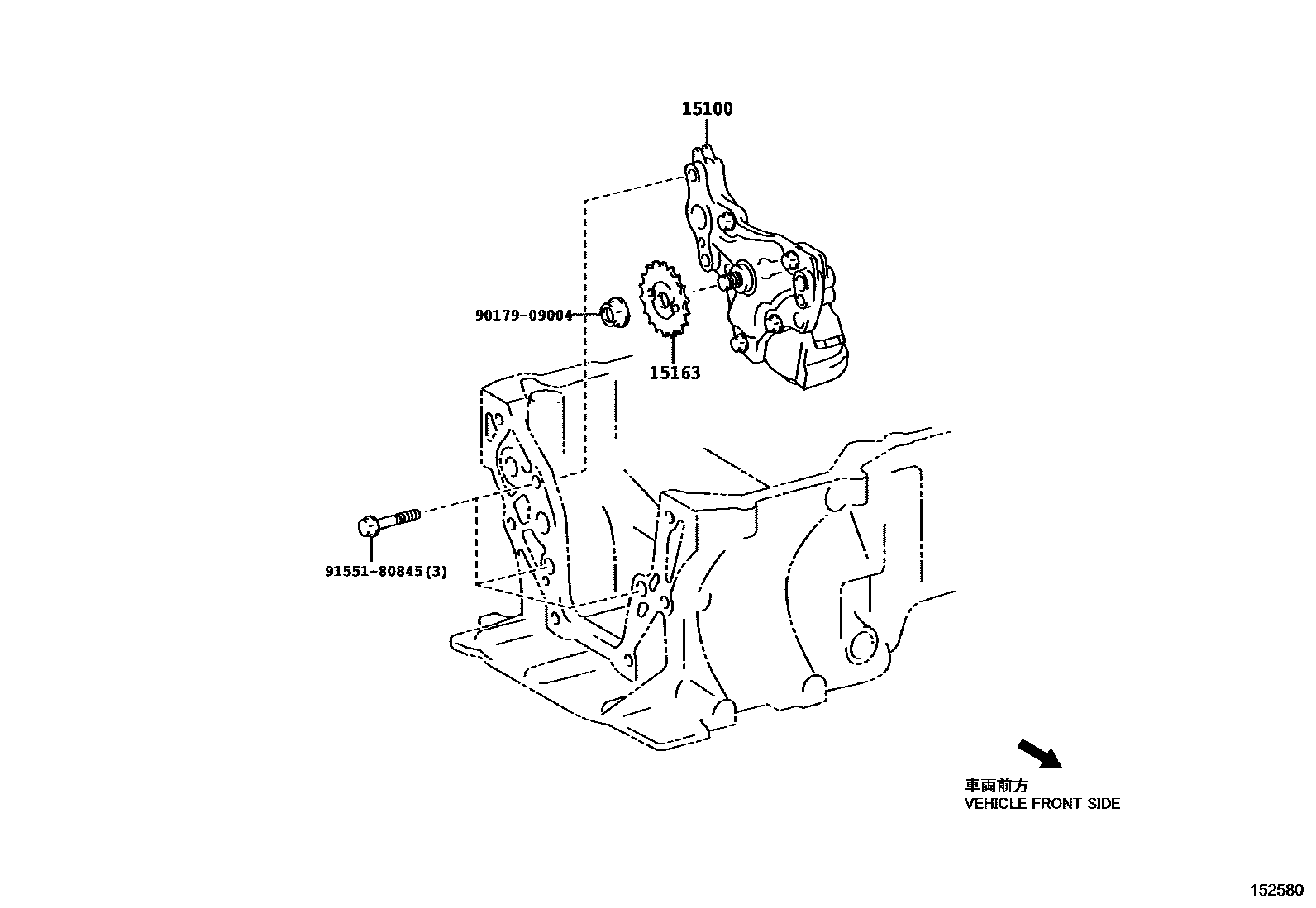

ENGINE OIL PUMP

0001 1 0002 1

15100PUMP ASSY, OIL

main15100-37060i2ZRFXE..ZYX10201910-202107

main15100-37070i2ZRFXE..ZYX10202108

main15100-47050i8NRFTS..NGX10,50201612-201910

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-28010i2ZRFXE..ZYX10201910

main15163-33010i8NRFTS..NGX10,50201612-201910

9017909004

main90179-09004

9155180845

main91551-80845

4 parts on this diagram · 2 diagrams in section
