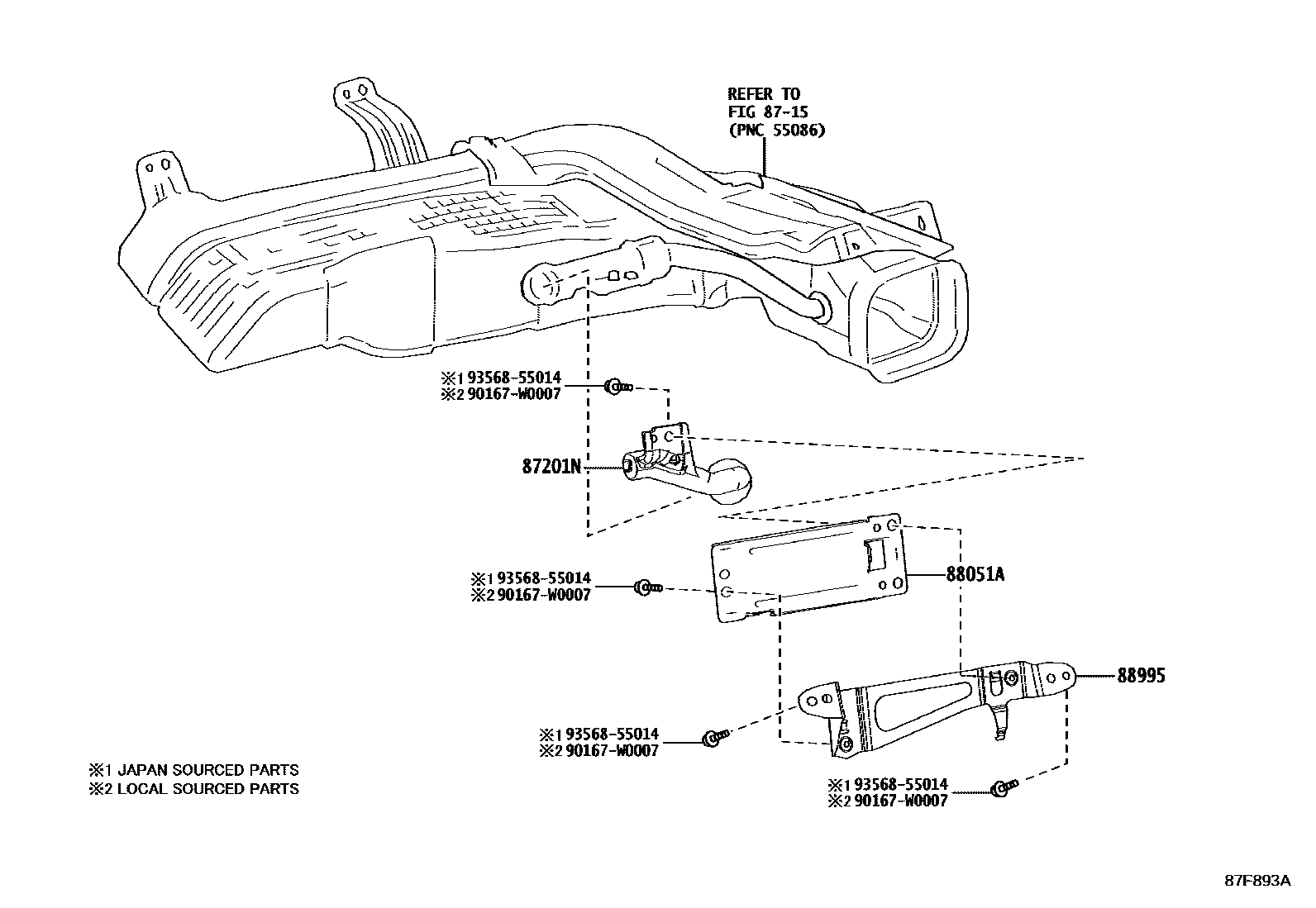

AIR PURIFIER OR ION GENERATOR

0001 1 0002 1

8715

87201NDUCT SUB-ASSY, AIR

main87202-F4010iNGX10,50..LHD..E201610-201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main87202-F4020iNGX10..RHD..E201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88051AGENERATOR SUB-ASSY,ION

main88051-28060iNGX10,50,ZYX10..E201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

88995BRACKET,ION GENERATOR, NO.1

main55479-F4010iNGX10,50..LHD..E201610-201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

main55479-F4020iNGX10..RHD..E201909

ANTI-BACTERIA & MINUS ION SUPPLY-WITH

90167W0007

main90167-W0007

9356855014

main93568-55014

6 parts on this diagram · 2 diagrams in section
