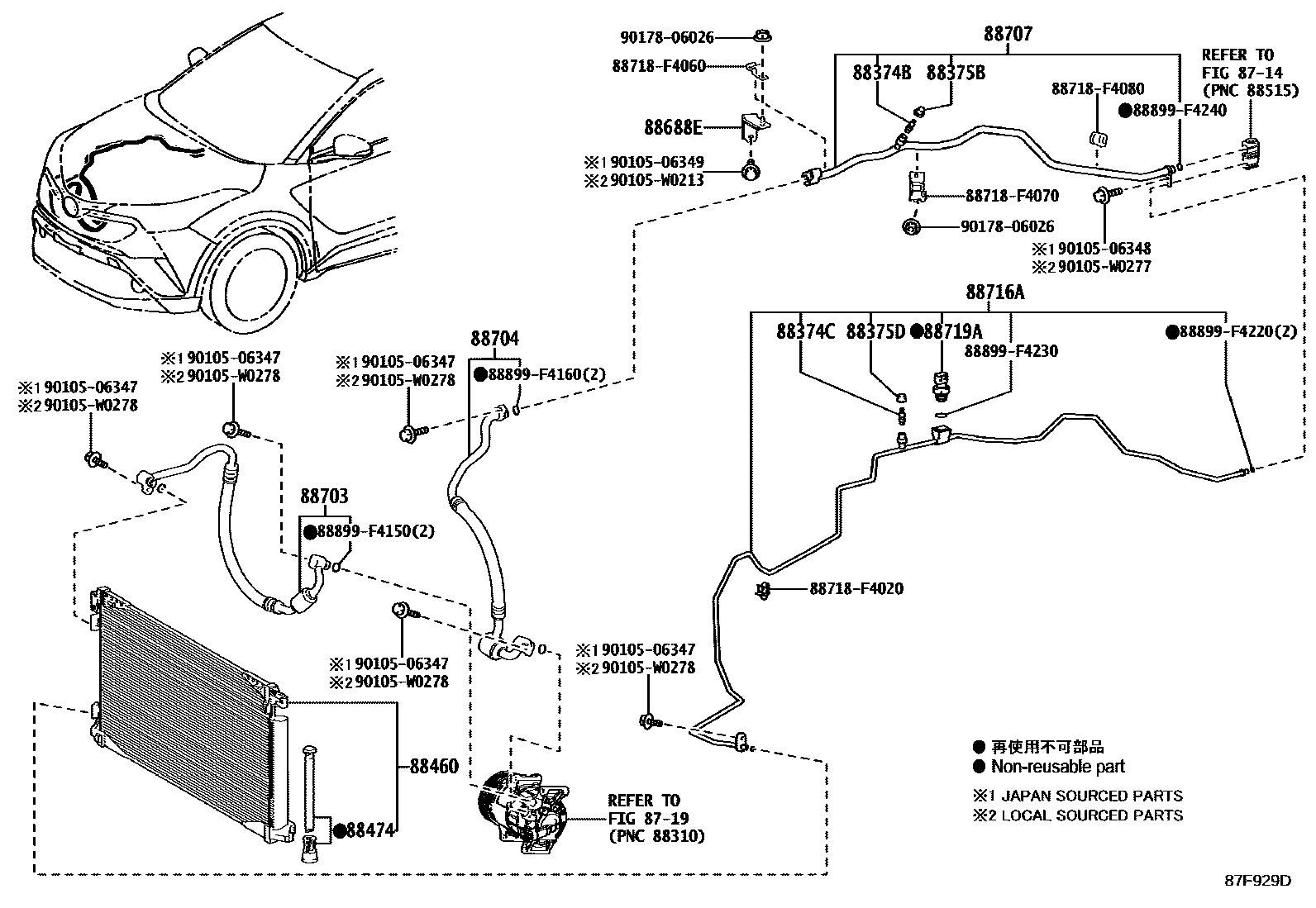

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZYX10201909

main88899-F4170iNGX10,50201909

88374CVALVE, SERVICE, NO.2

main88374-33070iZYX10201909

main88899-F4170iNGX10,50201610-201909

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZYX10201909

main88899-F4210iNGX10,50201610-201909

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZYX10201909

main88899-F4190iNGX10,50201610-201909

88460CONDENSER ASSY, COOLER

main88450-F4020iNGX10,50201610-201909

main88450-F4021iNGX10,50202107

main88460-F4040iZYX10201909

88474DRYER, COOLER

main88474-12020iZYX10201909

main88899-F4140iNGX10,50201610-201909

main88899-F4400iNGX10,50201909

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-F4020iNGX10201610-201909

main88688-F4030iNGX50201909

main88688-F4040iZYX10201909

88703HOSE SUB-ASSY, DISCHARGE

main88703-F4020iNGX10,50201610-201909

main88703-F4030iZYX10201909-202107

main88703-F4031iZYX10202108

88704HOSE SUB-ASSY, SUCTION

main88704-F4020iNGX10,50201610-201909

main88704-F4030iZYX10201909-202107

main88704-F4031iZYX10202108

88707PIPE SUB-ASSY, SUCTION

main88707-02550iZYX10201909

main88717-F4040iNGX10,50..LHD201610-201909

main88717-F4050iNGX10..RHD201909

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88710-02E11iZYX10201909

main88716-F4060iNGX10,50..LHD201610-201909

main88716-F4070iNGX10,50..RHD201610-201909

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iZYX10201909

main88719-F4010iNGX10,50201610-201909

88718F4020PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4020

88718F4060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4060

88718F4070PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4070

88718F4080PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-F4080

88899F4150COVER, EVAPORATOR

main88899-F4150

88899F4160COVER, EVAPORATOR

main88899-F4160

88899F4220COVER, EVAPORATOR

main88899-F4220

88899F4230COVER, EVAPORATOR

main88899-F4230

88899F4240COVER, EVAPORATOR

main88899-F4240

9010506347

main90105-06347

9010506348

main90105-06348

9010506349

main90105-06349

90105W0213

main90105-W0213

90105W0277

main90105-W0277

90105W0278

main90105-W0278

9017806026

main90178-06026

30 parts on this diagram · 3 diagrams in section
