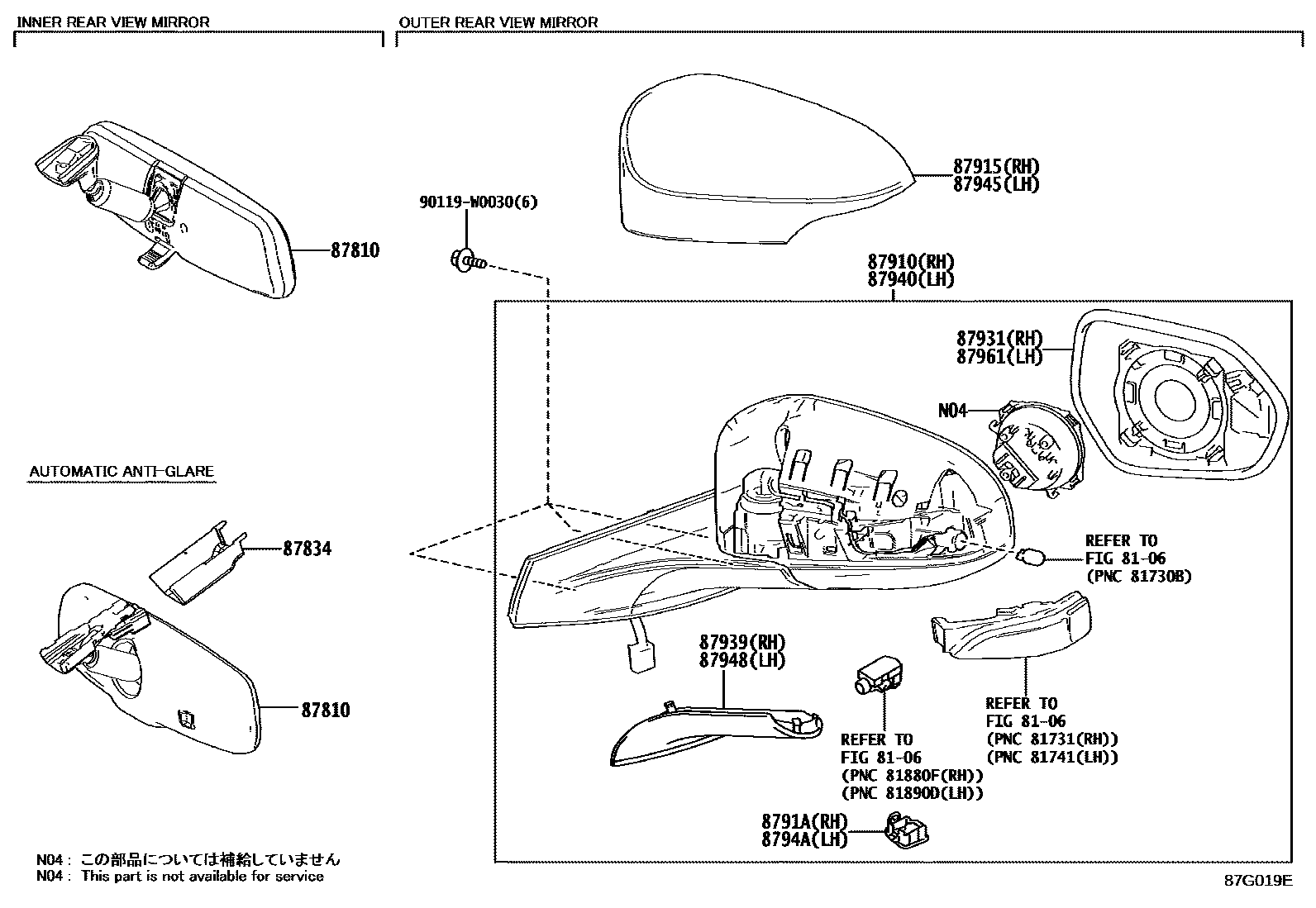

MIRROR
8106
87810MIRROR ASSY, INNER REAR VIEW
SOUTH AFRICA SPEC
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
87915COVER, OUTER MIRROR, RH
PAINT REQ.
8791ACOVER, OUTER MIRROR, RH NO.2
SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
87931OUTER MIRROR, RH
SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
87939COVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
87945COVER, OUTER MIRROR, LH
PAINT REQ.
87948COVER, OUTER MIRROR HOLE, LH
8794ACOVER, OUTER MIRROR, LH NO.2
SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
87961MIRROR OUTER, LH
SOUTH AFRICA SPEC&BLIND SPOT MONITOR-WITH
90119W0030
main90119-W0030
14 parts on this diagram · 1 diagram in section
