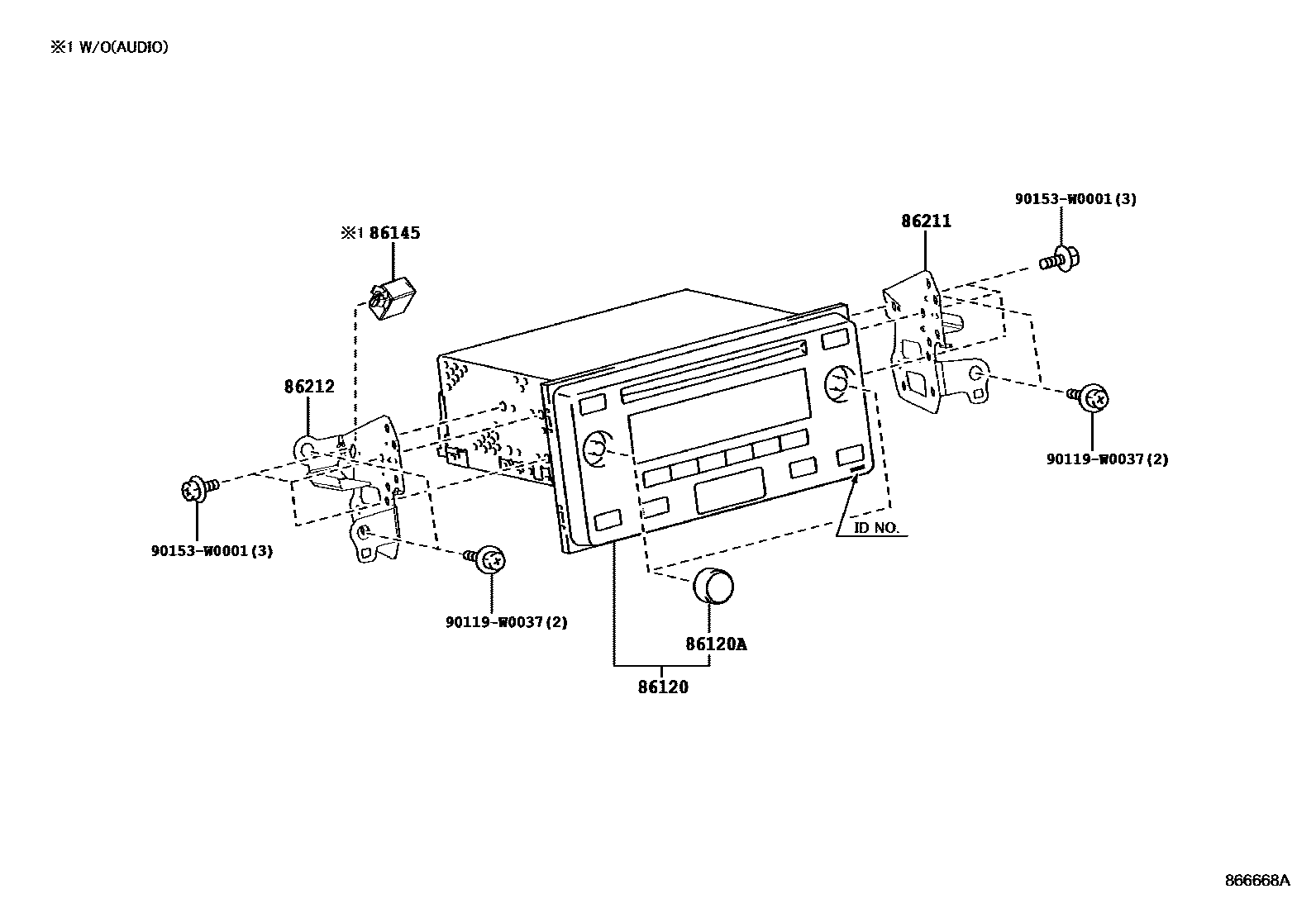

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1RECEIVER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-F4040iNGX10,50..LHD..(E,N)201610-201710

FUJITSUTEN,ID=100634

sub86120-F4041

main86120-F4030iNGX10,50..RHD..(E,N)201805-201909

FUJITSUTEN,ID=100636,SOUTH AFRICA SPEC&AUDIO-CD & 6SPEAKER & USB & *BT,SOUTH AFRICA

86120AKNOB, RADIO RECEIVER SWITCH

86145CONNECTOR, ANTENNA MALE

main86145-52010iNGX10,50..E,N201610-201909

AUDIO-RADIO LESS & 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-F4010iNGX10,50201610-201909

main86211-F4090supersedes 86211-F4010iNGX10,50201909

AUDIO-*DA, FOR GCC

86212BRACKET, RADIO, NO.2

main86212-F4010iNGX10,50201610-201909

main86212-F4090supersedes 86212-F4010iNGX10,50201909

AUDIO-*DA, FOR GCC

90119W0037

main90119-W0037

90153W0001

main90153-W0001

7 parts on this diagram · 3 diagrams in section
