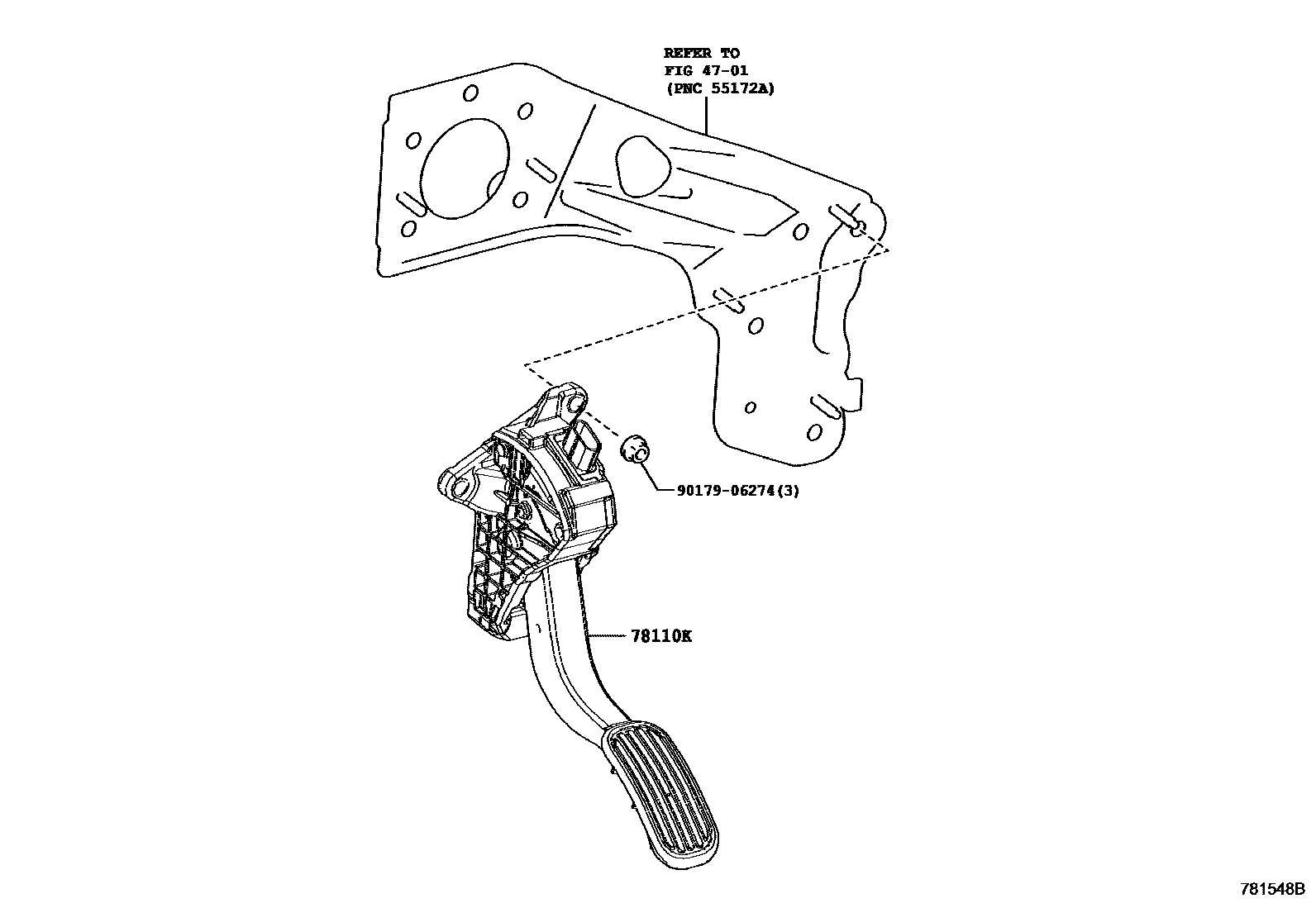

ACCELERATOR LINK

0001 1 0002 1

4701BRAKE PEDAL & BRACKET

→ Go to FIG 47-01

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-F4010iNGX10,50..LHD201610-201808

main78110-F4011iNGX10,50..LHD201809-201910

main78110-F4012iNGX10,50,ZYX10..LHD201911

main78110-F4030iNGX10,50..RHD201610-201811

main78110-F4031iNGX10,50..RHD201812-201910

main78110-F4032iNGX10..RHD201911

9017906274

main90179-06274

3 parts on this diagram · 2 diagrams in section
