LOCK CYLINDER SET
69503CYLINDER SET, LOCK
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
KEY PLATE-WIRELESS KEY(2)
JORDAN SPEC
JORDAN SPEC&KEY PLATE-WIRELESS KEY(2)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)&KEY PLATE-WIRELESS KEY(2)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)&KEY PLATE-WIRELESS KEY(2)
69503AKEY, BLANK
MASTER KEY,W(*68)
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
MASTER KEY,W(*68)
89072BHOUSING SET, DOOR CONTROL TRANSMITTER (FOR SMART KEY)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
89745CBATTERY, TRANSMITTER
CR2032
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
JORDAN SPEC
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T145/90D16)
JORDAN SPEC
JORDAN SPEC

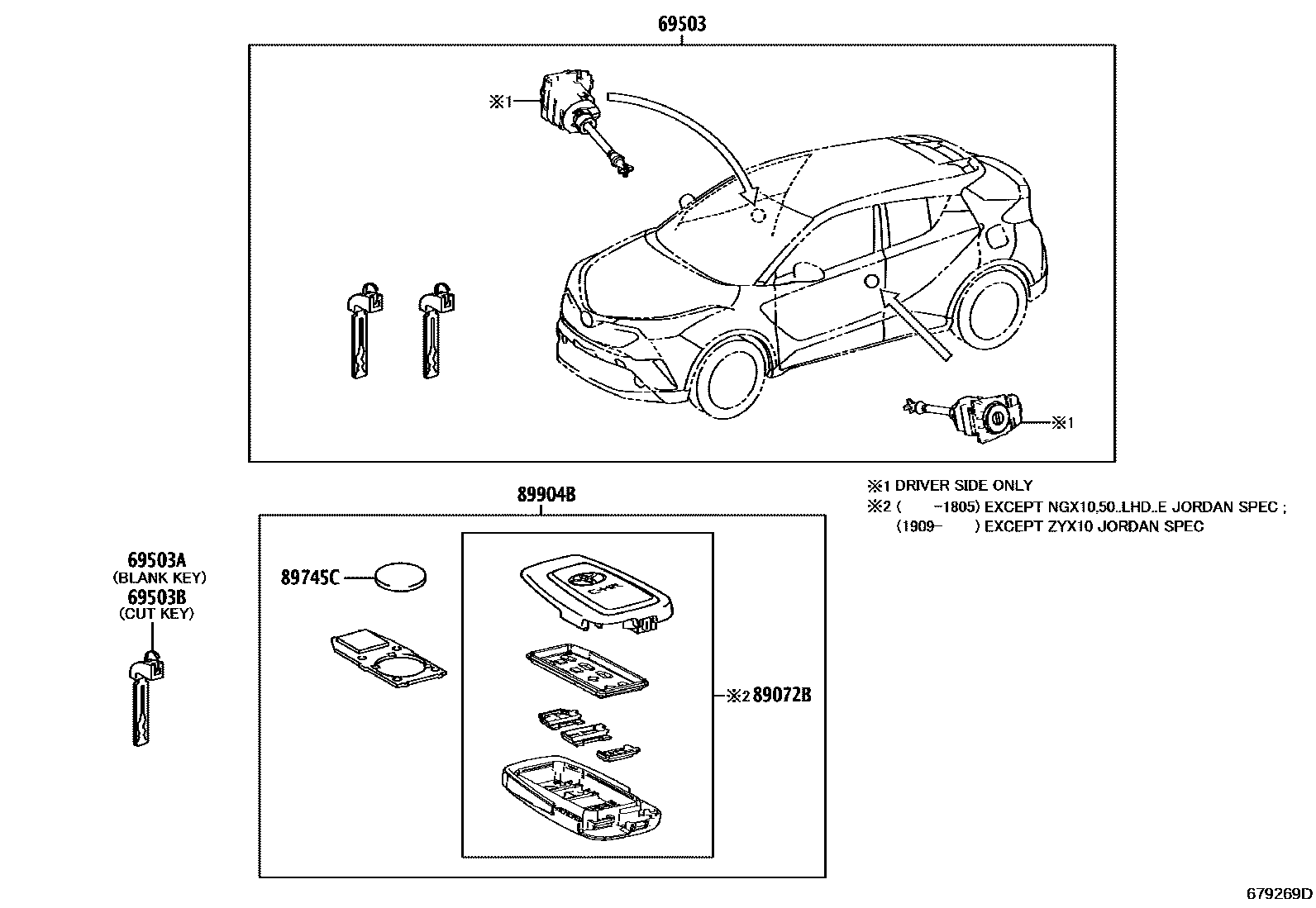

6 parts on this diagram · 2 diagrams in section
