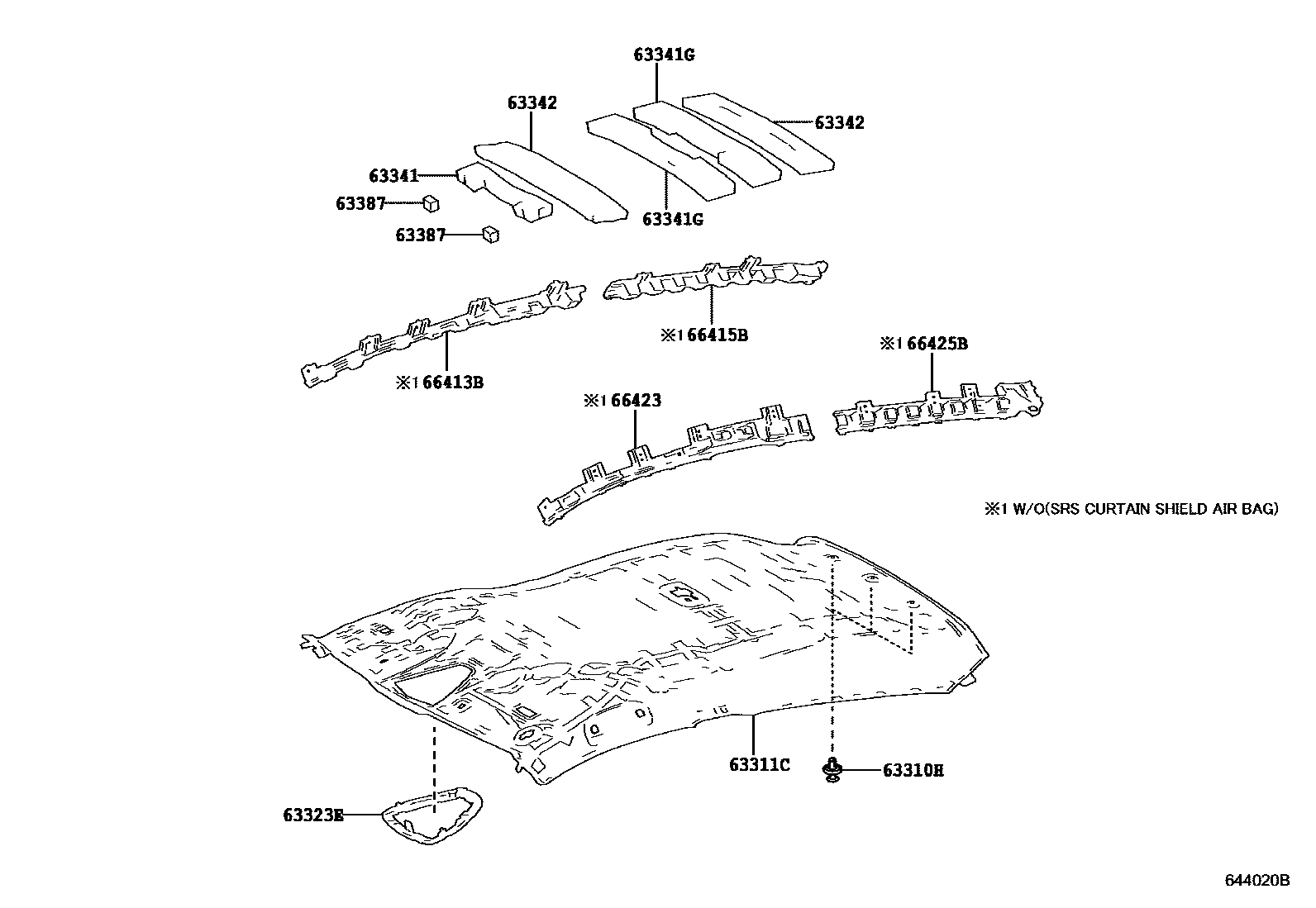

ROOF HEADLINING & SILENCER PAD

63310HCLIP(FOR ROOF HEADLINING)

main63399-10010-B0×3iNGX10,50,ZYX10..LHD..E201909

LT.GRAY,TRIM23,41

main63399-10010-C0×3iNGX10,50..LHD..E201909

BLACK,TRIM22,24

main90467-07215×3iNGX10,50201610-201909

63311CHEADLINING, ROOF

main63311-F4010-B2iNGX10,50..N201909

GRAY,TRIM21,23,41

main63311-F4010-C0iNGX10,50..N201909

BLACK,TRIM20,22,24,40,8#

main63311-F4020-B2iNGX10..D;ZYX10..N201909

GRAY,TRIM21

main63311-F4020-C0iNGX10,50..D,N201610-201909

BLACK,TRIM2#

63323ECASE, HEADLINING LAMP

main63323-F4010iNGX10,50,ZYX10201909

63341PAD, ROOF SILENCER, NO.1

main63341-F4010iNGX10,50,ZYX10201909

63341GPAD, ROOF SILENCER

main63341-F4020×2iNGX10,50201610-201909

63342PAD, ROOF SILENCER, NO.2

main63342-F4010×2iNGX10,50201610-201909

63387PAD, ROOF HEADLINING FORMING

main63387-F4010×2iNGX10,50201610-201909

66413BSPACER, SIDE RAIL, FRONT RH

main66413-F4010iNGX10..LHD..(D,N)201610-201805

JORDAN SPEC

66415BSPACER, SIDE RAIL, REAR NO.2 RH

main66414-F4010iNGX10..LHD..(D,N)201610-201909

MOROCCO SPEC

66423SPACER, SIDE RAIL, FRONT LH

main66423-F4010iNGX10..LHD..(D,N)201610-201805

JORDAN SPEC

66425BSPACER, SIDE RAIL, REAR NO.2 LH

main66424-F4010iNGX10..LHD..(D,N)201610-201805

JORDAN SPEC

11 parts on this diagram · 1 diagram in section
