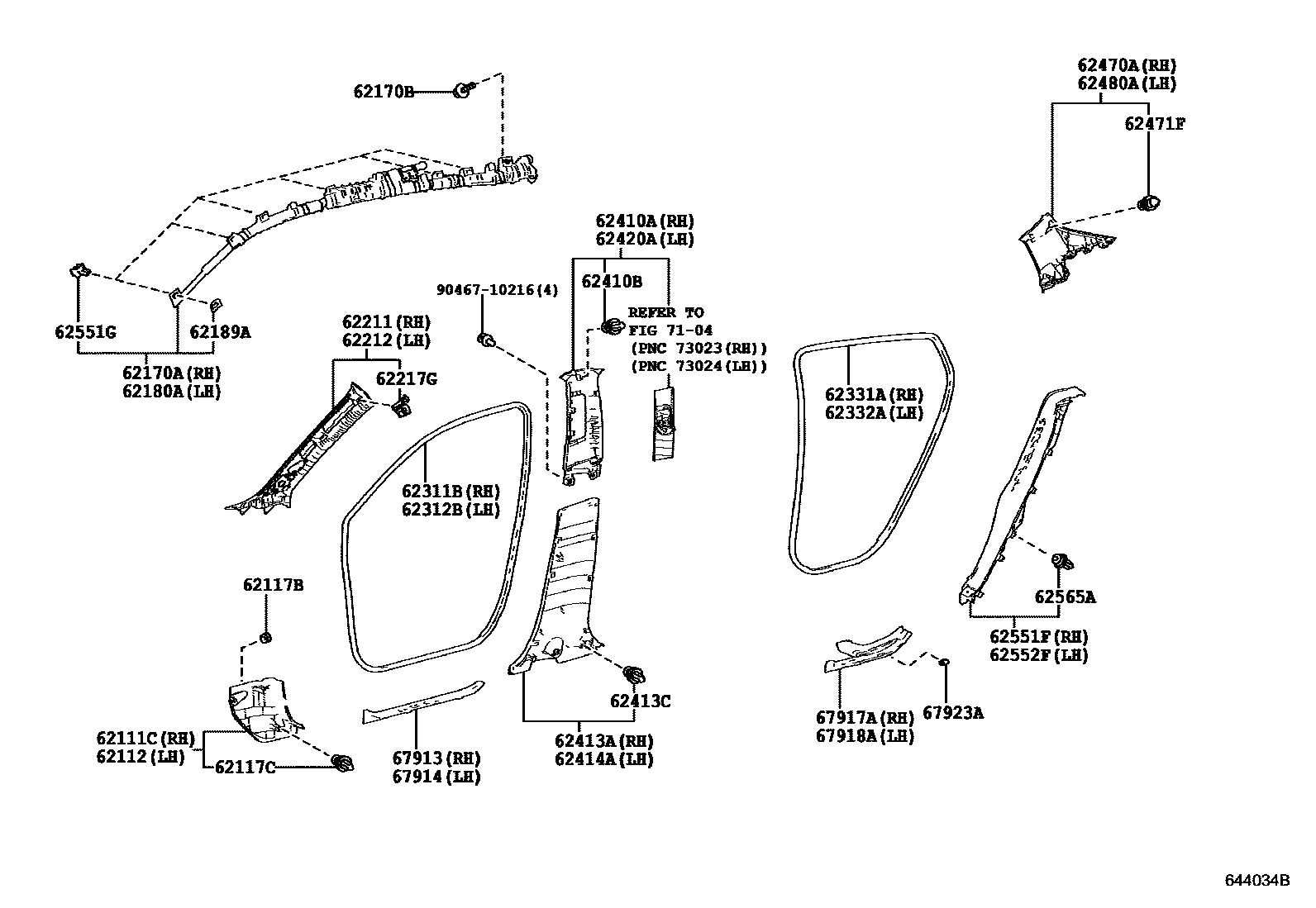

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111CBOARD, COWL SIDE TRIM, RH
EU BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
BLACK,TRIM2#
62112BOARD, COWL SIDE TRIM, LH
EU BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#,8#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
(L)
SOUTH AFRICA SPEC,(L)
MOROCCO SPEC,(L)
ALGERIA SPEC,(L)
JORDAN SPEC,(L)
MIDDLE & NEAR EAST SPEC,(L)
EGYPT SPEC,(L)
(J)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
MOROCCO SPEC
ALGERIA SPEC
JORDAN SPEC
MIDDLE & NEAR EAST SPEC
EGYPT SPEC
SOUTH AFRICA SPEC
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
62410BCLIP
62413AGARNISH, CENTER PILLAR, LOWER RH
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
62420AGARNISH ASSY, CENTER PILLER, LH
62470AGARNISH ASSY, ROOF SIDE, INNER RH
62471FCLIP (FOR ROOF SIDE, INNER UPPER GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
EU BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#,4#,8#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM2#
BLACK,TRIM2#,4#
BLACK,TRIM2#
BLACK,TRIM2#,4#
62551GCLIP
SOUTH AFRICA SPEC
MOROCCO SPEC
ALGERIA SPEC
JORDAN SPEC
MIDDLE & NEAR EAST SPEC
EGYPT SPEC
62552FGARNISH, REAR SEAT SIDE, LH
62565ACLIP (FOR REAR SEAT SIDE GARNISH)
67913PLATE, FRONT DOOR SCUFF, RH
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67923ACLAMP, DOOR SCUFF PLATE, NO.1
7104
9046710216
main90467-10216
35 parts on this diagram · 1 diagram in section
