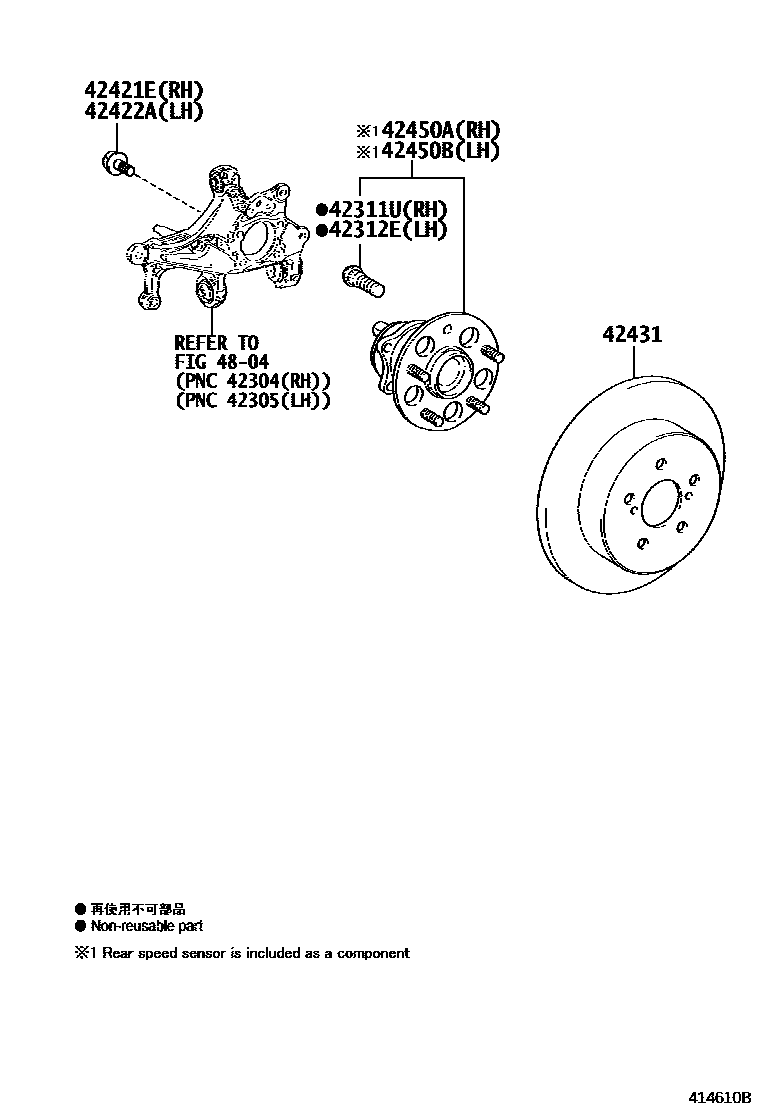

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02082iNGX10,50201610-201909

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02082iNGX10,50201610-201909

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNGX10,50,ZYX10201610-201909

(J)

main90105-W0164iNGX10,50,ZYX10201610-201909

(L)

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNGX10,50201610-201909

(J)

main90105-W0164iNGX10,50201610-201909

(L)

42431DISC, REAR

main42431-78010iNGX10,50201610-201805

main42431-F4020iNGX10,50201805-201909

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-02270iNGX10201810-201909

main42450-F4010iNGX10201610-201810

sub42450-02270

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-02270iNGX10,ZYX10201810-201909

main42450-F4010iNGX10201610-201810

sub42450-02270

4804

8 parts on this diagram · 3 diagrams in section
