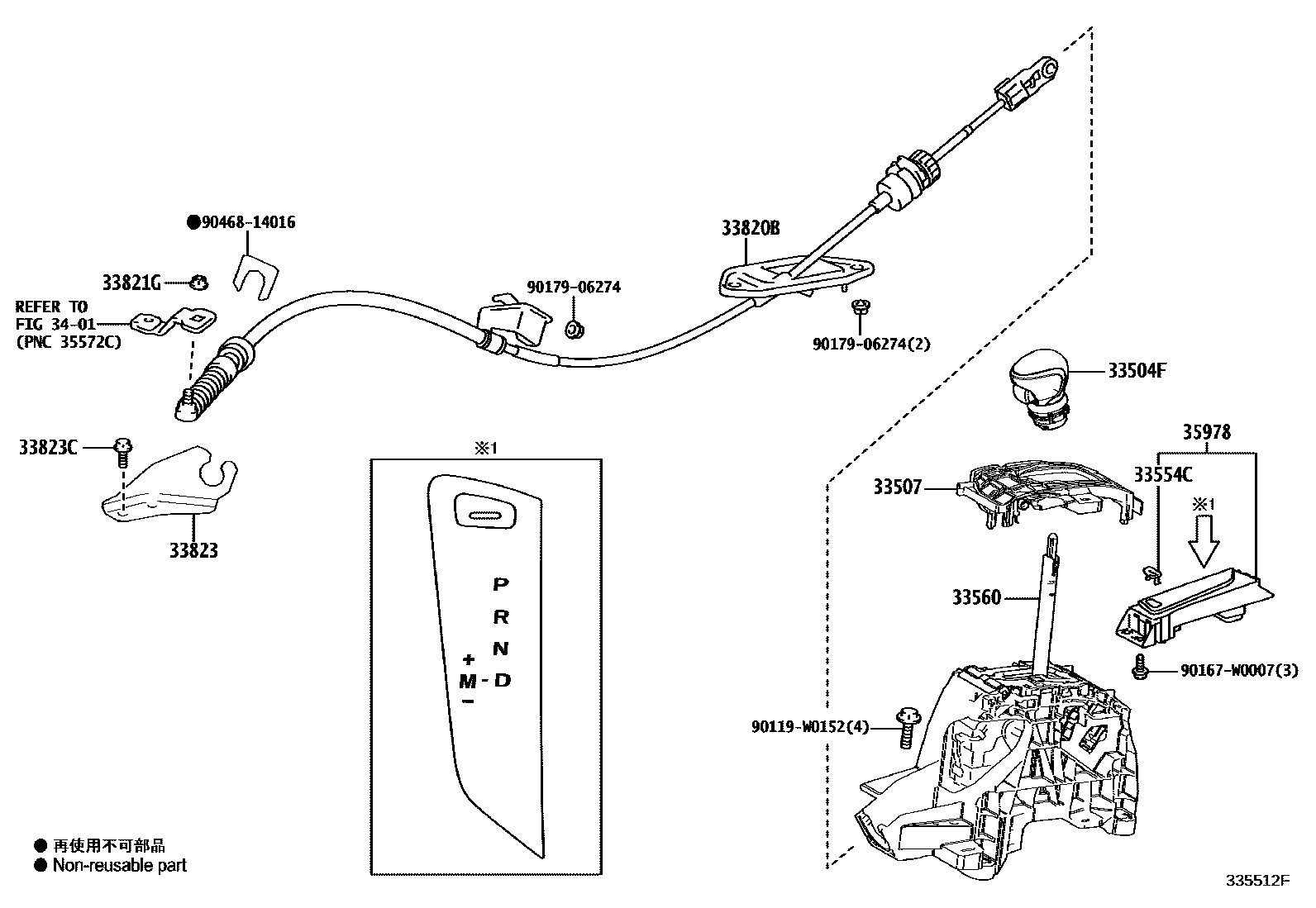

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05052-C0iNGX10..6F201909

BLACK,TRIM2#

main33504-10070-C2iNGX10,50..CVT201610-201804

BLACK,TRIM2#

main33504-10071-C2iNGX10,50,ZYX10..CVT..N201909

BLACK,TRIM2#

main33504-F4010-C2iNGX10..6F201610-201909

BLACK,TRIM2#

33507BRACKET SUB-ASSY, SHIFT LEVER HOUSING

main33507-F4010iNGX10,50..LHD..CVT201610-201909

main33507-F4020iNGX10,50..RHD..CVT201610-201909

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-F4010iNGX10,50,ZYX10..LHD..CVT201909

main33554-F4020iNGX10,50..RHD..CVT201610-201909

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-F4010iNGX10,50..LHD..CVT..N201909

main33560-F4020iNGX10..RHD..CVT..N201909

main33560-F4030iNGX10,50..LHD..CVT..E201610-201909

main33560-F4040iNGX10..RHD..E201909

main33560-F4050iZYX10201909

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-F4010iNGX10..6F201909

main33820-F4020iNGX10,50..CVT201610-201909

main33820-F4100iZYX10201909-202009

main33820-F4130iZYX10202010

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-W0031iNGX10,50..CVT201610-201909

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iNGX10,50..CVT201610-201909

main33823-F4010iZYX10201909

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iNGX10,50..CVT201610-201909

(J)

main90119-08C60×3iNGX10..6F201610-201909

(J)

main90119-W0016×2iNGX10,50,ZYX10..CVT201909

(L)

sub90119-08026

main90119-W0255×3iNGX10..6F201610-201909

(L)

3401

35978INDICATOR, SHIFT POSITION

main35978-F4010iNGX10,50..LHD..CVT201610-201909

main35978-F4020iNGX10..RHD..CVT201909

main35978-F4040iZYX10201909

90119W0152

main90119-W0152

90167W0007

main90167-W0007

9017906274

main90179-06274

9046814016

main90468-14016

14 parts on this diagram · 4 diagrams in section
